Disassembly Instruction - Icom IC-M400BB Service Manual

SECTION 3.

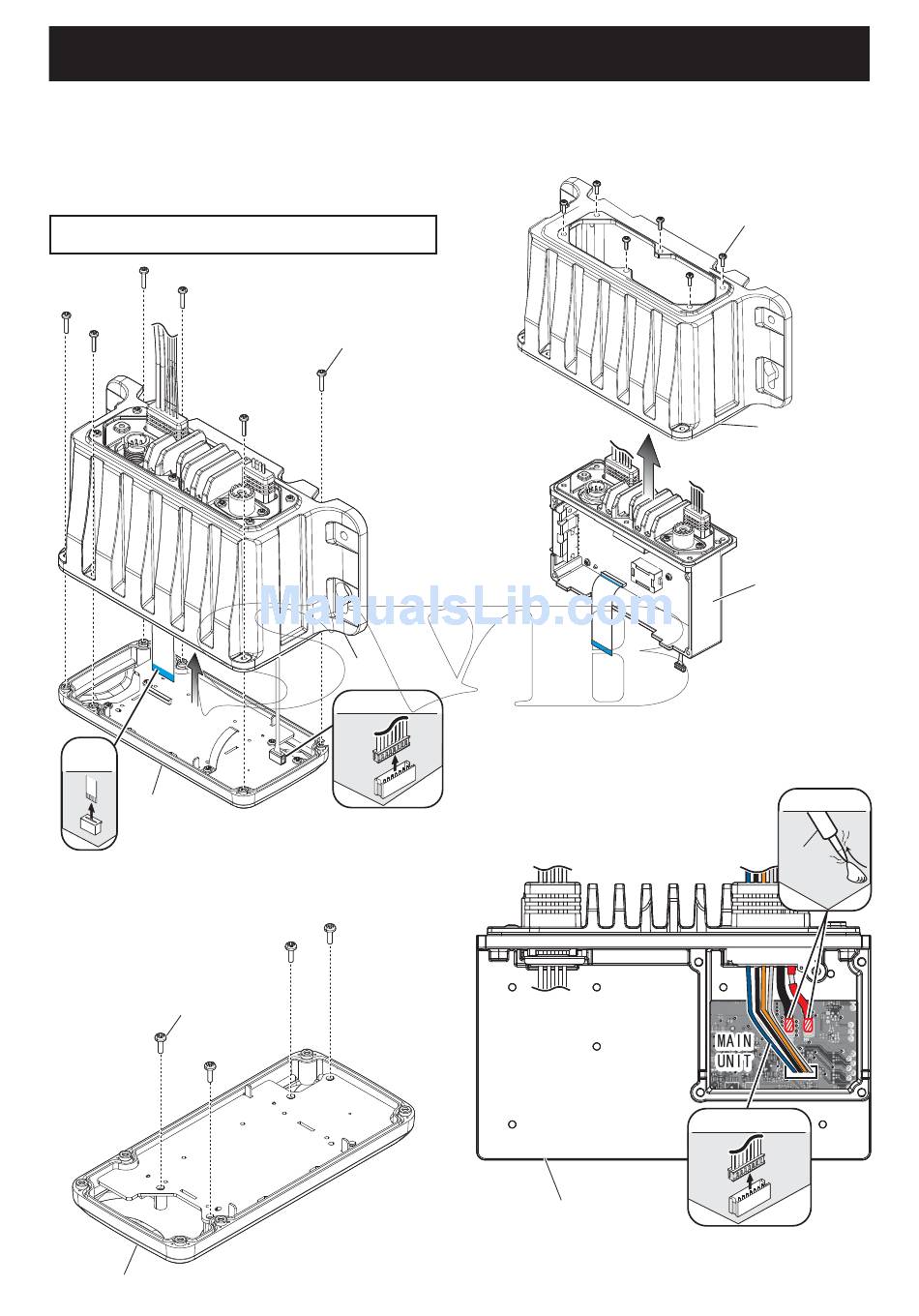

1. Removing the FRONT UNIT
1) Remove 6 screws from the rear.
2) Disconnect the fl at cable and inline cable from the
LOGIC UNIT.
3) Separate the front panel from the chassis assembly.
BE CAREFUL about the fl at cable and connector when
separating the front panel from the chassis assmbly.
FLAT
CABLE
Front panel
4) Remove 4 screws from the LOGIC UNIT.
5) Remove the LOGIC UNIT.
Screw x4
LOGIC UNIT
Front panel

DISASSEMBLY INSTRUCTION

Screw x6
Chassis assembly
INLINE CABLE
2. Removing the MAIN UNIT
1) Remove 6 screws from the rear.
2) Remove the case from the chassis.
3) Disconnect the inline cable from the bottom of MAIN
UNIT.
4) Unsolder 2 points at the power supply cable.
Chassis
3-1
Screw x6
Case
Chassis
UNSOLDER
(Bottom view)
Solder
remover
INLINE CABLE
(Continued on next page.)
