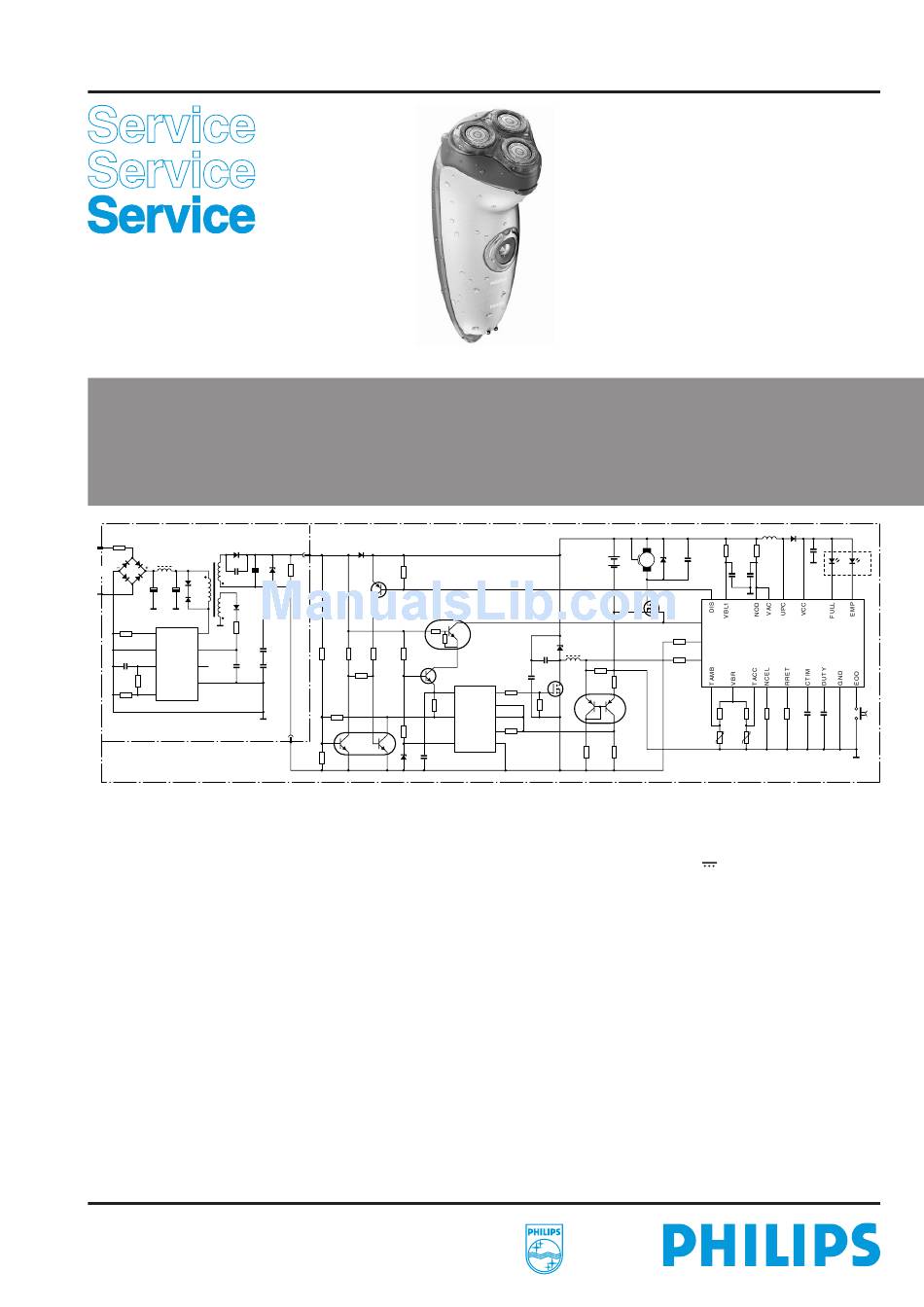

Philips CoolSkin HQ 6756 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
R1
D3
T1
L1
C7
Mains D4
C8
D1
C1 C2
D2
D5
IC3
R5
R2
1 8
SRC DRN
2 5
GND VAUX
C4
3 7
C3
CBT NC
6
R6
GND
R4
4
RREF
Power plug
Power module
TIPS FOR REPAIR
- Remove the shaving unit to prevent damage during repair.
- Remove the outer cover (item 27) and cartridge (item 28).
- Remove 5 A1 screws.
- After the cover (item 16) has been removed, it must be
checked if its sealing has not been damaged.
- The cover (item 16) contains a sticker that is permeable
to gas yet impermeable to water.
This sticker may not be removed under any circumstances.
- Unsolder the motor connector and remove the PCB.
- To replace the motor (item 10) or the driving unit
(item 6), screws B1 must be removed fi rst.
Then push the entire unit out of the housing (item 12) and
check if its sealing is damaged.
- The entire driving unit (item 6) is supplied as a single part
to guarantee optimal sealing of the gear shafts.
- A replacement of the pump button (item 22) is only
possible after removal of the hair chamber (item 5).
- To guarantee that the shaver is completely watertight, only
the original screws may be used.
- To charge the shaver only the original HQ600 power plug
may be used.
Published by Philips Domestic Appliances and Personal Care
4322 277 00701
02/09
D1
R3
R1
D6
TS3
TS4
C6
R1 R4 R6 R26
C5
R28
TS5
R5
R3
TS1
R23
D3 C2
R2

Rechargeable shaver

A
NiCd
2 x AA
D2
L1
C9
C1
MF1 R9
IC1
R11
R7
8 3
TS2
VCC G
6
R24
TH
4 2
R TR
R8
7
OIS
5 1
CV GND
R10 R12
TECHNICAL DATA
Input voltage
Power consumption
Motor voltage
Battery
Battery capacity
Charging indicator
Charging time
Charging current
Charging device
Shaving heads
Shaving emulsion
Mains shaving
SAP CODING
Printed in the Netherlands © Copyright reserved
HQ 6756/X
CoolSkin
L2 D6
R22 R25
PM D43 C8
C5
C3
5 17 2 16 15
MF2
4
SMOT
R13
1
MAINS
IC2
R14
12
RREG
8 7 6 18 19
R17
R16
R20 R21
R19 R18
: 100-240 V, 50/60 Hz
: max. 7 W
: 2.4 V
: 2x NiCd AA
: approx. 700 mAh
: 1x duoLED green / red
: charge - full / battery low
: approx. 1 hour
: 1000/40 mA temp. dependent
: HQ600 external transformer
: HQ167 - 4222 036 04250
: HQ160 shaving emulsion
: HQ161 fresh gel
: no
: HQ6756
Subject to modification
C4
D4a D4b
14 9 10
20 11 13 3
C6 C7
SK1
