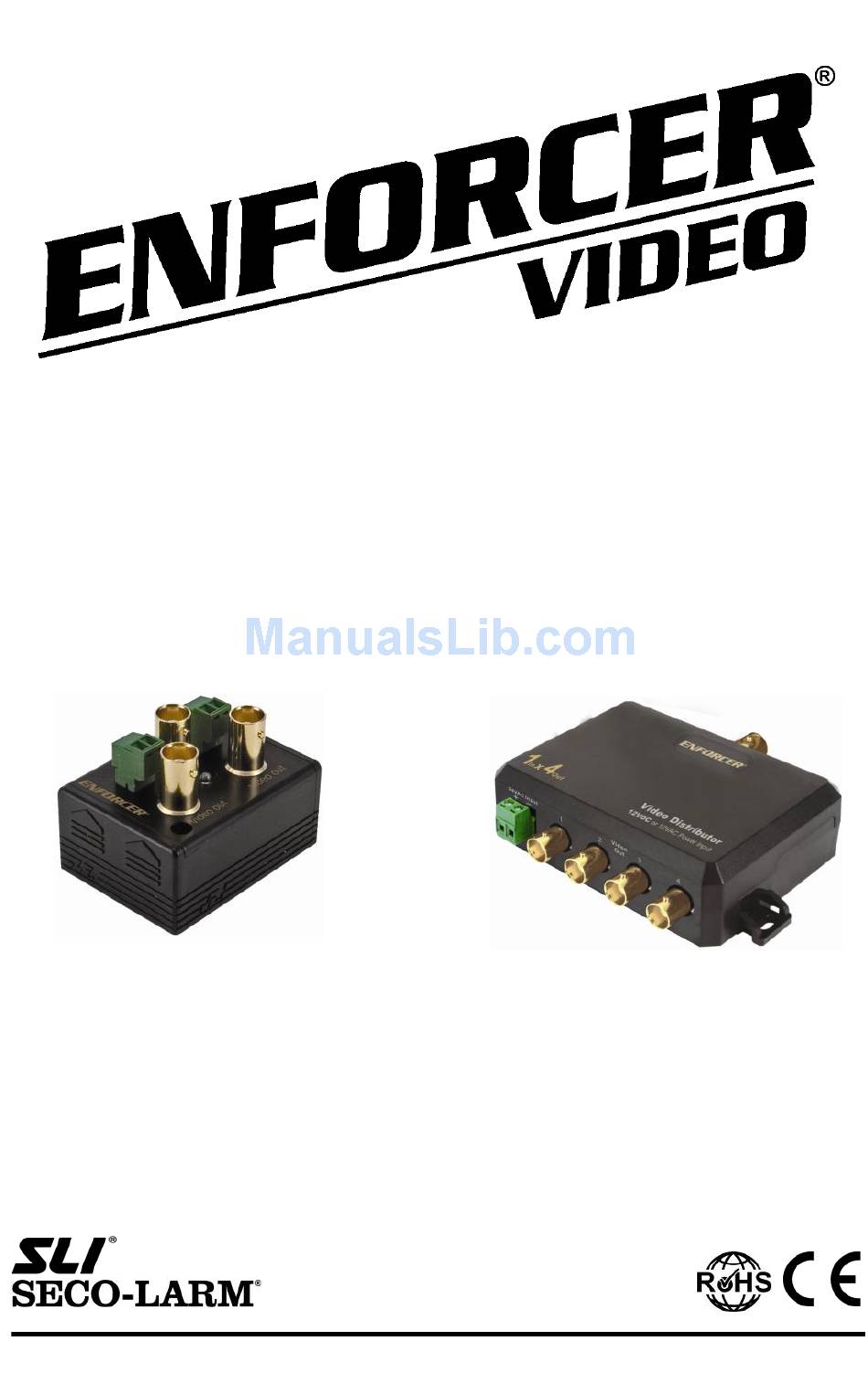

- Page 1 Video Distributor MANUAL VA-1102B-WQ VA-1104B-WQ 1 Video Input 1 Video Input 2 Video Outputs 4 Video Outputs...
- Page 2 Troubleshooting……………………. 4 Introduction: The ENFORCER VA-1102B-WQ and VA-1104B-WQ Video Distributors are the ideal way to distribute a single video signal to multiple locations. Using noise-rejection circuitry, the video distributors actively duplicate video signals to be sent to either 2 or 4 separate locations. The distributor buffers incoming signals before duplication for clean transmission.
-
Page 3: Sample Application
WARNING: DO NOT USE BOTH POWER INPUTS AT THE SAME TIME. THIS WILL DAMAGE THE UNIT AND VOID THE WARRANTY. Patented Interlocking Design: ENFORCER Video Distributors are designed to interlock with other SECO-LARM CCTV Accessories. This creates cleaner and more attractive installations, and greatly reduces the time needed for installation. -
Page 4: Troubleshooting
ENFORCER VIDEO DISTRIBUTOR Troubleshooting: Video Distributor does • Make sure the power, input and output cables are not function correctly connected firmly to the distributor. • Make sure the video input device is turned on. • Make sure the video output device is turned on.
