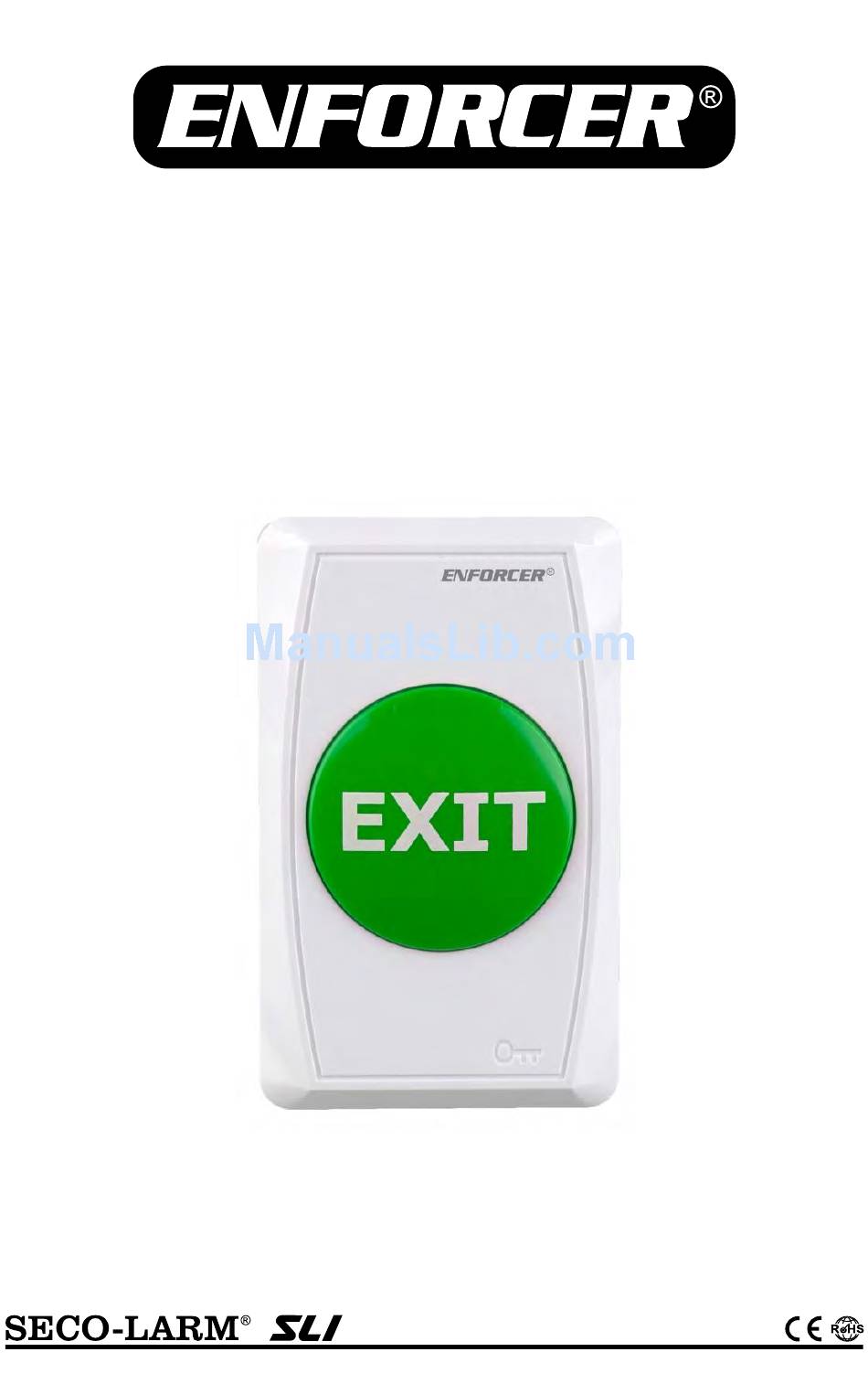

  • Page 1 SD-7286-GWQ Flush-Mount Request-to-Exit Plate Manual...

  • Page 2: Parts List

    ENFORCER Flush-Mount Request-to-Exit Plate Features: Parts List:  1x Front cover Large green 2” diameter pushbutton 1x Back plate  Flush mount, protrudes only ” (15mm) 2x Mounting screws  Aluminum back plate fits to single-gang box  ABS plastic front cover snaps to back plate ...

  • Page 3: Wiring Diagram

    2. An electromagnetic lock, (SK-1123-SQ) such as the E-941SA-600, is Electromagnetic Lock connected to normally closed (E-941SA-600Q) (N.C.) on the keypad’s relay. 3. Pressing the button on the SD-7286-GWQ will open the N.O. N.C. electromagnetic lock. N.C. N.O. SD-7286-GWQ 12 VDC Power Supply SECO-LARM U.S.A., Inc.
  • Page 4 ENFORCER Flush-Mount Request-to-Exit Plate Also Available from SECO-LARM: Single-Gang Mortise Cylinder Key Switch Indoor No-Touch Sensor SD-72081-6MQ SD-927PKC-NEQ Outdoor No-Touch Sensor with Mushroom Request-to-Exit Plate Manual Override SD-7201GC-PEQ SD-9263-KSVQ Illuminated Request-to-Exit Plate Piezoelectric Request-to-Exit Plate SD-7202GC-PEQ SD-6276-SS1Q For a complete listing of SECO-LARM products, please visit us online at www.seco-larm.com.
