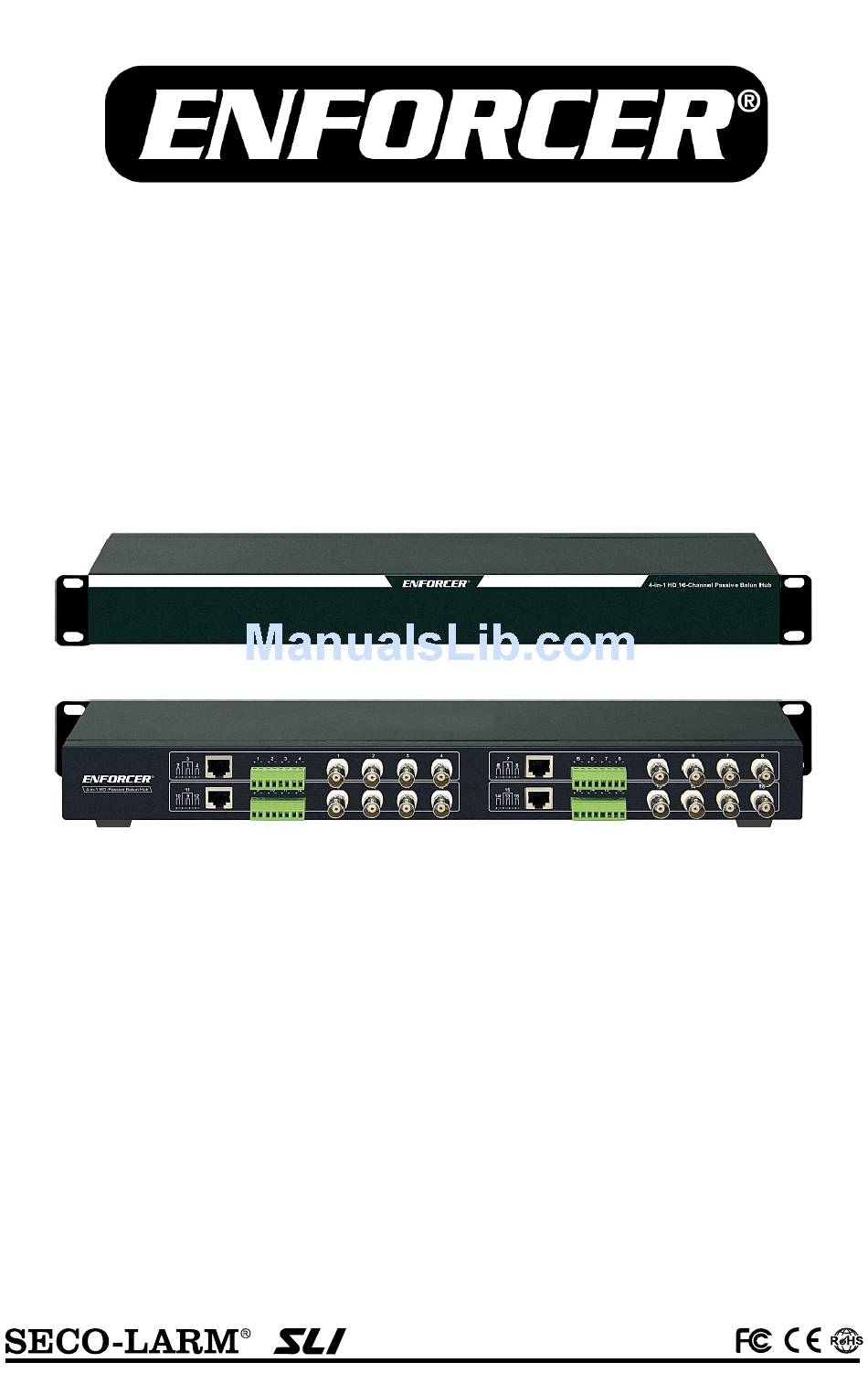

4-in-1 HD 16-Channel Passive Balun Hub
Features:
• 4-in-1 TVI / CVI / AHD / Analog video
up to 1080p
• Transmits up to 1,476ft (450m) depending
on format, resolution, and cable used
• PAL / NTSC / SECAM Compatible
• Built-in TVS surge protection
• Anti-static and wave filters
• Lightning protection – Grade III
EB-P116-60HQ
Manual
• 60dB Crosstalk and noise immunity
• Exceptional interference rejection
• Passive operation – No external
• Real-time transmission over low-cost
• Removable terminal blocks or RJ45 connectors
• Rack, wall, or desk mountable
®
power required
Cat5e/6 cable instead of costly coaxial cable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EB-P116-60HQ
Summary of Contents for ENFORCER EB-P116-60HQ
- Page 1 EB-P116-60HQ 4-in-1 HD 16-Channel Passive Balun Hub Manual Features: • 4-in-1 TVI / CVI / AHD / Analog video • 60dB Crosstalk and noise immunity up to 1080p • Exceptional interference rejection • Transmits up to 1,476ft (450m) depending • Passive operation – No external...
-
Page 2: Table Of Contents
Warranty ............ 8 Introduction: The ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub allows HD CCTV cameras to connect to a DVR, video switcher, or multiplexer via inexpensive Cat5e/6 unshielded twisted pair (UTP) cable. This balun hub is a great way to cut the cost and complexity of security networks by eliminating the need to run expensive coaxial cable to multiple HD CCTV cameras. -
Page 3: Specifications
ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub Specifications: 720p: 623ft (190m) / 1080p: 623ft (190m) 720p: 1,443ft (440m) / 1080p: 754ft (230m) Range* 720p: 1,049ft (320m) / 1080p: 820ft (250m) Analog B/W: 1,476ft (450m) / Color: 1,312ft (400m) Video format... -
Page 4: Mounting Methods
ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub Mounting Methods: Shelf or Table Mounting: 1. Units may be stacked one on top of the other, or with other equipment. NOTE: Do not stack more than 70-lbs on top of the passive video balun hub. -
Page 5: Installation
4. Connect the matching pair of wires on the other end of the cable to the desired terminal blocks on the back of the EB-P116-60HQ. NOTE: The ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub also has the option of connecting Cat5e/6 cables through RJ45 instead of terminal blocks. Please see "T568-B Wiring Specifications,"... -
Page 6: Connecting To A Dvr, Video Switcher, Or Multiplexer
ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub Connecting to a DVR, Video Switcher, or Multiplexer: 1. Run one coaxial cable (not included) from the Video Out on the EB-P116-60HQ to the corresponding Video In port of the DVR, video switcher, or multiplexer (not included). -
Page 7: Sample Applications
ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub Sample Applications (Continued): Connecting with RJ45 vs. Terminal Block HD Passive Video Transceiver Cat5e/6 Cable The RJ45 port is a quick, easy, and convenient way to connect a 4-camera setup to the main hub. -
Page 8: Warranty
ENFORCER 4-in-1 HD 16-Channel Passive Balun Hub Also Available from SECO-LARM ® 4-in-1 HD Video Baluns 4-in-1 HD Video Baluns 4-in-1 HD Video, Power, and with 6" pigtail Data Combiners EB-P304-01MQ shown EB-P101-01HQ EB-P101-20HQ Rack-mount and 16-channel versions available 4-in-1 HD Video...
