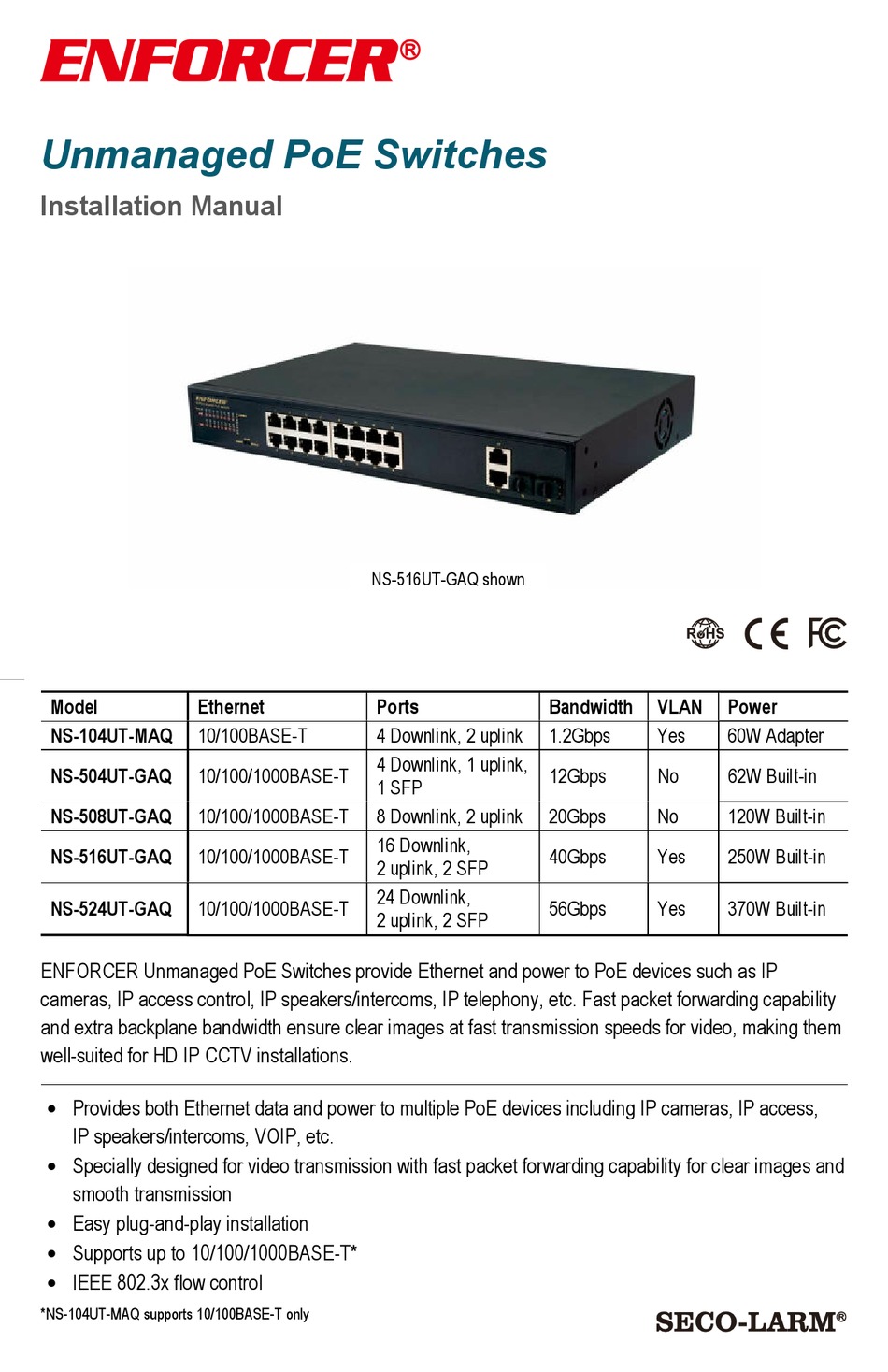

ENFORCER SECO-LARM NS-104UT-MAQ Installation Manual

Unmanaged PoE Switches
Installation Manual
Model Ethernet
NS-104UT-MAQ
10/100BASE-T
NS-504UT-GAQ
10/100/1000BASE-T
NS-508UT-GAQ
10/100/1000BASE-T
NS-516UT-GAQ 10/100/1000BASE-T
NS-524UT-GAQ
10/100/1000BASE-T
ENFORCER Unmanaged PoE Switches provide Ethernet and power to PoE devices such as IP
cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability
and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them
well-suited for HD IP CCTV installations
 Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access,
IP speakers/intercoms, VOIP, etc.
 Specially designed for video transmission with fast packet forwarding capability for clear images and
smooth transmission
 Easy plug-and-play installation
 Supports up to 10/100/1000BASE-T*
 IEEE 802.3x flow control
*NS-104UT-MAQ supports 10/100BASE-T only

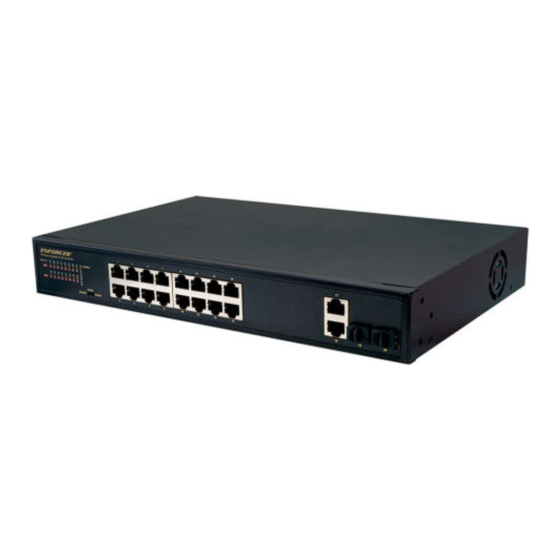

NS-516UT-GAQ shown
Ports
4 Downlink, 2 uplink
4 Downlink, 1 uplink,
1 SFP
8 Downlink, 2 uplink
16 Downlink,
2 uplink, 2 SFP
24 Downlink,
2 uplink, 2 SFP
.
Bandwidth VLAN
1.2Gbps Yes
12Gbps No
20Gbps No
40Gbps Yes
56Gbps Yes
Power
60W Adapter
62W Built-in
120W Built-in
250W Built-in
370W Built-in
