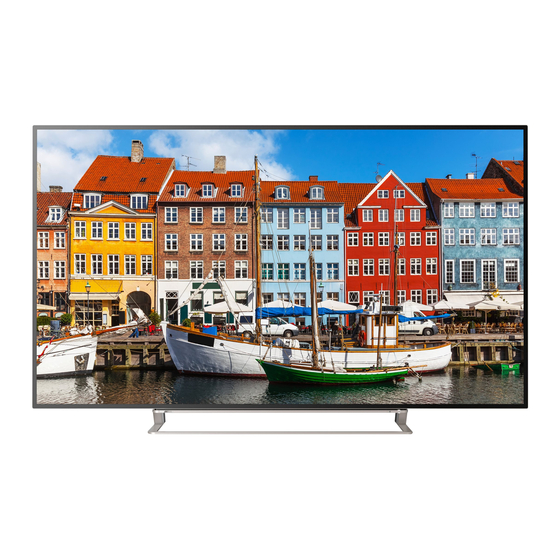

Toshiba 65L9400U User Manual

Toshiba 65L9400U User Manual

Ultra high definition 4k
Hide thumbs Also See for 65L9400U:
Table of Contents

Advertisement

Ultra High Definition 4K
Television User's Guide:
65L9400U
58L8400U
If you need assistance:
Toshiba's Support Web site
For more information, see
Owner's Record
The model number and serial number are on the back and side of your television.
Print out this page and write these numbers in the spaces below. Refer to these
numbers whenever you communicate with your Toshiba dealer about this Television.
Model name:
Serial number:
Register your Toshiba Television at register.toshiba.com
Note: To display a High Definition
picture, the TV must be receiving a
High Definition signal (such as an over-
the-air High Definition TV broadcast, a
High Definition digital cable program,
or a High Definition digital satellite
program). For details, contact your TV
antenna installer, cable provider, or
satellite provider.
support.toshiba.com
"Troubleshooting" on page 173
in this guide.
GMA300039011
9/14
