AEG LAVATHERM 86580IH User Manual

Aeg lavatherm 86580ih.
Hide thumbs


EN User manual


   Also See for AEG LAVATHERM 86580IH

   Related Manuals for AEG LAVATHERM 86580IH

   Summary of Contents for AEG LAVATHERM 86580IH

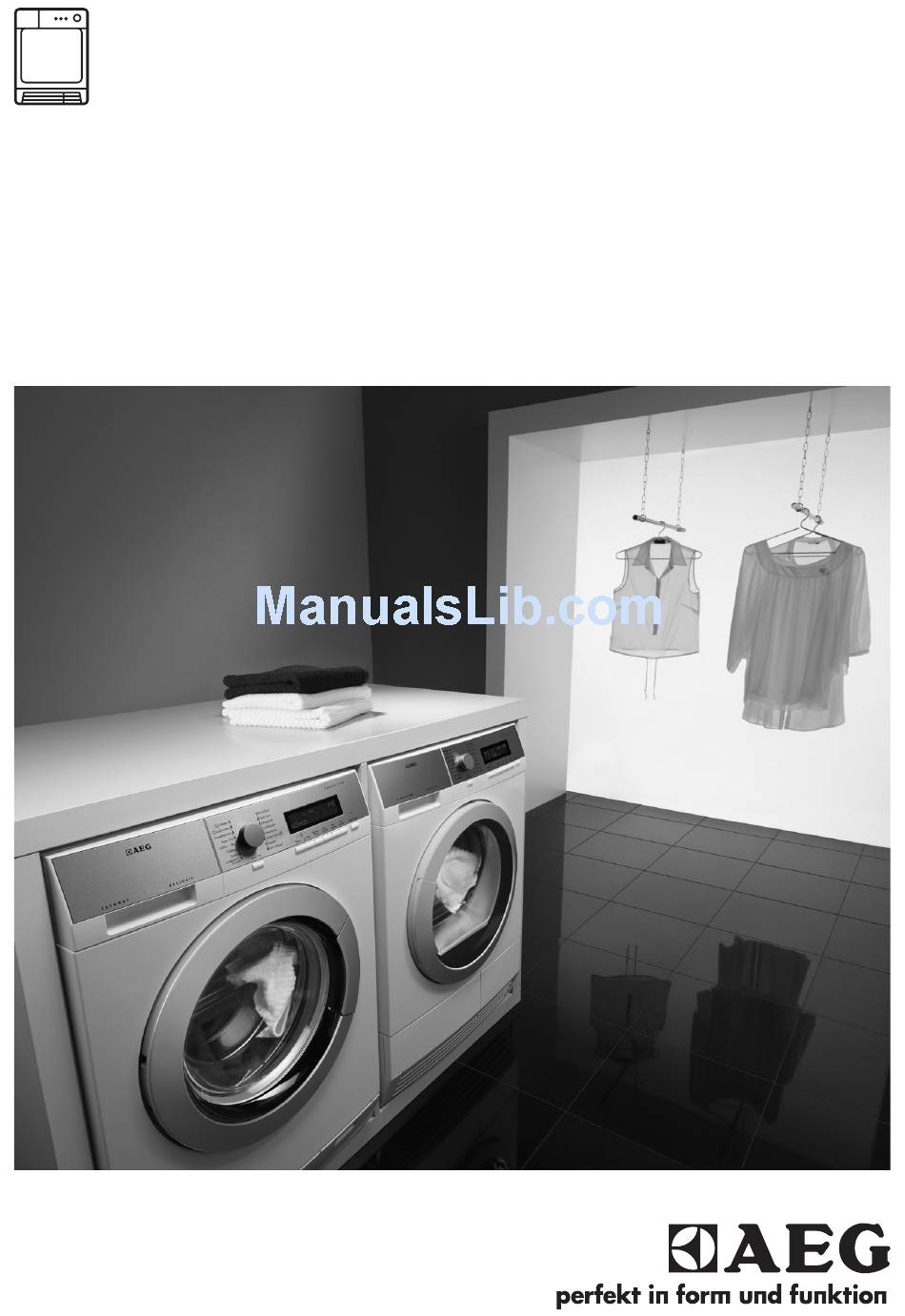

  • Page 1 EN User manual LAVATHERM 86580IH...
  • Page 2: Table Of Contents

    12. INSTALLATION ............22 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler –...
  • Page 3: Safety Instructions

    ENGLISH SAFETY INSTRUCTIONS Before the installation and use of the ap- where the appliance door can not be pliance, carefully read the supplied in- fully opened. structions. The manufacturer is not re- • Always be careful when you move the sponsible if an incorrect installation and appliance because it is heavy.
  • Page 4: Care And Cleaning

    • Do not use multi-plug adapters and • Before drying items that have been in extension cables. contact with substances such as cook- ing oil, acetone, alcohol , petrol, kero- • Make sure not to cause damage to the sene, spot removers, turpentine, wax- mains plug and to the mains cable.
  • Page 5: Product Description

    ENGLISH The type of light bulb or halogen • Remove the door catch to prevent lamp used for this appliance, is children and pets to get closed in the only for household appliances. appliance. Do not use it for house lighting. To replace the internal light, con- Compressor tact the Service.
  • Page 6: Accessories

    3. ACCESSORIES 3.1 Stacking kit in loop. Decrease the length of the hose if necessary. Read carefully the instructions supplied with the accessory. 3.3 Pedestal with the drawer Accessory name: SKP11, STA8, STA9 Available from your authorized vendor. Stacking kit can be used only with the Accessory name: PDSTP10.
  • Page 7: Control Panel

    ENGLISH Drying rack accessory let to dry safely in • soft toys the tumble dryer: • lingerie • sport shoes Read carefully the instructions supplied with the accessory. • wool 4. CONTROL PANEL The programme dial Programme indicators The display On/Off push button with Au- to Off function Start/Pause push button...
  • Page 8: Before First Use

    Symbol Description time drying function activated drain the water container indicator clean the primary filter indicator clean the heat exchanger filters indicator drying cycle phase indicator cooling cycle phase indicator crease guard cycle phase indicator delay start activated cycle time time programme interval (10 min.
  • Page 9 ENGLISH Fab- Load Pro- Available Properties grammes functions mark To gently dry cotton pieces of all except clothing with the noise decreased Extra Si- 8 kg Time to the minimum. The programme lent Drying can be used at night. To dry leisure clothing such as all except jeans, sweat-shirts of different ma- 8 kg...
  • Page 10 10 Fab- Load Pro- Available Properties grammes functions mark To dry outdoor pieces of clothing, all except technical, sports, pile fabrics, wa- Anticrease Active 2 kg terproof and breathable jackets, Wear shell jacket teamed with a remova- Time Drying ble fleece or inner insulation.
  • Page 11: Using The Appliance

    ENGLISH 7. USING THE APPLIANCE 7.1 Preparing the laundry Close the appliance door. CAUTION! Dry only the laundry applicable Do not lock the laundry in be- to dry in the tumble dryer. Make tween the appliance door and sure if the laundry is applicable rubber seal.
  • Page 12: Special Functions

    12 7.5 Setting a programme 7.7 The Dry Plus function This function helps to get the laundry more dried. There are 3 possible selec- tions: minimum - the default selection which is related to the programme. moderate — the selection to get the more dried laundry.
  • Page 13: Hints And Tips

    ENGLISH Set the drying programme and func- To activate the programme push the tions. button as on the illustration. The LED above the button illuminates in red col- Push the Delay start button again our. and again until the necessary time of the delay come into the view on the 7.15 Change a programme display (e.g.
  • Page 14 14 • Make sure that is good airflow in the To memorise the setting push at the appliance installation position. same time 2 buttons as are specified in the point 2. • Clean the primary filter after each dry- ing cycle.
  • Page 15: Care And Cleaning

    ENGLISH 9. CARE AND CLEANING 9.1 Cleaning the primary filter The filter collects the fluff. The fluff occurs while the cloths are dried in the tumble dryer. At the end of each cycle the indicator (clean the primary filter) is on to tell you that the primary filter must be cleaned.
  • Page 16: Water Container

    16 If necessary clean the filter with warm water using a brush. Close the filter. Remove fluff from the filter socket. For this a vacuum cleaner can be used. Put the filter inside the filter socket. CAUTION! If the condensed water container is full,...
  • Page 17 ENGLISH The condensed water can be The frequency to clean the filters is rela- used as distilled water, e.g. for ted to the laundry type and its quantity. steam ironing. If necessary filter If you dry with the maximum load, clean the condensed water (e.g.
  • Page 18 18 Lift the primary filter. Hold the heat exchanger filter and pull it out from the bottom compartment. Push the hook to open the filter. Use a moist hand to clean the filter. If necessary clean the filter with warm water using a brush.
  • Page 19: Cleaning The Drum

    ENGLISH Clean the small filter from the base If necessary, one time for each 6 months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner. Put the small filter and heat ex- changer filter back. Close the heat exchanger cover.
  • Page 20: Cleaning Control Panel

    20 9.5 Cleaning the control panel CAUTION! Do not use furniture cleaning and housing agents or cleaning agents which can cause corrosion to clean the Use a standard neutral soap detergent appliance. to clean the control panel and housing.
  • Page 21: Technical Information

    ENGLISH Possible cause Remedy Problem You try to change the pro- Turn the tumble dryer off and gramme or the function after on. Make the new selection. Err (Error) the start of the cycle. on the dis- The function you try to activate play.
  • Page 22: Installation

    22 height x width x depth 850 x 600 x 600 mm (maximal 640 mm) drum volume 118 l maximum depth with the load door 1090 mm opened maximum width with the load door 950 mm opened adjustable height...
  • Page 23: Environment Concerns

    ENGLISH It is possible to adjust the height of the 600 mm tumble dryer. To do that adjust the feet (see picture). 600 mm > 850 mm 15mm 12.3 The load door reversal The load door can be installed by the 12.2 Installation under a user in the opposite side.
  • Page 24
