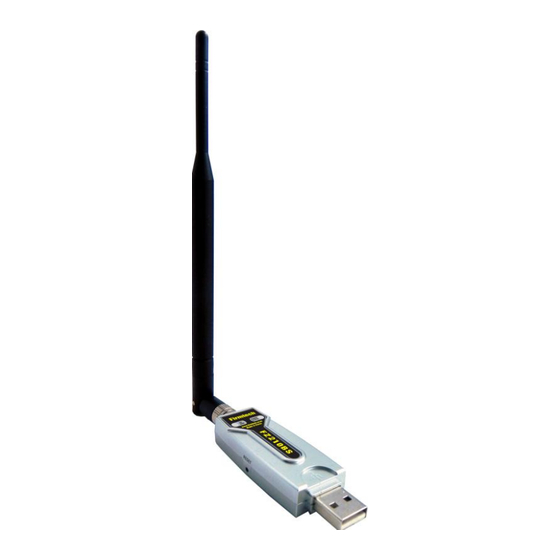

IEEE 802.15.4 Wireless
USB Serial Adapter
Model name: BM1001
User Manual ver 3.1
ABOUT FZ210BS
IEEE 802.15.4 Support
USB Interface
4dBi Dipole Antenna Provided
AT Command provided

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TinyBee FZ210BS and is the answer not in the manual?

Questions and answers

Related Manuals for Firmtech TinyBee FZ210BS

Summary of Contents for Firmtech TinyBee FZ210BS

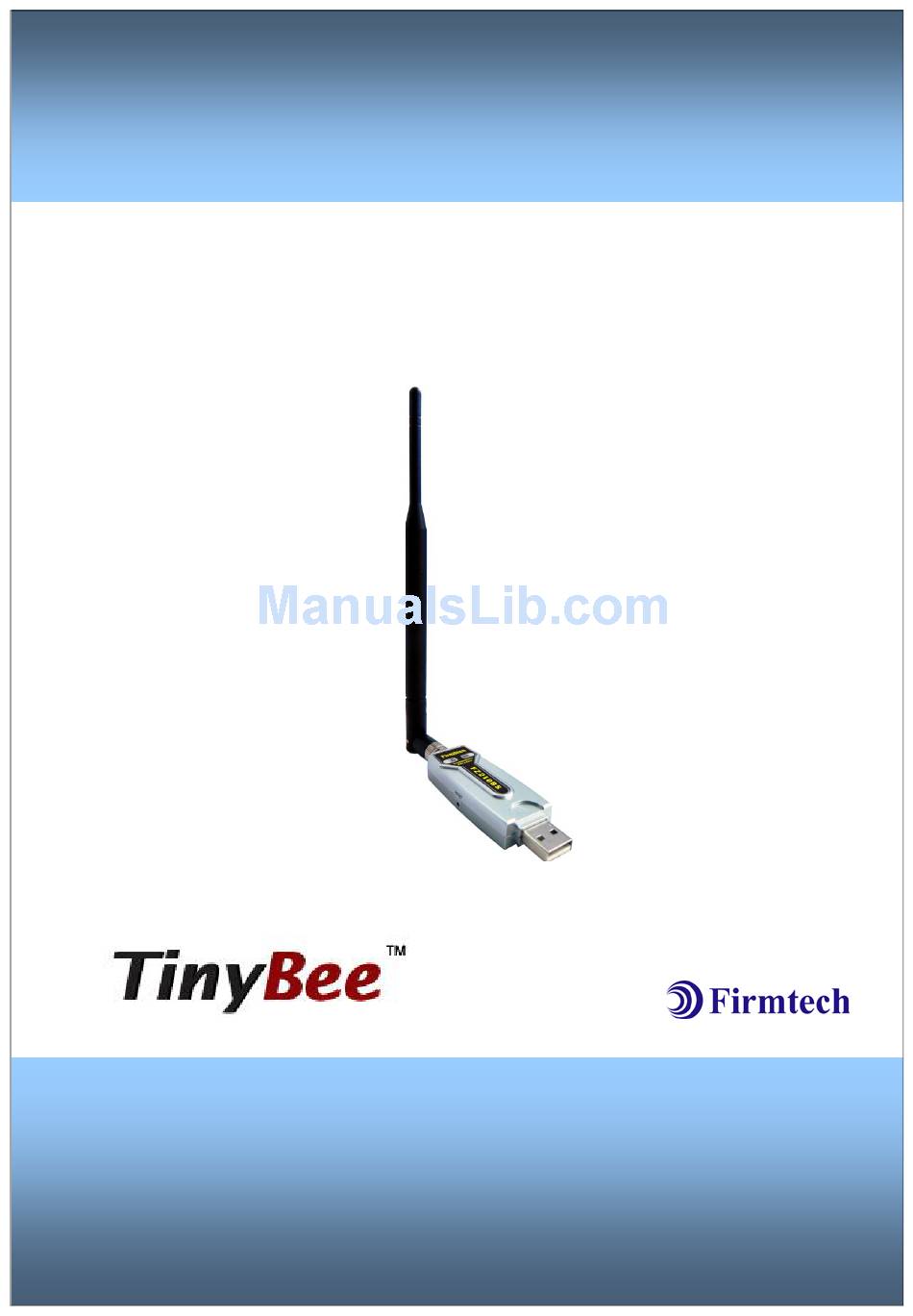

  • Page 1 IEEE 802.15.4 Wireless USB Serial Adapter Model name: BM1001 User Manual ver 3.1 ABOUT FZ210BS IEEE 802.15.4 Support USB Interface 4dBi Dipole Antenna Provided AT Command provided...

  • Page 2: Important Note

    Any part or whole of products or operation description shall not be copied, reproduced, translated, nor transformed into readable form by electronic device or machines, without prior consent in writing by FIRMTECH Co., Ltd. There might be some misprinting or technical faults in the products and operation description which are subject to change without prior notice.
  • Page 3 FZ210BS Manual VERSION 0.1.0 FIRMTECH Co., Ltd. 2005 Homepage : www.firmtech.co.kr Marketing Inquiry : contact@firmtech.co.kr Tel : 82-31-719-4812 Fax : 82-31-719-4834...
  • Page 4 FZ210BS Manual VERSION 0.1.0 IEEE 802.15.4? 1. Features of IEEE 802.15.4 1) Wireless Personal Area Networks, WPAN : efficient management is possible by configuring home appliances, light control, and office appliances to short range wireless network,. 2) Frequency in Use: To use ISM (Industrial, Scientific, Medical) band which does not require any permissions to use.
  • Page 5 FZ210BS Manual VERSION 0.1.0 Introduction MAC networks using IEEE 802.15.4 can be set up by using the FZ210BS, serial data communication can also be enabled by using a USB interface. The FZ210BS can also be used interlocking with FZ110BS/FZ760BS/FZ760BC. < Major features of FZ210BS> 1.

  • Page 6: Table Of Contents

    FZ210BS Manual VERSION 0.1.0 ■ List of contents IMPORTANT NOTE: ..............................2 FCC RF RADIATION EXPOSURE STATEMENT: ......................2 1. PRODUCT COMPONENTS ............................7 2. PRODUCT APPEARANCE............................8 3. USB INTERFACE ..............................9 4. DIP SWITCH & INTERFACE SOCKET ........................10 5. LED INDICATION / RESET SWITCH ........................11 6.

  • Page 7: Product Components

    FZ210BS Manual VERSION 0.1.0 1. Product components Model Name Pictures Q’ty FZ210BS FBA004DA ※ If you find any of above components is defective, or not included in the package, please contact the seller you purchased.

  • Page 8: Product Appearance

    FZ210BS Manual VERSION 0.1.0 2. Product Appearance < Figure 2 Details and Dimension of FZ210BS > SMA Connector - Connector to attach the antenna. Power LED – shows the power status. Status LED – shows the action status. OK LED - shows the action status. ERROR LED - shows the action status.

  • Page 9: Usb Interface

    FZ210BS Manual VERSION 0.1.0 3. USB Interface ※ The FZ210BS is connected to a virtual serial port using an USB. ※ As the FZ210BS uses a virtual COM Port, the virtual COM Port should be operating normally to be used in the HOST (PC). Signal Name Description STATUS (DCD)

  • Page 10: Dip Switch & Interface Socket

    FZ210BS Manual VERSION 0.1.0 4. Dip Switch & Interface Socket Basic Function Setting Not in use Not in use Select firmware Firmware download mode Basic operation mode download Select the environment Environment setting mode Basic operation mode setting mode <Table 4-1 Features of Dip Switch > Port Description VCC(3.3V)

  • Page 11: Led Indication / Reset Switch

    FZ210BS Manual VERSION 0.1.0 5. LED Indication / Reset Switch LED Type State Description Power LED Power input Red Power LED is turned on. When the device is operating for general functions, the Status LED blinks Confirming of the at the interval of one second. device’s operation When the device is operated for a Status LED...

  • Page 12: Product Performance

    FZ210BS Manual VERSION 0.1.0 6. Product Performance List Specification Wireless Spec. IEEE 802.15.4 Support Communication Distance 120 M Frequency Range 2.4 GHz ISM Band Sensitivity -98 dBm Transmit Power 6 dBm Size 23.00 mm X 56.00 mm X 10.50 mm Input Power Current Consumption 60 mA (Max)

  • Page 13: Set Value Of Product

    FZ210BS Manual VERSION 0.1.0 8. Set value of Product List Initial set value Device Version FZx10 Vx.x.x Device Ext Address 001551xxxxxxxxxx Device Pan ID 1234 Device Channel Device Transmit Power UART (baud rate, data bit, parity bit, stop bit) 38400 (8, N, 1 fixed) KEY Option 1(Enable) ADC Option...

  • Page 14: Uses Guide

    FZ210BS Manual VERSION 0.1.0 9. Uses Guide Basic data sent by using the FZ210BS is serial (USB) data. Since the FZ210BS is exclusively used for serial data transmission or reception, smooth transmission or reception of KEY/ADC/GPIO data may not be achieved, but input or output of KEY/ADC/GPIO data can be done by using the socket inside the rubber cover at the back side of the FZ210BS.
  • Page 15 FZ210BS Manual VERSION 0.1.0 When a window for Connection target comes up, select COM ports connected to FZ210BS, and click the OK button. Select each blank as below “Bit/sec: 38400, data Bit: 8, Parity: None, Stop Bit: 1, Flow Control: None”, and click the OK button.

  • Page 16: Data Receipt

    FZ210BS Manual VERSION 0.1.0 (3) Reset the FZ210BS. When the FZ210BS operates normally, it outputs “FZx10 START OK” message. (4) Input “1234567890” into Hyper Terminal. The “1234567890” entered by users is not seen on the hyper terminal. (5) FZ210BS transmits the serial data to its target device. ※...
  • Page 17 FZ210BS Manual VERSION 0.1.0 (1) Connect FZ210BS(Device 2) to PC, and turn the power of FZ210BS ON. (2) Execute Hyper Terminal. Select [Start][All Programs][Accessories][Communication][Hyper Terminal] in order, and then a window for Connection Set-up comes up. Put a name in the name blank, and click the OK button. When a window for Connection target comes up, select COM ports connected to FZ210BS, and click the OK button.
  • Page 18 FZ210BS Manual VERSION 0.1.0 Select each blank as below “Bit/sec: 38400, data Bit: 8, Parity: None, Stop Bit: 1, Flow Control: None”, and click the OK button. Hyper Terminal is executed. (3) Reset the FZ210BS. When the FZ210BS operates normally, it outputs “FZx10 START OK”...

  • Page 19: Fz210Bs Management Tip

    FZ210BS Manual VERSION 0.1.0 10. FZ210BS Management TIP Without additional setting, all FZ210BS around receives data if data is inputted after the power of device is approved. A lot of traffic in network can cause trouble with data transmission/receipt. If big size of data is transmitted successively or in short time, traffic increase. Extensive care is required of the size of data and time space for transmission.
  • Page 20 FZ210BS Manual VERSION 0.1.0 ※ References Appendix_0: details of FZxx0_USB Driver Appendix_1: details of FZx10_low power_ADC_KEY_GPIO Appendix_2: details of FZx10_AT Command Appendix_3: details of FZx10_Environment Setup Appendix_4: details of FZx10_Bridge Mode Appendix_5: details of FZx10_Location mode Appendix_6: details of FZx10_Device name Transmission Appendix_7: details of FZx10_Local Address &...
