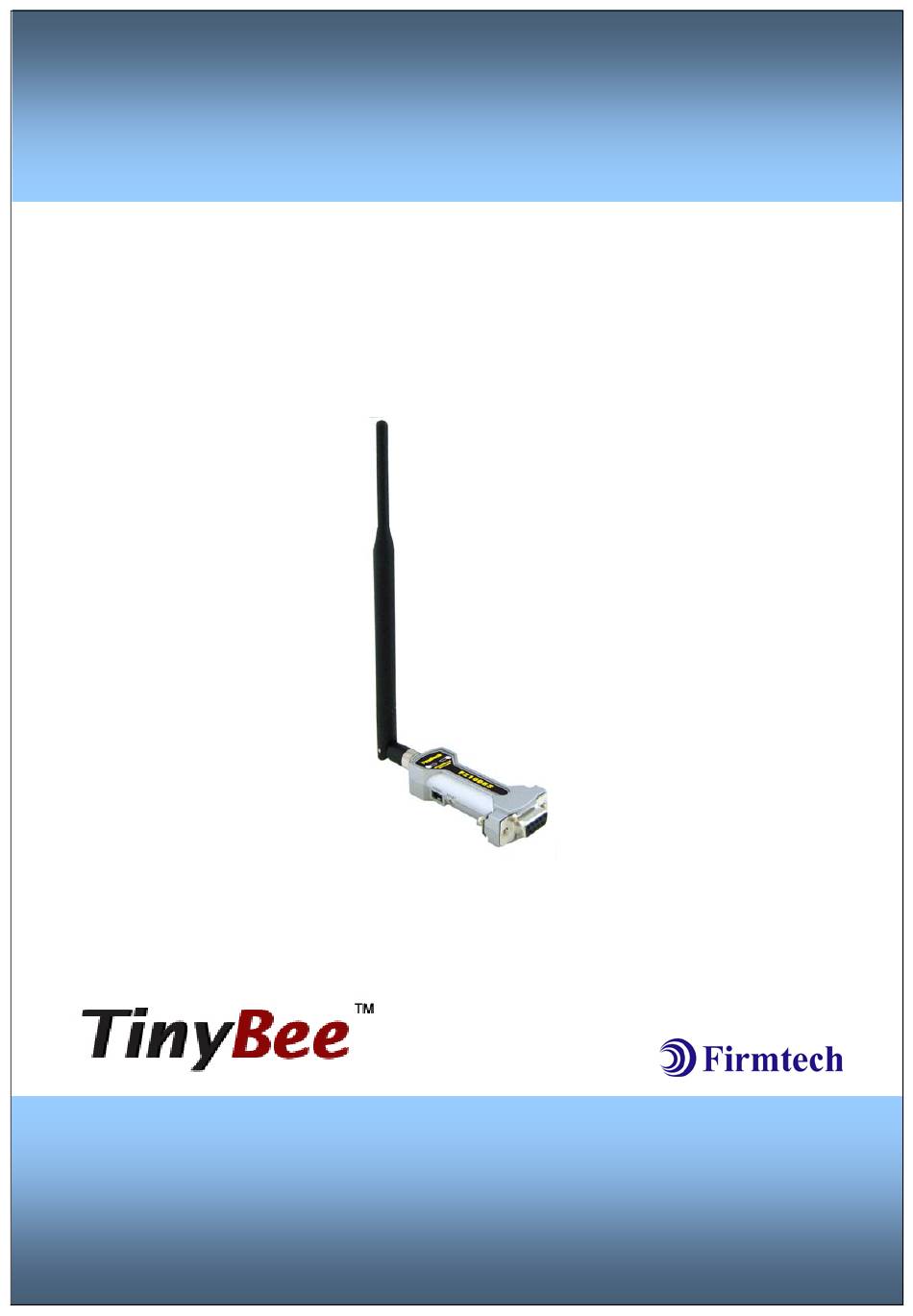

Zigbee RS232
Serial Adapter
ABOUT FZ100BS
Zigbee 2006 Support
RS232 Interface
4dBi Dipole Antenna Provided
AT Command provided

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TinyBee FZ100BS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firmtech TinyBee FZ100BS

Summary of Contents for Firmtech TinyBee FZ100BS

  • Page 1 Zigbee RS232 Serial Adapter ABOUT FZ100BS Zigbee 2006 Support RS232 Interface 4dBi Dipole Antenna Provided AT Command provided...

  • Page 2: Important Note

    Any part or whole of products or operation description shall not be copied, reproduced, translated, nor transformed into readable form by electronic device or machines, without prior consent in writing by FIRMTECH Co., Ltd. There might be some misprinting or technical faults in the products and operation description which are subject to change without prior notice.
  • Page 3 FZ100BS Manual VERSION 0.1.0 FIRMTECH Co., Ltd. 2005 Room B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 462-120 Homepage : www.firmtech.co.kr Marketing Inquiry : contact@firmtech.co.kr Technical Support Inquiry : techsupport@firmtech.co.kr Tel : 82-31-719-4812 Fax : 82-31-719-4834...
  • Page 4 FZ100BS Manual VERSION 0.1.0 What is zigbee? 1. Features of Zigbee 1) Objectives of Zigbee : To realize Personal Wireless Communication for short distance and slow speed with Low Power consumption and Low Cost, which is based on IEEE 802.15.4 Standard. 2) Frequency in Use : To use ISM(Industrial, Scientific, Medical) Band which does not require any permission to use.
  • Page 5 FZ100BS Manual VERSION 0.1.0 2. Zigbee operation < Zigbee Mesh network configuration > ) Coordinator configures the Zigbee Network. Coordinator communicates with Router and En d Device. 2) Router expands Network by connecting Coordinator or other Routers. 3) End Device participates in Zigbee network and communicates with Router or Coordinator.
  • Page 6 ※ We request the new users of FZ100BS to read the information on this description carefully before they start to use the products. ※ Please consult Firmtech.co., Ltd if you want to configure Zigbee Network using more than 30 devices of FZ100BS...

  • Page 7: Table Of Contents

    FZ100BS Manual VERSION 0.1.0 ■ List of contents IMPORTANT NOTE: ............................... 2 FCC RF RADIATION EXPOSURE STATEMENT:...................... 2 1. PRELIMINARY USAGE OF PRODUCT........................9 1-1. P RODUCT COMPONENTS ............................9 1-2. FZ100BS O VERVIEW ............................10 2. PRODUCT PERFORMANCE ............................ 15 3.
  • Page 8 FZ100BS Manual VERSION 0.1.0 9-5. RESET OPTION ..............................34...

  • Page 9: Preliminary Usage Of Product

    FZ100BS Manual VERSION 0.1.0 1. Preliminary usage of product 1-1. Product components Model Name Pictures Q’ty FZ100BS FBA-UPC WE-2405TO ※ If you find any of above components is defective, or not included in the package, please contact the seller you purchased.

  • Page 10: Fz100Bs Overview

    FZ100BS Manual VERSION 0.1.0 1-2. FZ100BS Overview (1) To configure the Zigbee network, set each device (FZ100BS) to Coordinator, Router and End Device. The initial factory set value of FZ100BS is set to Router. (2) Do not use Broadcast accompanied by a lot of traffic in the Zigbee network unless it is vital to be used.
  • Page 11 FZ100BS Manual VERSION 0.1.0 (4) Coordinator and Router can configure child nodes up to 8 End Devices cannot configure Child nodes Setting FZ100BS to End Devices should be prior to the Zigbee Network Configuration. If you want to change the device type of FZ100BS from Router to End Device in the Zigbee Network, you had better re-configure the whole Zigbee Network in advance.
  • Page 12 FZ100BS Manual VERSION 0.1.0 (6) FZ100BS can configure the Zigbee Network up to 4 Depth. (7) FZ100BS configures the Zigbee Network with one Coordinator. (8) FZ100BS can transmit data by multipath because it supports mesh network. Contribute the Zigbee Network which has multipath. (9) If you input Serial data into FZ100BS, It transmits the Serial data to its target device.
  • Page 13 FZ100BS Manual VERSION 0.1.0 (12) FZ100BS has an IEEE ADDRESS and a NETWORK ADDRESS. 64 Bit IEEE ADDRESS is a physical address of FZ100BS. Every device has its own IEEE ADDRESS and the IEEE ADDRESS is not changeable. FZ100BS set target devices by using IEEE ADDRESS. In conclusion, “target device set-up”...
  • Page 14 FZ100BS Manual VERSION 0.1.0 ※ < Routing table update of FZ100BS > Routing table is assigned to each FZ100BS after the Zigbee Network Configuration. Below is the Zigbee network status when data is transmitted from Router2 to Router1 to Coordinator. Data is input into Router2, the Router2 transmits the data to Router1, and then the Router1 transmits the data to Coordinator.

  • Page 15: Product Performance

    FZ100BS Manual VERSION 0.1.0 2. Product Performance Part Specification Zigbee Spec. Zigbee 2006 Specification Support Communication Distance 120 M Frequency Range 2.4 GHz ISM Band Sensitivity -98 dBm Transmit Power 9.89 dBm Size 31 (Width) X 68 (Length) X 16 (Height) Input Power DC 5V Current Consumption...

  • Page 16: Fz100Bs Image & Dimension

    FZ100BS Manual VERSION 0.1.0 4. FZ100BS Image & Dimension 5. Serial Interface Pin No Signal Name Description Direction STATUS (DCD) Status Indication Output Transfer Data(Data Output) Output Received Data(Data Input) Input - (DSR) Ground ERROR (DTR) Status Indication Output - (CTS) OK (RTS) Status Indication Output...

  • Page 17: Set Value Of Product

    Debug Message Option 0(Disable) Battery Low Option 0(Disable) Quick Low Power Entry 0(Disable) To change the set values of FZ100BS, use PC Software (Window HyperTerminal, Firmtech configuration program) after connecting FZ100BS to PC working with AT command. Note: Please, refer contents “7.

  • Page 18: Zigbee Network Configuration

    FZ100BS Manual VERSION 0.1.0 7. Zigbee network Configuration To configure the Zigbee Network, set up a FZ100BS DEVICE. The following is a procedure for FZ100BS Set-up using Serial communication (HyperTerminal) Program. The signal speed of FZ100BS is basically 115200bps. 7-1. Serial Communication (Hyper Terminal) Program Execute Select [Start][All Programs][Accessories][Communication][Hyper Terminal] in order, and then a window for Connection Set-up comes up.
  • Page 19 FZ100BS Manual VERSION 0.1.0 Select each blank as below “Bit/sec: 115200, data Bit: 8, Parity: None, Stop Bit: 1, Flow Control: None”, and click the OK button. Hyper Terminal is executed. Hyper Terminal simply does not show any letters inputted. If you check on “Display the letters inputted on the Terminal”...

  • Page 20: Set-Up Fz100Bs Device Type

    FZ100BS Manual VERSION 0.1.0 7-2. Set-up FZ100BS Device Type Zigbee Device is classified as Coordinator, Router, and End Device by objective of its operation. There should be Coordinator in the Zigbee Network. A Coordinator should exist in a Zigbee Network. Coordinator manages the Network in the Zigbee Network.

  • Page 21: Fz100Bs End Device Set-Up

    FZ100BS Manual VERSION 0.1.0 7-2-1. FZ100BS End Device Set-up (1) The Initial set value of FZ100BS is ROUTER. (2) Connect Device to PC, execute Hyper Terminal, and approve the power to the Device. “ROUTER START ERROR” is output through Serial port. “ROUTER START”...

  • Page 22: Fz100Bs Router Set-Up

    FZ100BS Manual VERSION 0.1.0 7-2-2. FZ100BS Router Set-up (1) The initial set value of Device is ROUTER. ※ The initial set value of FZ100BS is ROUTER. The following is a procedure of purposely setting Device to Router by using AT-Command. However, Device originally operates as Router without intentional setting.

  • Page 23: Fz100Bs Coordinator Set-Up

    FZ100BS Manual VERSION 0.1.0 7-2-3. FZ100BS Coordinator set-up (1) The initial set value of FZ100BS is ROUTER. (2) Connect FZ100BS to PC, execute Hyper Terminal Program, and approve the power to the FZ100BS. “ROUTER START ERROR” is output through Serial port. “ROUTER START”...

  • Page 24: The Zigbee Network Configuration Using Fz100Bs

    FZ100BS Manual VERSION 0.1.0 7-3. The Zigbee Network Configuration using FZ100BS Try to configure the Zigbee Network after setting the Type for each Device. 7-3-1. The Zigbee Network configuration Coordinator leads the Zigbee Network Configuration. Coordinator manages the Zigbee Network. (1) Turn the power of the Device set to Coordinator ON.

  • Page 25: Zigbee Network Participation

    FZ100BS Manual VERSION 0.1.0 7-3-3. Zigbee Network Participation End Device participates in the Zigbee Network. End Device performs data transmission in the Zigbee Network. End Device supports Low power consumption mode. (1) Turn the Power of the Device set to End Device ON. (2) “END START OK”...

  • Page 26: Fz100Bs Data Transmission

    FZ100BS Manual VERSION 0.1.0 8. FZ100BS data transmission Data transmission is possible by Devices which set its target devices after The Zigbee Network Configuration. 8-1. Target device set-up To transmit Data, setting a target device, which is supposed to receive the Data, is required in terms of the Zigbee Network using FZ100BS.

  • Page 27: Target Device Set-Up

    FZ100BS Manual VERSION 0.1.0 8-1-2. Target device set-up Set a target device with the IEEE ADDRESS that is mentioned on the previous page. (1) Turn the power of FZ100BS ON. (2) FZ100BS outputs a message “TARGET NON”, which means that its target device is not set. (3) Input “+++”...

  • Page 28: Data Transmission

    FZ100BS Manual VERSION 0.1.0 8-2. data transmission Data transmission is done in the Zigbee Network. Data is transmitted to the target device “001551000000000B” that is set on the previous page. IEEE ADDRESS of the Device which is supposed to transmit the data is 0015510000000005. (1) Turn the power of FZ100BS set to Coordinator ON.
  • Page 29 FZ100BS Manual VERSION 0.1.0 ※ Input Serial data of FZ100BS ※ After inputting the serial data, press “Enter” key. ※ 53 byte including “Enter” key is a maximum length of Serial data can be transmitted by FZ100BS ※ The Serial data sent from a Device is output through Serial port of its target device. ※...

  • Page 30: Fz100Bs Management Tip

    FZ100BS Manual VERSION 0.1.0 9. FZ100BS Management TIP Refer to the following to configure Zigbee Network properly in terms of data transmission and Controls. 9-1. FZ100BS Device Type Set-up (1) End Device Set-up Set FZ100BS to End Device before Coordinator and Router is set. (AT+SETEND) Turn the power of the FZ100BS OFF.

  • Page 31: Set-Up] Target Device & Traffic

    FZ100BS Manual VERSION 0.1.0 9-3. [Set-up] target device & Traffic Save an IEEE ADDRESS of target device by using a command “AT+SETTARGET” Reset the Device so that its target device set-up can be processed. < It is not recommended that there is a lot of traffic in the Zigbee Network. > Refer to the meanings of Traffic in terms of Zigbee Network.

  • Page 32: Start Message

    FZ100BS Manual VERSION 0.1.0 Do not set target device to FFFFFFFFFFFFFFFF(Broadcast) when performing data transmission. If data is transmitted by Broadcast, all Routers in the middle transmit the data to all nodes again. The more Devices using Broadcast data exist and the more Routers in the middle exist, the more traffic is caused in the Zigbee Network.
  • Page 33 FZ100BS Manual VERSION 0.1.0 ROUTER START OK : A Device starts as Router and the Zigbee Network is configured properly. Thus, Zigbee Network Extension and data transmission is possible. ROUTER START ERROR : A Device starts as Router, and the Zigbee Network Configuration is failed. See if there is Coordinator around.
  • Page 34 FZ100BS Manual VERSION 0.1.0 : The message “OK” is output from FZ100BS when a Device switches its mode from operation mode to AT command mode. - Use a command +++ to make the Device switches its mode from operation mode to AT command mode.
  • Page 35 FZ100BS Manual VERSION 0.1.0 When RESET OPTION is set to be enabled with a command AT+SETRESET1, FZ100BS fails to participate in the Zigbee Network and its target device is not properly set, FZ100BS is reset. When RESET OPTION is set to be disabled with a command AT+SETRESET0, FZ100BS fails to participate in the Zigbee Network and its target device is not properly set, FZ100BS is put on standby for a handle by users.
  • Page 36 FZ100BS Manual VERSION 0.1.0 ※ Reference Appendix_1: FZx00_AT Command Appendix_2: FZx00_GUI Appendix_3: FZx00_used End Device & Other Data...
