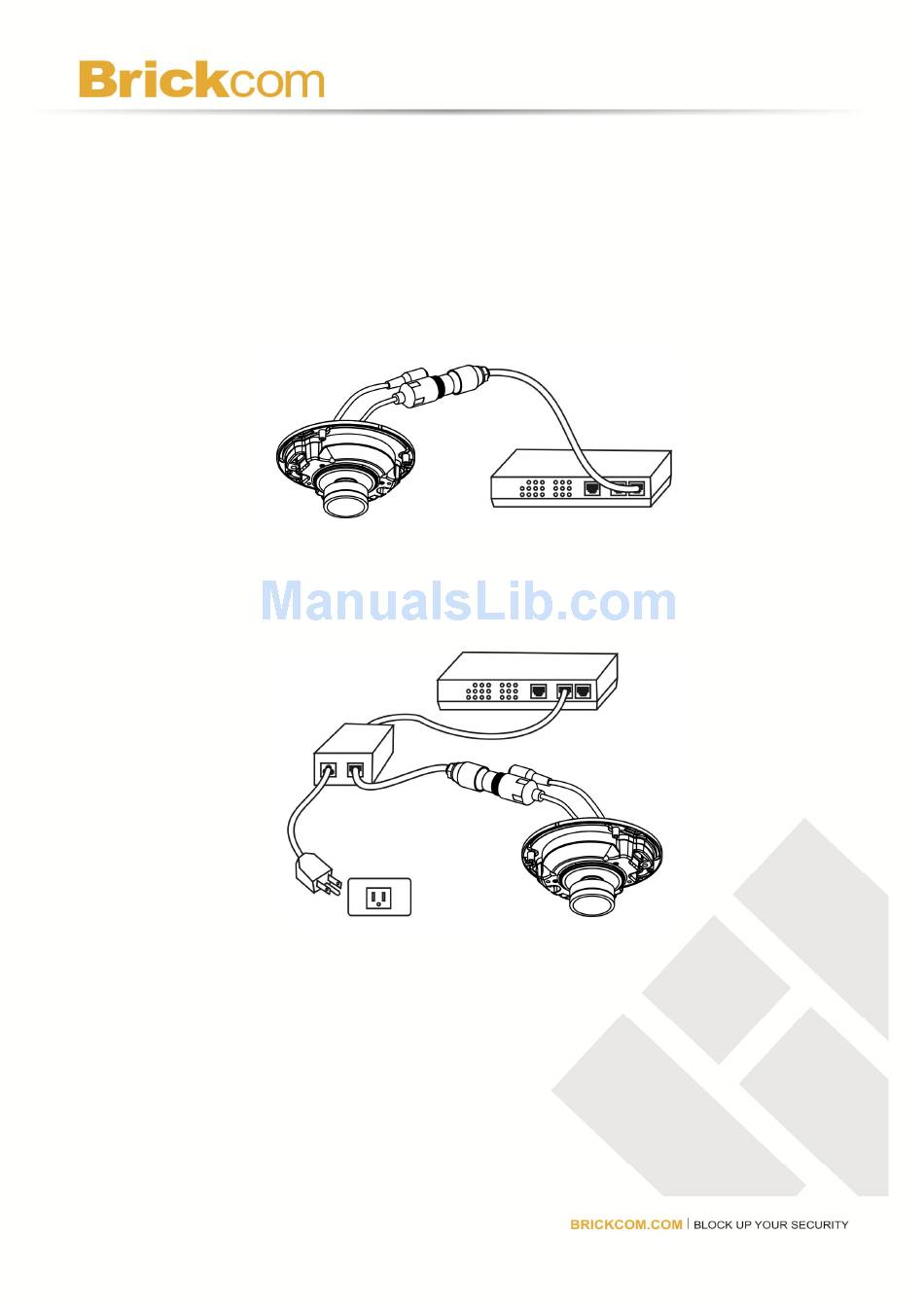

Step 3. Camera Connection
The camera is DC12V and PoE compliant, so there are two options for powering on the
camera. The camera can either be connected to a PoE switch or a non-PoE switch.
a. Powering on Camera with PoE Switch:
Use an Ethernet cable to connect the camera to the PoE switch.
b. Powering on Camera with PoE Injector:
i. Use an Ethernet cable to connect the camera to a PoE Injector.
ii. Use an Ethernet cable to connect the PoE Injector to the non-PoE switch.
iii. Connect the PoE Injector to a power outlet.
