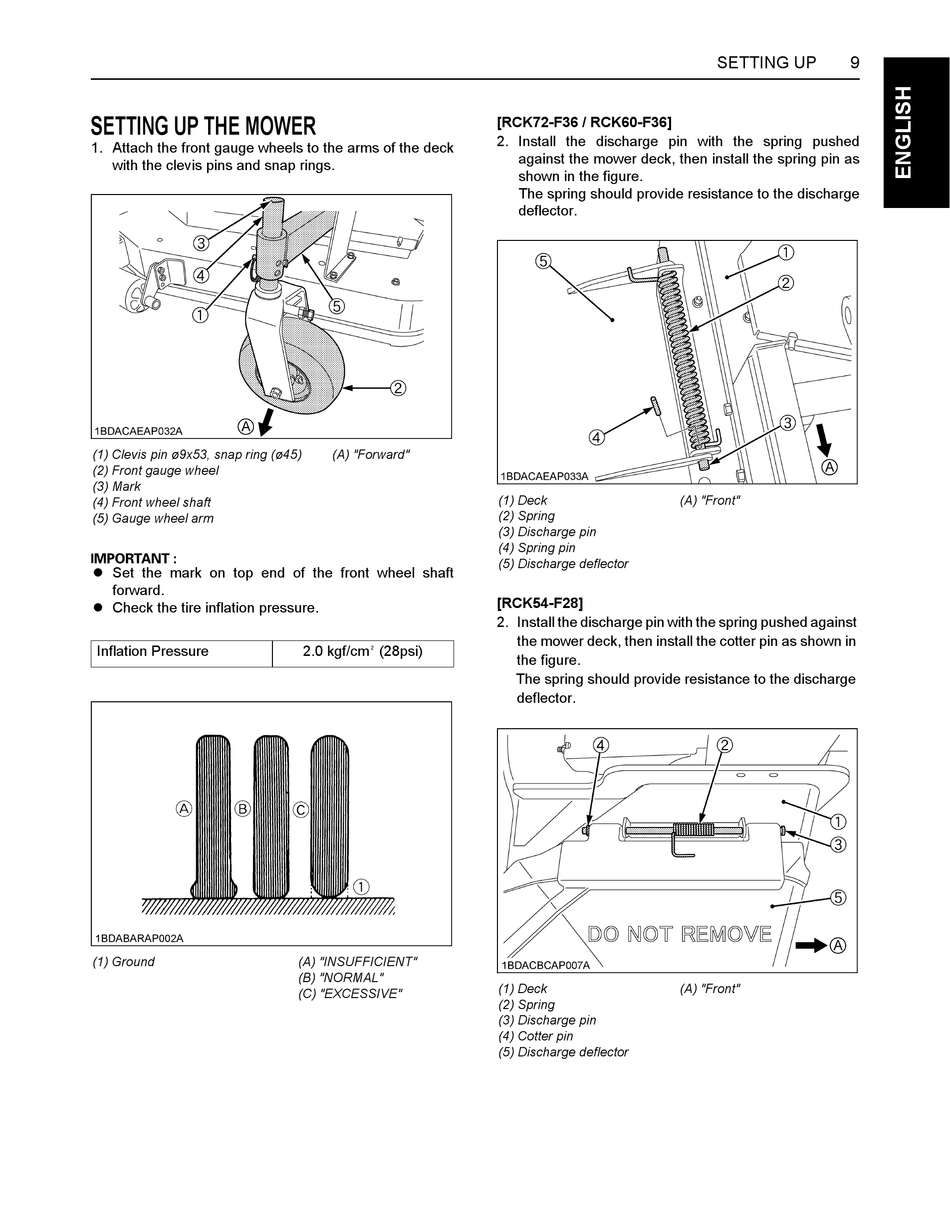

SETTING UP THE MOWER

1. Attach the front gauge wheels to the arms of the deck
with the clevis pins and snap rings.
(1) Clevis pin ø9x53, snap ring (ø45)
(2) Front gauge wheel
(3) Mark
(4) Front wheel shaft
(5) Gauge wheel arm
A Set the mark on top end of the front wheel shaft
forward.
A Check the tire inflation pressure.
Inflation Pressure
(1) Ground
(A) "Forward"
2.0 kgf/cm (28psi)
(A) "INSUFFICIENT"
(B) "NORMAL"
(C) "EXCESSIVE"
[RCK72-F36 / RCK60-F36]
2. Install the discharge pin with the spring pushed
against the mower deck, then install the spring pin as
shown in the figure.
The spring should provide resistance to the discharge
deflector.
(1) Deck
(2) Spring
(3) Discharge pin
(4) Spring pin
(5) Discharge deflector
[RCK54-F28]
2. Install the discharge pin with the spring pushed against
the mower deck, then install the cotter pin as shown in
the figure.
The spring should provide resistance to the discharge
deflector.
(1) Deck
(2) Spring
(3) Discharge pin
(4) Cotter pin
(5) Discharge deflector
SETTING UP 9
(A) "Front"
(A) "Front"
