CB RADIO
Operating Manual AE 6690
Instrucciones breves AE 6690
Aide-mémoire AE 6690

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE 6690 and is the answer not in the manual?

Questions and answers

Summary of Contents for Albrecht AE 6690

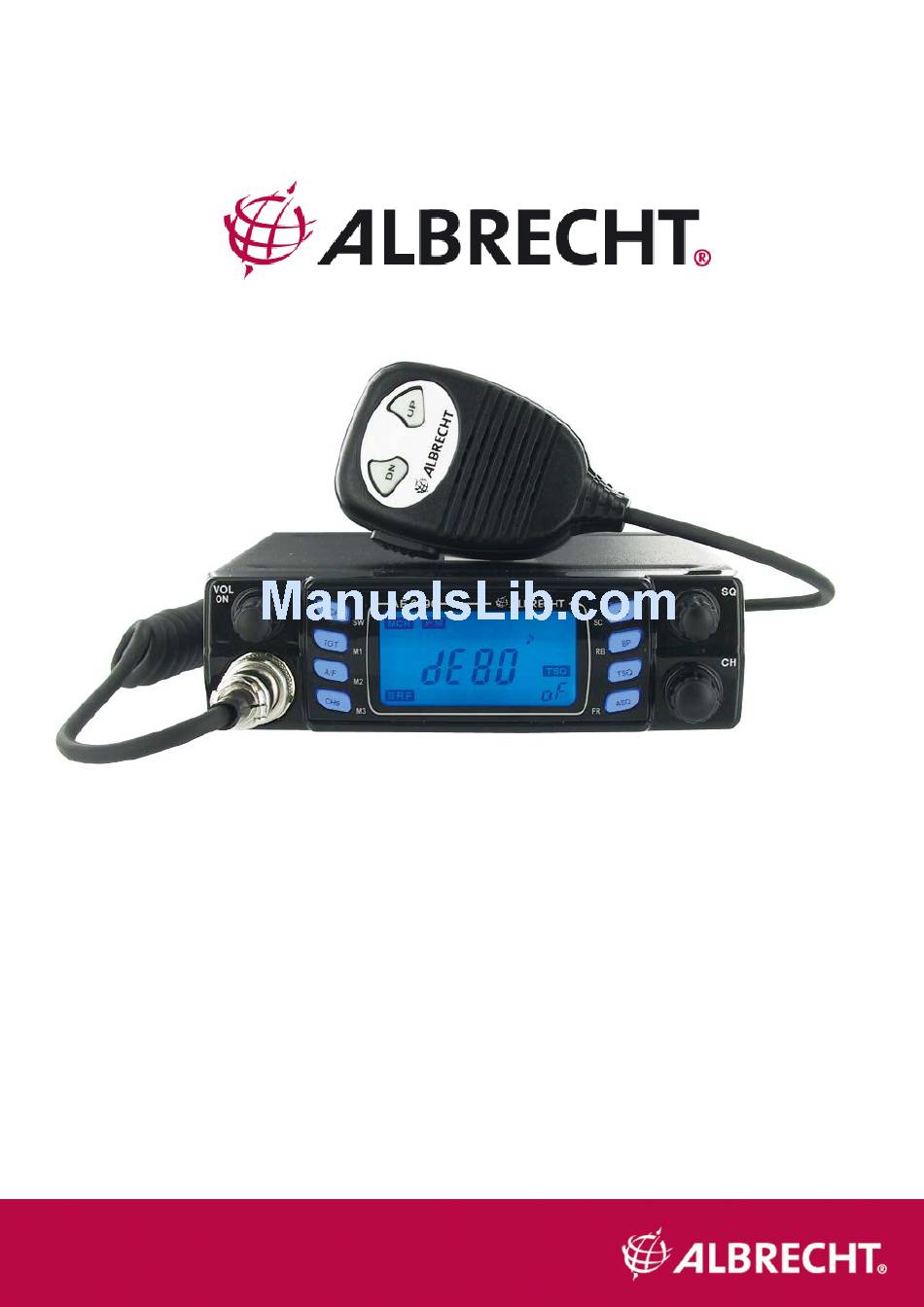

  • Page 1 CB RADIO Operating Manual AE 6690 Instrucciones breves AE 6690 Aide-mémoire AE 6690...
  • Page 2: Table Of Contents

    Index Introduction Accessories included Installation of the radio Power supply connection Replacing a fuse Antenna connection / Rear view Installation instructions of the vehicle manufacturers Legal Details CE-label Safety Precautions Radio Passport Front view / Operation Country-programming Most important functions Receiving Switching on and adjusting volume Selecting the operating channel...
  • Page 3: Introduction

    Introduction Congratulations to your new CB-Radio AE 6690. This CB-Radio from our Heavy Duty series is an extremely solid and robust made radio and is allowed nearly all over europe (except Austria, there you are only allowed to use a special programmed FM version), which you can programm fitting to the country in which you want to use this radio.
  • Page 4: Installation Of The Radio

    Installation of the radio You can either operate your ALBRECHT AE 6690 in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life.
  • Page 5: Replacing A Fuse

    Never exceed the upper voltage limit under no circumstances! The transmitting stages for your AE 6690 are electronically stabilised, and therefore it is impossible to increase output by means of excessive supply voltage. Such attempts may lead to serious damage to the...
  • Page 6: Antenna Connection / Rear View

    Minus (-) connection. Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 6690. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range.
  • Page 7: Safety Precautions

    Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 6690 when the traffic situation enables it to be used safely.
  • Page 8: Radio Passport

    ALBRECHT RADIO PASSPORT AE 6690 This international version and the FM only version of this CB radio complies to the latest European regulations (R&TTE directive and European harmonised standards) and has been notified in the countries according to following table: (as of August 2007), while only the special Spanish version (4 W AM) is allowed to be used in Spain!
  • Page 9: Front View / Operation

    Operation Receive Volume LCD Channel & On-Off Status Display Squelch Rotary control FC – BP – TSQ - ASQ SCH – TOT - AM/FM – 6 pin MIC socket Channel Channel 9 Programming the country-settings Your CB radio can always be switched between 6 different country versions. To switch you need to hold one or two buttons on the front side while you turn on the radio with the VOL/ON (volume and on-/off).
  • Page 10: Most Important Functions

    In Austria the use of switchable CB radios is generally not allowed. If you travel through Austria, you are allowed to let your CB radio installed as it is, but you are not allowed to use it. For customers in Austria, we have a CEPT version AE 6690 FM without switchable countries on demand.
  • Page 11: Direct Channel Access

    The further the control knob is turned to the right, the stronger a signal has to be in order to be audible through the loudspeaker. In order to adjust the set to be the most sensitive to incoming signals, switch to a free channel: •...
  • Page 12: Transmitting And Correct Use Of The Microphone

    The modulation amplifier of your AE 6690 is sensitive enough and enables you in most cases to speak with even more distance, depending on how loud your voice is. An automatic regulator ensures that your partner always hears your signal at the same volume.
  • Page 13: Left Side Of The Keys

    • The primary function is printed directly on the key and is achieved with a short or longer push on the regarded key • The secondary function you can achieve by first pushing FC and afterwards the regarded key. The printing for the secondary functions is directly next to the keys. •...
  • Page 14: Pilot Tone, Ctcss, Tone-Squelch, Tsq

    • The first 38 tones are internationally standardised, the codes from 39 to 48 are additionally possible with other AE 6690 at the distant partner stations only. CTCSS codes are often also described as Sub Channels or Pilot Tone system.
  • Page 15: External Sockets

    UP and Down from the microphone, the socket has a special wiring at Pin No. 4 only valid for this and similar Albrecht transceivers. Apart from the hand microphone included in the package, you can also hook up other microphones, with or without preamplifier, or with or without selective calling devices.
  • Page 16: Internet Link Addresses

    Furthermore we afford you 3 years manufacturer’s warranty for the AE 6690. Exempt from this warranty are transmitting power amplifiers and illumination resources. Our General Terms and Conditions are imperative.
  • Page 17: Technical Details

    Technical Details Microphone socket wiring For Packet Radio & others Pin 1 Mic audio Pin 1 Transmit audio Pin 2 PTT-RX (on ground for receiving) Pin 2 Receive audio Pin 3 PTT-TX (on ground for transmit) Pin 3 PTT key Pin 4 up/down key Pin 4...
  • Page 18: Declaration Of Conformity

    Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 6690 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler...
  • Page 19: Short Manual

    Short manual AE 6690 – Fast to the point The most important functions at a glance: Before the first time turning on, programming of the corresponding country settings Programming: hold FC + BP key and turn on the radio. Display flashes, select with...
  • Page 20: Instrucciones Breves

    Instrucciones breves AE 6690 – Rapidez para la tarea Un vistazo a las funciones más importantes Antes de proceder con la programación considere la configuración regional: Alemania, República Checa 80/40 dE Bélgica, Alemania, Finlandia, Francia, Irlanda, Italia, Letonia, Países Bajos, 40/40 EU Polonia, Portugal, Suiza, Eslovaquia, España...
  • Page 21: Aide-Mémoire

    Aide-mémoire AE 6690 – Droit au but ! Aperçu des fonctions principales Avant la première mise en service, programmation conforme au code du pays : Allemagne, République tchèque 80/40 dE Allemagne, Belgique, Espagne, Finlande, France, Irlande, Italie, Lettonie, 40/40 EU Pays-Bas, Pologne, Portugal, Slovaquie, Suisse Veuillez respecter les différentes réglementations en matière d’autorisation et...
  • Page 22: Circulation Card

    MULTILATERAL AGREEMENT CONCERNING THE FREE CIRCULATION OF MOBILE/PORTABLE TRANSMITTING/RECEIVING STATIONS IN THE 27 MHz BAND (CITIZEN BAND), NOT COVERED BY A CEPT RECOMMENDATION CIRCULATION CARD Federal Network Agency for Electricity, Gas, Telecommunications, Post and Railway This Agreement refers only to CB equipment declared in conformity with the essential requirements of Directive 1999/5/EC (R&TTE Directive) and CE marked, or approved in Germany under earlier regulations and bearing any of the following marks: PR27, PR27D, PR27D-40, 27PR-FM, KAM, KFFM40, KFFM, AFM80, KFAM40, FM80, k/m, KF, K/..., K/p.
  • Page 23 ACCORD MULTILATERAL RELATIF A LA LIBRE CIRCULATION ET A L’UTILISTION D’ EMETTEURS-RECEPTEURS MOBILES-PORTATIFS DANS LA BANDE DES 27 MHz (EQUIPEMENT CB) NON COUVERTES PAR UNE RECOMMANDATION CEPT CARTE DE CIRCULATION Agence fédérale réseaux - électricité, gaz, télécommunications, postes et chemins de fer Cet accord concerne uniquement des équipements CB qui ont fait l’objet d’une déclaration de conformité...
  • Page 24: Disposal Of Electronic Waste

    Please contribute to the efficient recycling of used electronic items! Alan Electronics GmbH – Daimlerstr. 1 k – D-63303 Dreieich/ Germany Spare parts and Repair Service: (+49) 6103-9481-22 Service-Fax: (+49) 6103-9481-60 Homepage: www.albrecht-online.de, www.alan-electronics.de e-mail: service@alan-electronics.de Service-Download: www.hobbyradio.de © Alan Electronics GmbH, August 2007...
