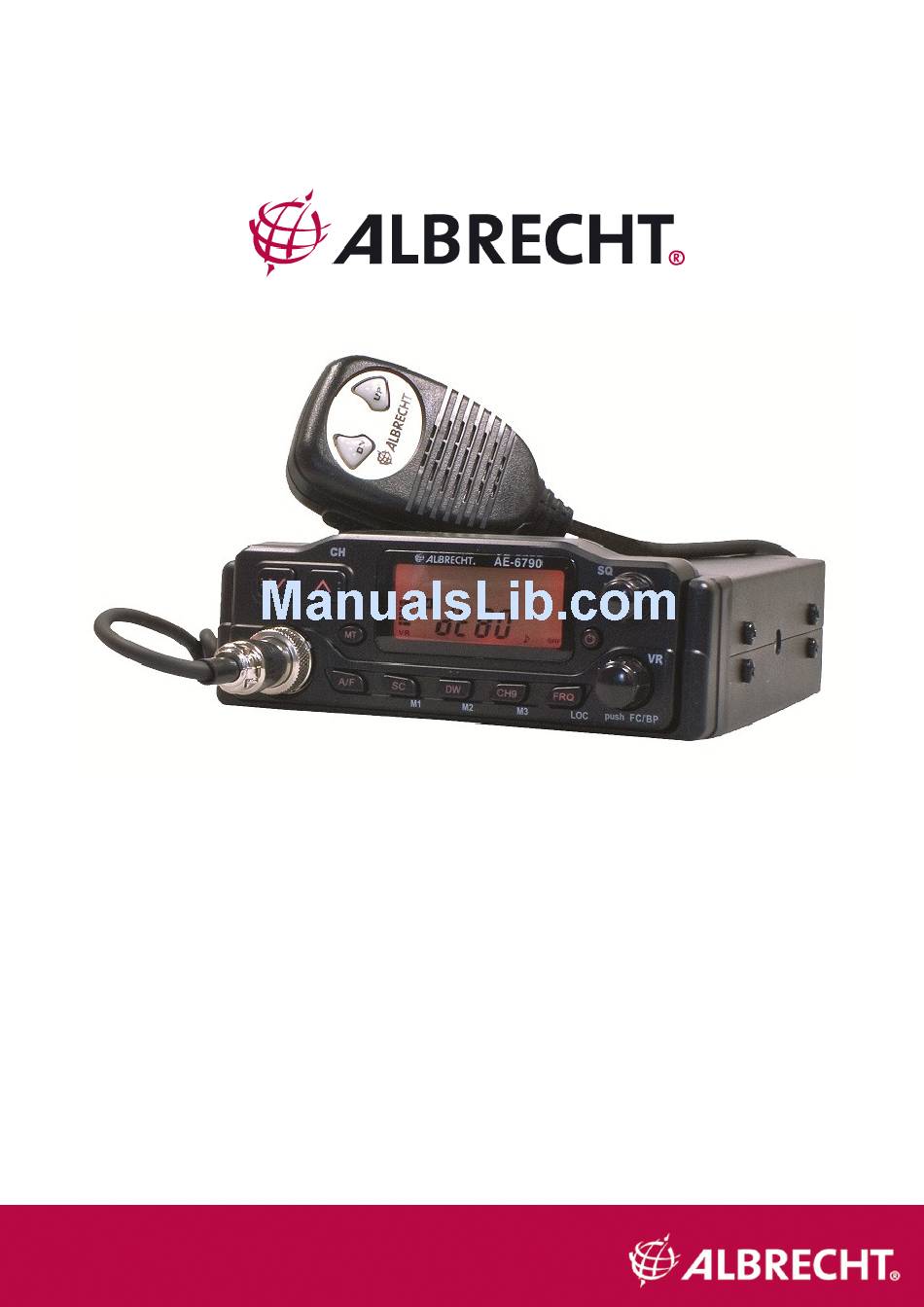

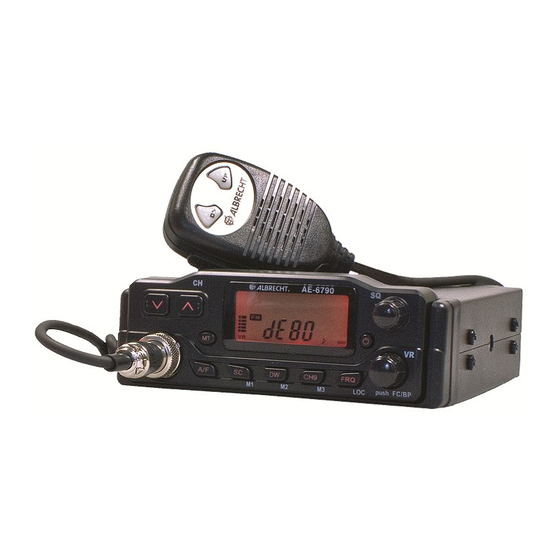

- Page 1 CB Radio AE 6790 User Manual...
-
Page 2: Table Of Contents
Buttons on the Right......................11 Select Modulation mode: AM or FM? ................11 External Connections ......................12 External Speaker......................12 Warranty .......................... 12 Disposal and Recycling ....................13 Quick Guide AE 6790 ......................14 Declaration of Conformity / Konformitätserklärung .............. 15... -
Page 3: Introduction
Introduction Congratulations on your new CB radio AE 6790. This CB radio from our Heavy Duty Series is an extremely robust designed radio and can be used nearly everywhere in Europe (except Austria, where you are only permitted to use our specially programmed FM version until the new EU regulations come into force), which can be programmed according to the country of use. -
Page 4: Radio Installation
Radio Installation You can operate your AE 6790 in the car or as a base station at home. For installation as a mobile station in the car a mobile holder and a variety of installation materials are included. Do not install the device in direct sunlight, since the increased temperature can shorten the lifecycle of the device. -
Page 5: Importance Of The Fuse In The Power Cable
To automatically turn off the radio when turning off the ignition, connect to the switched voltage at the ignition switch. Our AE 6790 features continuous Flash EEPROM memory of the last setting and starts with the setting used last upon turning on the ignition again. -
Page 6: Antenna Connection - Rear
Your dealer offers inexpensive standing wave meters such as the Albrecht SWR 30, order no. 4412. By the way: Even with your AE 6790 featuring an especially robust final stage, which can even cope with maladjustments of SWR = 3, you should never transmit without antenna! -
Page 7: Safety Precautions
Even if radio operation such as your CB radio in Germany is exempt from the so-called “mobile phone ban”, and you may use your AE 6790 while driving, only reach for the microphone when the traffic permits! Please note that in many other countries no exceptions are made for CB radios. As the driver you are not permitted to operate a radio while driving, unless you have a hands-free kit. -
Page 8: Country Programming
VR - Volume Function buttons Microphone A/F AM/FM – SC Scan – DW Dual watch – CH 9 – FRQ FC – Function socket (6 pin) (Frequency/Channel) BP – Beep tone Country Programming Memories M1-M3 and LOC (Local-DX) Your radio can be changed over between different country versions during operation. To toggle during operation press the MT button. -
Page 9: Most Important Functions
In Austria operation of switchable radios is generally not permitted. You may leave your radio installed while crossing these countries, but you are not allowed to operate them. For Austrian customers we supply a version AE 6790 FM without country selection. Authorized dealers are also permitted to change devices for Austria. -
Page 10: All Functions Available Via The Control Panel
All Functions Available via the Control Panel Contrary to other devices with many functions, for the AE 6790 we attached importance to the fact that every button only operates exactly one function. The number of dual functions with FC (function button) + respective other button is reduced to a minimum. -
Page 11: Buttons On The Right
Direct channel: One-touch change from previously selected channel to channel 9 CH 9 and back. Channel 9 is the international call and emergency channel: Especially in Germany many receivers listen to this channel. High probability to be heard on this channel in an emergency. Also use channel 9 to start calling other stations. Call the desired station and agree a different channel after your call is answered. -
Page 12: External Connections
As soon as you try to switch to one of the channels 41 to 80 on AM, the device switches to 40- channel AM mode with channels 1-40 (and vice versa for German setting). Both modulation modes have their own channel setting, so that after switching always the previously used FM or AM channel is selected. -
Page 13: Disposal And Recycling
device. This warranty covers all defects and defect components during the warranty period, except normal wear and tear such as scratches on display or casing, casing defects, broken antennas, exhausted lamps, worn out or damaged microphone cables and defects due to corrosion, voltage peaks due to improper external power supply or use of unsuitable accessories. -
Page 14: Quick Guide Ae 6790
Quick Guide AE 6790 The most important functions on a glance Program country setting before first use: 80/40 dE D, CZ, SK 40/40 EU B, BG, CH, D, E, EST, F, FIN, FL, GR, IRL, I, LV, NL, P, PL, RO Please note the still different licensing and charge regulations in some countries (see device ID!). -
Page 15: Declaration Of Conformity / Konformitätserklärung
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 6790 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und... -
Page 16: Albrecht Radio Passport
Albrecht Radio Passport For your AE 6790 the following programming and Operation regulations apply (subject to change, as per August 2011) in countries applying R&TTE directive: Country Programming Registration and Licensing Obligation Operation of Radio Equipment with Registration Obligation and/or Limitations...
