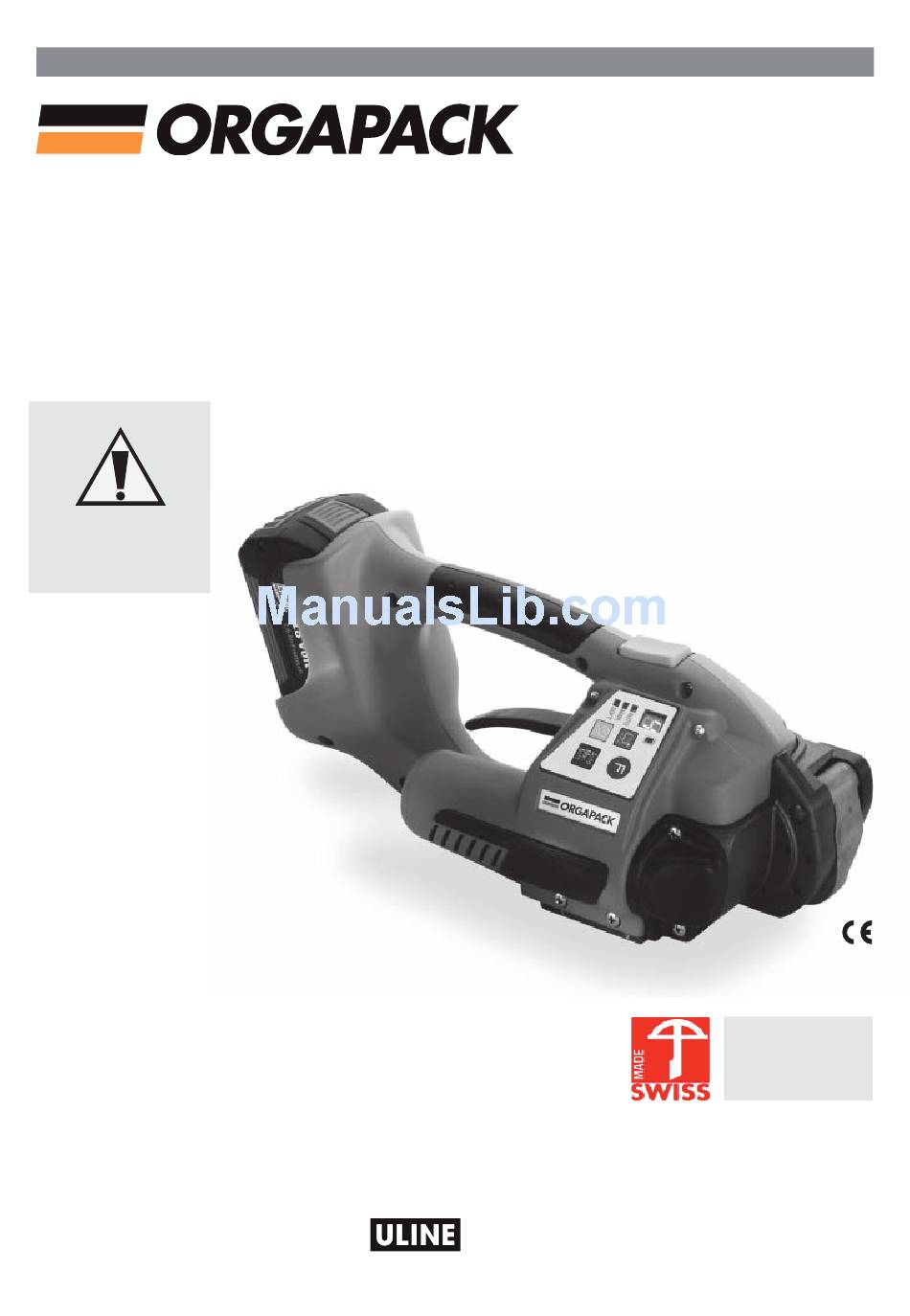

- Page 1 OPERATING INSTRUCTIONS H-2386 BATTERY-HAND TOOL FOR PLASTIC STRAPPING OR-T 400 Before using the tool, read the operating instructions carefully. Patent angemeldet Patent pending Brevet en cours H-2386 1-800-295-5510 09.09/WE...
- Page 2 ORGAPACK OR-T 400 DECLARATION OF CONFORMITY TABLE OF CONTENTS We take sole responsibility for declaring that the tool OR-T 400 to which this declaration refers is in full SHORT INSTRUCTIONS conformity with the current requirements of the guidelines laid down by the council on 17th May 2006 (2006/42/ECC), “Machine Guidelines“.
- Page 3 ORGAPACK OR-T 400 TECHNICAL DATA BATTERY CHARGER / BATTERY Weight 4.2 kg (9.3 lbs.) . l c Battery charger voltage 100 / 110 / 230 V Dimensions Length 334 mm (13.1") Battery charger type BOSCH AL 1860 CV (5.4") (5.8") Charging time 20–45 minutes,...
- Page 4 ORGAPACK OR-T 400 GENERAL INFROMATION These operating instructions are intended to simplify fa- miliarisation with the strapping tool and its proper use for the intended purpose. The operating instructions contain important information concerning the safe, proper and effi cient use of the strapping tool.
- Page 5 Do not put your fi ngers into the tension wheel area. Do not use water! Do not use water or steam to clean the tool. Only original ORGAPACK spare parts may be used! Original Using non-original spare parts will void the warranty and any liability.
- Page 6 ORGAPACK OR-T 400 DESCRIPTION 4.1 CONSTRUCTION AUTO + / - MAN. AUTO 1 Operating panel SOFT MAN. + / - SOFT 2 Tension button “Strap tensioning/welding” (Fully-Auto) 3 Handle 4 Battery, 18 V 5 Rocker lever 6 Welding button “Welding/cutting” (manual)
- Page 7 ORGAPACK OR-T 400 ORERATING INSTRUCTIONS The operator is responsible for safe strapping and the correct strap selection for the package, depending on its dimensions, weight, edges and stability and the way it will be transported and stored. Only the strap dimensions specifi ed for the tool type (page 7) should be used.
- Page 8 ORGAPACK OR-T 400 – Take the tool in the right hand and lift the rocker lever (6/1) towards the handle. – Slide the straps, one on top of the other, into the tool up to the stop. The strap lead is now approximately 5 cm (2“) beyond the tool.
- Page 9 ORGAPACK OR-T 400 5.3 CHECKING THE SEAL – Check appearance of seal (see fi g. 9) regularly. If the straps are poorly welded, check the welding time setting (refer to chapter 5.8). 1 Good seal (the complete surface is cleanly welded without excess material being forced out sideways).
- Page 10 ORGAPACK OR-T 400 5.6 SETTING STRAP TENSION – Press the „Function“ button (12/1) briefl y. – Press the „Strap tension“ button (12/2) until the fl ashing digital display (12/3) shows the required strap + / - tension. Wait two seconds until the new setting is saved.
- Page 11 ORGAPACK OR-T 400 – Remove three cylinder screws (16/2). – Lift the rocker lever towards the handle, remove cylin- der screw (16/4) together with the strap stop rear 16 mm (16/3). – Remove cover (16/1). – Remove oval head screw (16/7) and remove strap guide rear 16 mm (16/6) from lever.
- Page 12 ORGAPACK OR-T 400 PREVENTIVE/CORRECTIVE MAINTENANCE 7.1 CLEANING/REPLACING TENSION WHEEL Removal – Remove battery from tool. – Remove four cylinder screws (19/4) and remove strap stop rear (19/5) and cover (19/3). – Remove tension wheel (19/1) carefully. Remove ball bearing (19/2) from tension wheel.
- Page 13 ORGAPACK OR-T 400 7.4 TROUBLE SHOOTING If a malfunction occurs, the digital display blinks and displays error “E” followed by the error number. FAULT FAULT: Rocker lever was operated before the cooling-down period had elapsed. ACTION: – Operate the rocker lever only when the cooling-down period has elapsed..
