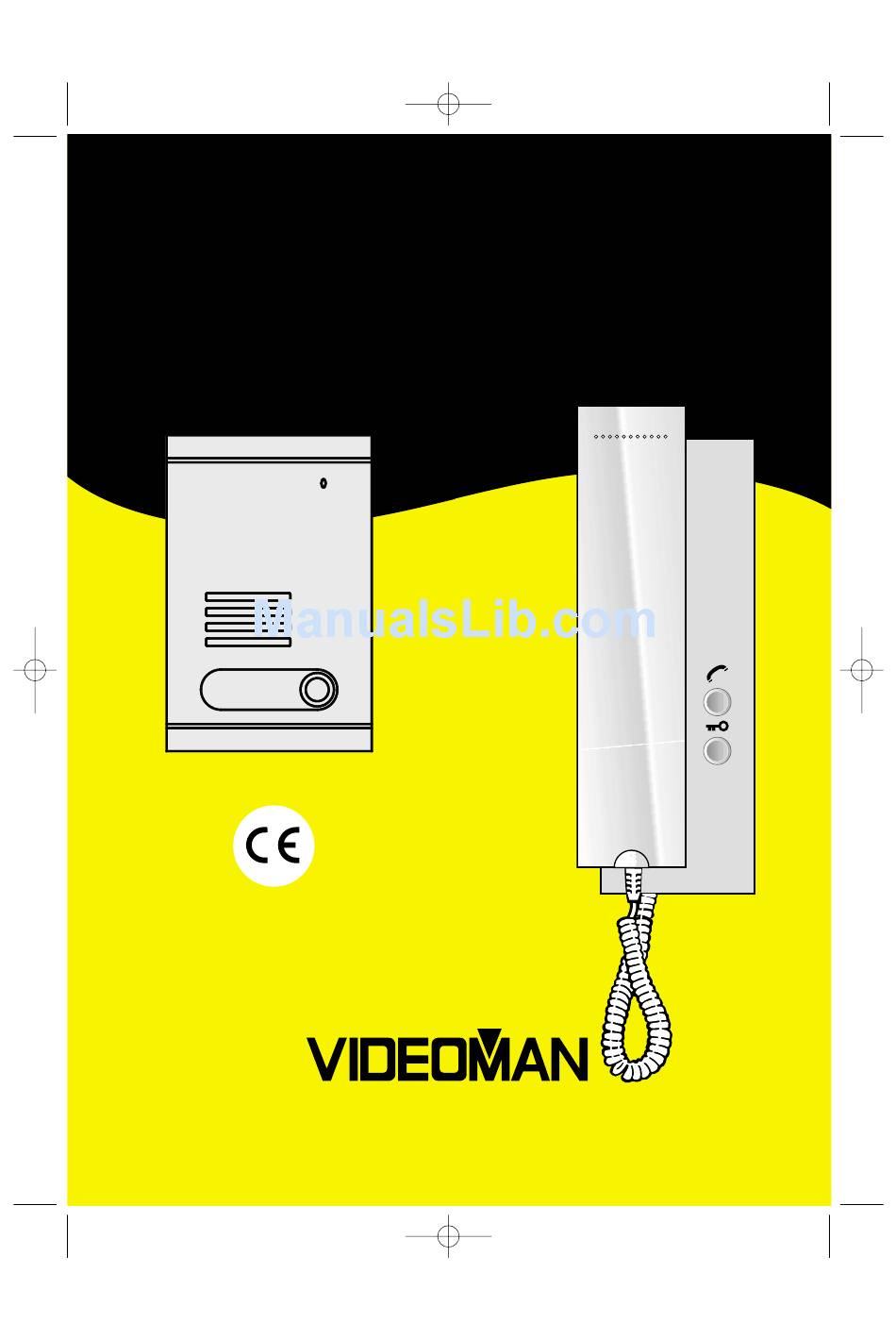

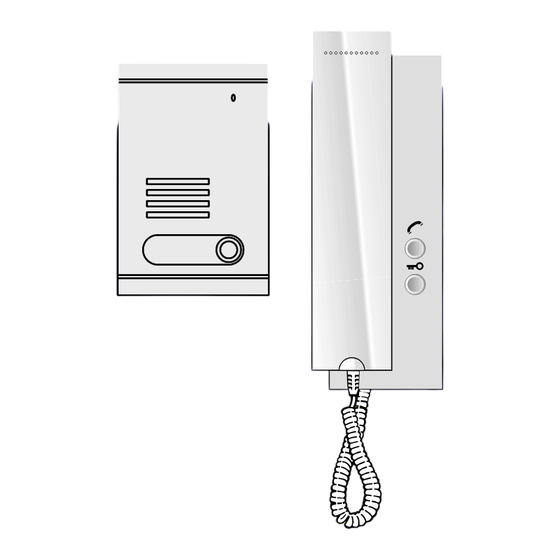

- Page 1 INSTALLATION AND OPERATION MANUAL BIDP-500 BIDP-500HD www.videoman.com.au...
- Page 2 1. NAME PLATE ON THE CALL PANEL NAME PLATE a. Release the block (fig.1A et 1B). b. The name plate is now accessible (fig. 1C). c. Write the name on the name plate. d. reassemble the block(fig. 1D).
- Page 3 Manuel wePA 241 - 06-2005 27/04/05 16:52 Page 5 2. MOUNTING THE PANEL (FLUSH-MOUNTING) a. Use a small screwdriver to open the screw cover flaps (fig. 2A, 2B et 2C). b. Seal the flush-mounting box in the wall (cut out 88 mm x 142 mm x 52mm), with the frame pressing against the surface of the wall (fig.
- Page 4 Manuel wePA 241 - 06-2005 27/04/05 16:52 Page 5 3. MOUNTING THE PANEL (SURFACE-MOUNTING) a. Fix surface mount bracket to the wall using the two screw (fig. 3A). b. Carefully connect the wires to the terminals (no tools needed) as shown on (fig.1 -p.6).
- Page 5 Manuel wePA 241 - 06-2005 27/04/05 16:52 Page 9 4. MOUNTING THE HANDSET a. Release the mounting slots (fig. 6A). b. Fix it to the wall using 2 screws (fig. 6B). c. Connect the various wires as shown on the wiring diagram (fig. 1 - p.6). d.
- Page 6 BIDP-500HD 12 V DC 12 VDC. Max 500mA...
- Page 7 6. CONNECTION AND CONTROLLING A DOOR OPENER 12 VDC. Max 500mA VS - 030 DC Relay An electric lock or strike may be connected to terminals D- and D+ on the call panel (fig. 2). To control an automatic gate opener, connect the optional VS - 030 unit between terminal D- and D+ and the two “external control”...
-
Page 8: Ring Volume
7. ADDITIONAL HANDSET An additional handset BIDP-500 may be connected in parallel with the main handset (fig. 4). BIDP 500 BIDP 500HD 30 m max. 6 x 6/10 mm 8. INTERCOM BETWEEN THE TWO HANDSET (OPTIONAL BIDP-500HD) button can be used to call the second handset and communicate discreetly.
