VIDEMAN is a registered trade mark of EOS Australia Pty Ltd
Designed, imported and distributed by Videoman Systems Co.
VS-902
( VS-902M + VS-902C + VS-902PSU )
VS-902P
( VS-902PM + VS-902C )
060911.67
B&W 16VDC
B&W 240VAC
VS-952
Colour 16VDC
( VS-952M + VS-952C + VS-902PSU )
VS-952P
Colour 24VAC
( VS-952PM + VS-952C )
www.videoman.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIDEOMAN VS-902
Summary of Contents for VIDEOMAN VS-902

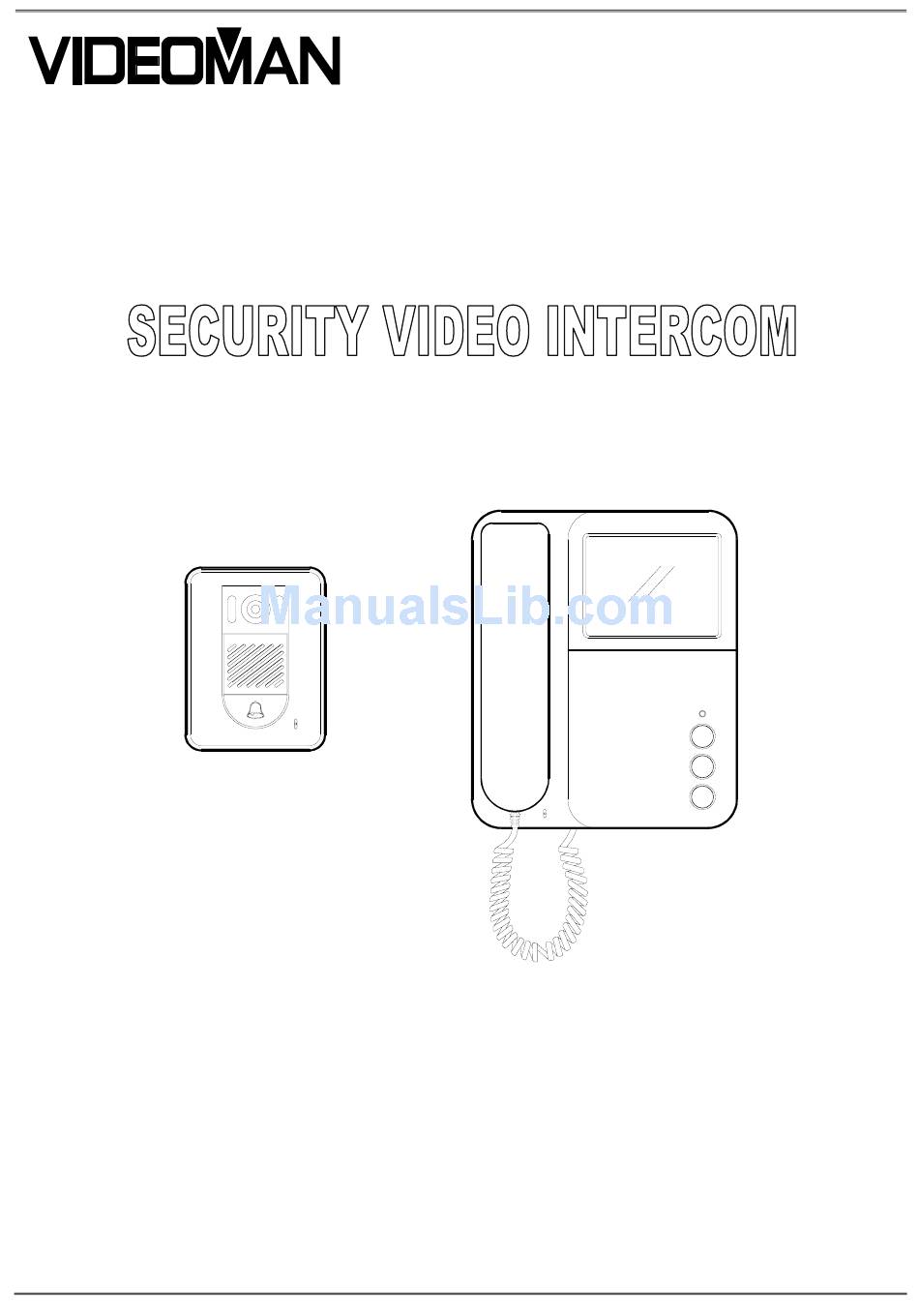

- Page 1 VIDEMAN is a registered trade mark of EOS Australia Pty Ltd Designed, imported and distributed by Videoman Systems Co. VS-902 VS-952 B&W 16VDC Colour 16VDC ( VS-902M + VS-902C + VS-902PSU ) ( VS-952M + VS-952C + VS-902PSU ) VS-902P VS-952P B&W 240VAC...
- Page 2 Indoor Monitor(Ref VS-902M) Installation Audio Handset (Ref VS-902H) Installation Fig. 2 Fig. 1 Surface Mount Camera(Ref VS-902C)Installation Install indoor monitor, outdoor camera or audio handset about 1.55M~1.60M from the ground and keep away from snow, rain and direct sunlight. NOTE : Optional angle brackets are available for surface mount cameras 45Degree left/right : Ref VS-902AB45 15Degree left/right : Ref VS-902AB15...
- Page 3 Audio Handset (Ref VS-902H) 16V DC 800mA SAA Approved Fig. 6 Fig. 5 Dimension: 215(H)x80(W)x45(D) The adaptor is only supplied with VS-902 and VS-952 Loud Speaker for Ring Tone ( -- ) : Black wire : Surround “Intercom-Call” button ( + ) : White Stripe : Centre “UNLOCK”...
- Page 4 Descriptions of Monitor 16VDC Model (Ref.VS-902M B&W, Ref.VS-952M Colour) 240VAC Model (Ref.VS-902PM B&W, Ref.VS-952PM Colour) 1. Screen 2. Power Indicator 3. “MONITOR” button (Refer to Page8) Press to turn on monitor or switch the second camera if the second camera is installed with a switcher (Ref:VS-2Way) 4.
- Page 5 Descriptions of VS-902C) ABS plastic surface mount camera (Ref. Camera IR LEDs for night vision Speaker CALL button Microphone Cable terminal to monitor Unlock port LB – The characteristic of this Dimension: 128(H)x98(W)x43(D) port out is determined by JP-LK Jumper on back of monitor (Refer to Page3 #15, Page5 Note3) With Jumper : Dry contact output...
-
Page 6: Mount Bracket
VS-952C/MC JS-AP POWER SUPPLY JP-VD * NOTE5 MONITOR FOR DOOR LATCH JP-LK : Reserved * NOTE1 DC IN VS-902(P)M VS-952(P)M BACK Ref.VS-4P * NOTE 5 Fail-Secure Door Latch MOUNT BRACKET (Ref SL-ST-160) Parellel connection to *Broken line indicates Shield wire if any next Monitor(s) Fig. - Page 7 System connection with two cameras and multiple monitors IMPORTANT!! Please read page 9 & 10 for cable requirements BEFORE running cables. VS-905M/952M To Audio Handset JS-VP Ref.VS-902H JS-AP * NOTE 5 JP-VD DC IN JP-LK * NOTE 1 Ref VS-210W *NOTE 4 BACK TO NEXT...
-
Page 8: Indoor Monitor
Video distributor (Ref. GL-D4L-PLUS) for multiple colour monitors When more than one colour monitor is installed (Ref. VS-952M, VS-952PM) in a system, using a video amplifier (Ref. GL-D4L-PLUS This is highly recommended for better image. Ref. SE-12VDC05Adpt Fig. 14 Ref.GL-D4L-PLUS (+) (-) In order to employ the output U5 of the video distributor,remove the... - Page 9 Basic Operation When visitor presses the “CALL” button on the outdoor station, the electronic bell in indoor monitor chimes, at the same time, the screen displays the visitors’ images. Pick up the handset, and talk with the visitors for 90 seconds. If nobody answers the phone, the screen will turn off in 30 seconds automatically.
-
Page 10: Cable Requirement
Cable requirement – STAR Wiring method An additional power supply and Fig8 Cable is required when Fig. 16 JP-LK Jumper removed. (Indicated as broken lines of the diagrams) Fig8 Fig8 4core VS-902C/952C Refer to Page3 #15, Page4 #7 4core CAMERA and Page5 Note1,2,3 of this Fig8 manual. - Page 11 Cable requirement – Daisy Chain (loop-in-loop-out) wiring method Fig. 20 MEMO Fig8 Fig8 4core Fig8 DC IN Fail-Secure VS-902C/952C VS-902M/952M Door Latch CAMERA MONITOR (Ref SL-ST-160) Fig. 21 Fig8 Fig8 Fig8 4core 3core Fig8 DC IN Fig. 22 Fig8 Fig8 Fig8 DC IN 4core...
-
Page 12: Maintenance
Power for video phone (Ref.VS-902H): 12V DC (Supplied by monitor) Power consumption: Standby 0.5W, Max. 15W Indoor monitor screen: 4“ B/W CRT (Ref.VS-902, VS-902PM) or 4” colour TFT LCD (Ref.VS-952M, VS952PM) Camera Lens: 3.6mm, 72 degree horizontal visual angle Image sensor : 1/3” CCD Resolution: >300 TV lines...
