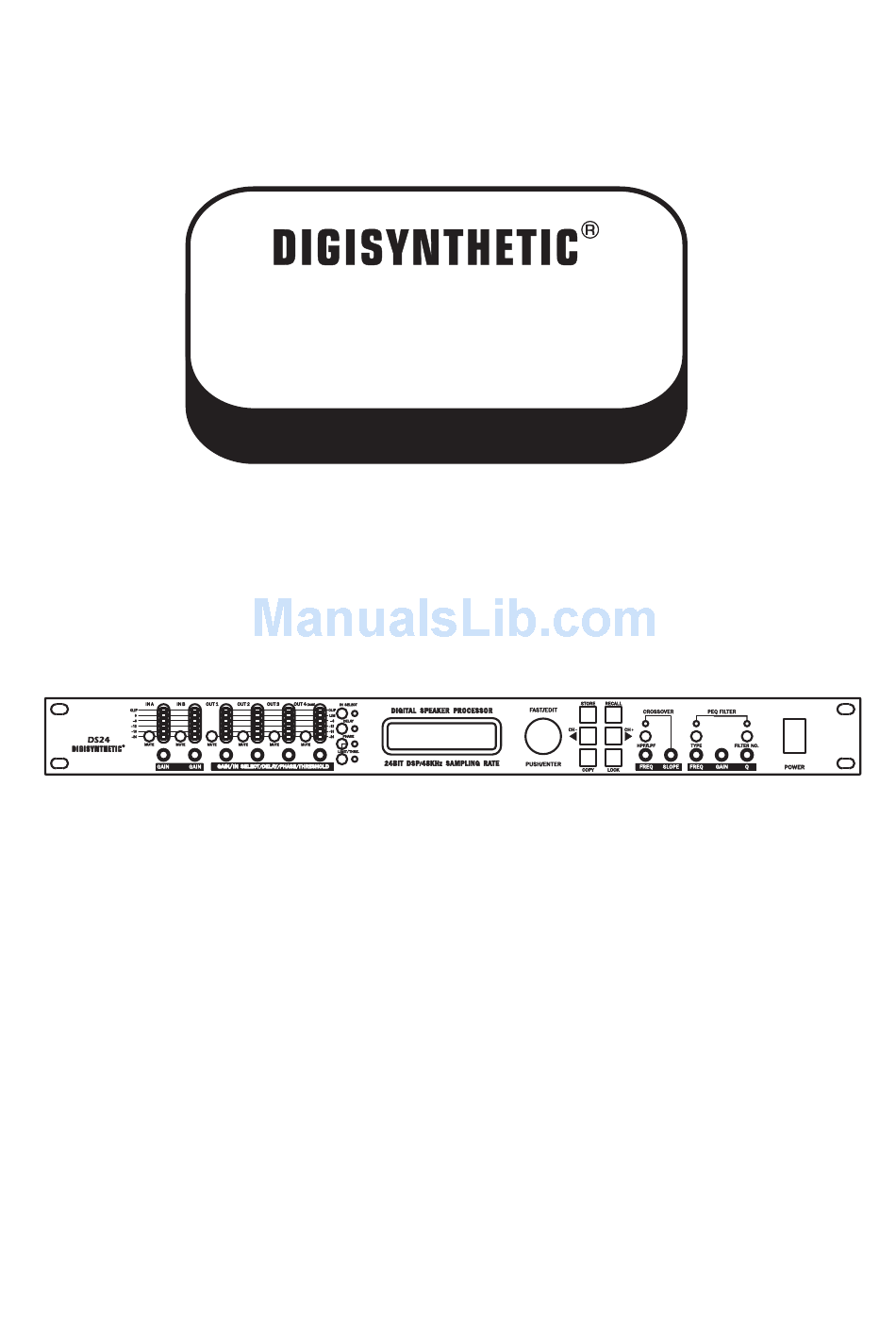

Page 1: User Manual

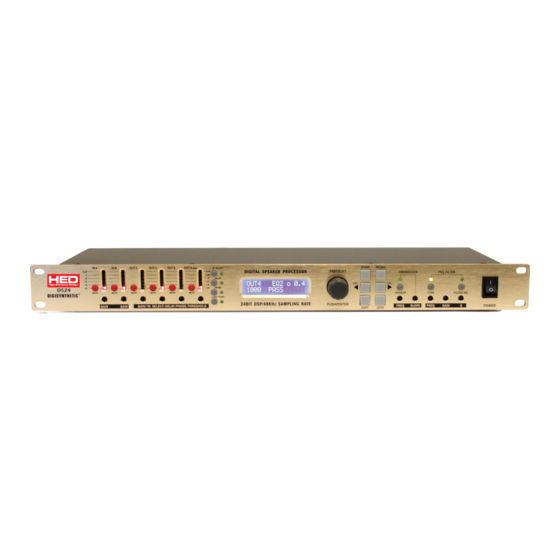

DS24 DIGITAL SPEAKER PROCESSOR USER MANUAL... -
Page 3: Specification
SPECIFICATION SPECIFICATION 1. 2 INPUT CHANNEL 3 bands EQ on each channel. Volume adjustable and mute function on each channel. 2. 4 OUTPUT CHANNEL 5 bands EQ on each channel. Volume adjustable and mute function on each channel. HPF on each channel. LPF on each channel. -
Page 4: Front Panel
FRONT PANEL FRONT PANEL 11 12 14 15 17 18 20 21 22 1. INPUT METER. 2. INPUT MUTE. 3. INPUT GAIN. 4. OUTPUT METER. 5. OUPT MUTE. 6. GAIN/IN SELECT/DELAY/PHASE/THRESHOLD. 7. SHIFT BUTTON FOR IN SELECT/DELAY/PHASE/LIMIT. 8. INDICATOR LIGHT FOR IN SELECT/DELAY/PHASE/LIMIT. 9. -
Page 5: Back Panel
BACK PANEL BACK PANEL 1. POWER SOCKET. 2. USB PORT. 3. XLR OUTPUT. 4. XLR INPUT. -
Page 6: Operation Instruction
Operation Instruction OPERATION 1. Parameter setting in input channel. 1.1 GAIN & MUTE:press [MUTE] to adjust MUTE or cancel MUTE. Turn the small rotatory button to adjust the GAIN. 1.2 EQ:Press [TYPE] or [FILTER NO] to enter EQ menu. Press [FILTER NO] to shift EQ. - Page 7 Operation Instruction (1)Select store file:turn[FAST/EDIT] to select user memories 1~16,press [PUSH/ENTER] confirm. If the selected memories already stored program,show the program name with"?" , If the selected memories is empty, show"Unused". See Fig. 2 STORE STORE 1 ALL FLAT ? 2 Unused Fig 2 (2)Edit program name:press[CH-] [CH+] to move the cursor position, press...
- Page 8 Operation instruction RECALL 2 DEMO Fig 6 If no program, show as Fig 7 below and then return to main menu. No Stored Program Fig 7 (3)LINK set: turn [FAST/EDIT] to select link or not, press [PUSH/ENTER] confirm. When recall PRESET 2*2Way or 2Way mon Sub, can choose link or not. After select LINK, adjust either channel parameter, then another channel parameter will changed accordingly OUT1&OUT3 link OUT2&OUT4 link.
- Page 9 Operation Instruction (4) Operation confirm [ENTER] TO COPY [ENTER] TO COPY src:A tar:B src:1 tar:2 Fig 12 3.4 Lock Press [LOCK] to enter menu. (1) Select lock/unlock type: A.device operation Lock/Unlock LOCK/UNLOCK LOCK/UNLOCK [ KEY LOCK ] [ KEY UNLOCK ] Fig 13 B Program management Lock/Unlock LOCK/UNLOCK...
- Page 10 Operation Instruction Small encoder auto unlock When user no operate more than 1 mins, Small encoder will auto lock for error operation,Sametime return to main menu (see Fig17).The lock response small encoder only and it wouldn't effect other button and big encoder.after lock,It will return to mainmenu directly if user want to operate the small encoder regardless of whether what menu position.
- Page 11 OUT3 GAIN GAIN DELAY DELAY MUTE MUTE OUT4 OUT4 PHASE PHASE LIMITER LIMITER LEVEL LEVEL DS24 2 W AY MONSUB DS24 2 W AY MONSUB IN A IN A MUTE MUTE GAIN GAIN LEVEL LEVEL GAIN GAIN DELAY DELAY MUTE...
- Page 12 Operation Instruction DS24 4 W AY DS24 4 W AY IN A IN A MUTE MUTE GAIN GAIN LEVEL LEVEL LEVEL LEVEL OUT1 OUT1 GAIN GAIN DELAY DELAY PHASE PHASE LIMITER LIMITER MUTE MUTE IN B IN B MUTE MUTE...
-
Page 13: Technology Parameter
Technology Parameter Technical Parameter 1.INPUT CHANNEL GAIN -40dB +6dB EQUALIZER EQ TYPE PEQ Low-Shelf High-Shelf All-Pass EQ FREQUENCY RANGE:[19.7Hz 20.2KHz] EQ GAIN -12.0dB +12.0dB step.0.5dB EQ Q VALUE 0.4 128 2.OUTPUT CHANNEL: SIGNAL INPUT SELECTION OFF,InA,InB,InC,InA+B,InA+C,InB+C,InAll GAIN -40dB +6dB EQUALIZER EQ TYPE PEQ Low-Shelf High-Shelf All-Pass EQ FREQUENCY... - Page 14 DIGISYNTHETIC CO.LTD Http://www.digisynthetic.com E-mail:sales@digisynthetic.com marketing@digisynthetic.com V1.1 VERSION...
