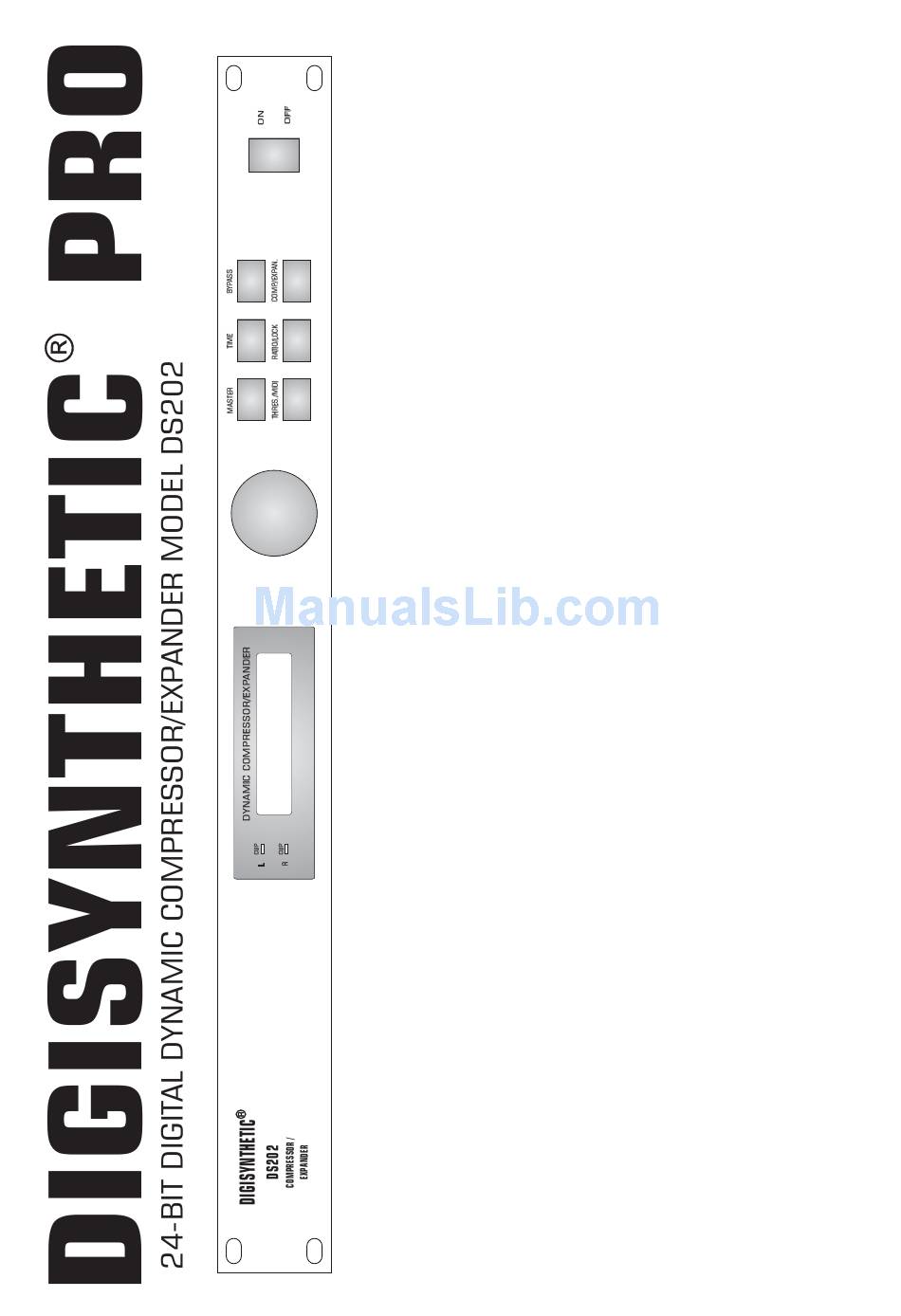

- Page 1 Instruction Manual...
- Page 2 The consignee must make all shipping claims. The DS202 fits into a standard 19" rack unit of space (1 3/4"). Allow at least an additional 4" depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and ventilation.
- Page 3 DIGISYNTHETIC PRO MODE DS202 TIME BYPASS MASTER DYNAMIC COMPRESSOR/EXPANDER DYNAMIC COMPRESSOR/EXPANDER CLIP D 202 COMP./EXPAN. THRES./MIDI THRES./MIDI RATIO/LOCK CLIP True 24-bit A/D,D/A with 48kHz sampling rate Internal 32-bit DSP processing Precise digitizes volume control, fully compress/expand. Selectable dB control: -64dB~+24dB, 1dB Step, Mute control Adjustable Compression/Expander Threshold: -50dB~0dB, 1dB Step Compression Ratio: 1.0~16.0:1...
-
Page 4: Table Of Contents
1. FRONT PANEL CONTROL 1.1 Menu Function 1.2 Function Knobs & Program Display 2. REAR PANEL 3. MIDI CONNECTION 4. APPLICATION 4.1 Application in Aux bus for DS202 4.2 Application with MIDI system for DS202 5. APPENDIX. 5.1 Technical Specifications Page 3... -
Page 5: Front Panel Control
1. FRONT PANEL CONTROL MASTER TIME BYPASS BYPASS DYNAMIC COMPRESSOR/EXPANDER DYNAMIC COMPRESSOR/EXPANDER CLIP D 202 THRES./MIDI THRES./MIDI RATIO/LOCK COMP./EXPAN. CLIP Fig 1.1: Front Pannel 6 function buttons available for selecting parameters or preset programs , 1 LCD display screen. 1.1 Manual Functions Display DYNAMIC COMPRESSOR/EXPANDER CLIP Threshold:-30dB... - Page 6 (3)TIME - Repeat pressing on this button, to activate selectable 3 Time parameter: Detect Time, Attack Time, and Decay time. Turning Rotary jog wheel to adjust Time Constants. ( As displayed in Fig 1.5) DYNAMIC COMPRESSOR/EXPANDER CLIP Threshold:-30dB CLIP DetecTime:13ms Fig 1.5 : Adjustable Time Values (4) BYPASS-Press this button 'ONCE' to off Comp/Exp function, direct signal takes place, LCD will display "BYPASS", press this button second time to restore previous function &...
-
Page 7: Rear Panel
Any MIDI data sent to the DS202 (sequencer, MIDI footswitch, etc) are received via the MIDI IN jack. For example, when you wish to use the DS202 as an effects devices for our guitar rack, you can connect the MIDI IN jack to a MIDI footswitch that allows for selecting program presets. If your rack includes ano -ther MIDI effects devices (e.g. -
Page 8: Application
4. APPLICATION 4.1 Connection & Application in Aux bus by DS202 By using the DS202 in an aux bus of your mixing console, to use the DS202 in the aux bus, the unit must be wired as follows: MASTER TIME... -
Page 9: Appendix
5. Appendix 5.1 TECHNICAL SPECIFICATIONS Analog Inputs Connectors XLR and 1/4" jack Type RF filtered, servo balanced , 20kOhms unbalanced Impedance 40kOhms balanced, 20kOhms unbalanced Nominal Operating Level -20dB to +4dB Max. Input Level +16dB at +4dB nominal level, +2dB at -20dB nominal level Analog Outputs Connectors XLR and 1/4"...
