- Page 1 Instruction Manual...
- Page 2 The consignee must make all shipping claims. The DS100 fits into a standard 19" rack unit of space (1 3/4"). Allow at least an additional 4" depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and ventilation.

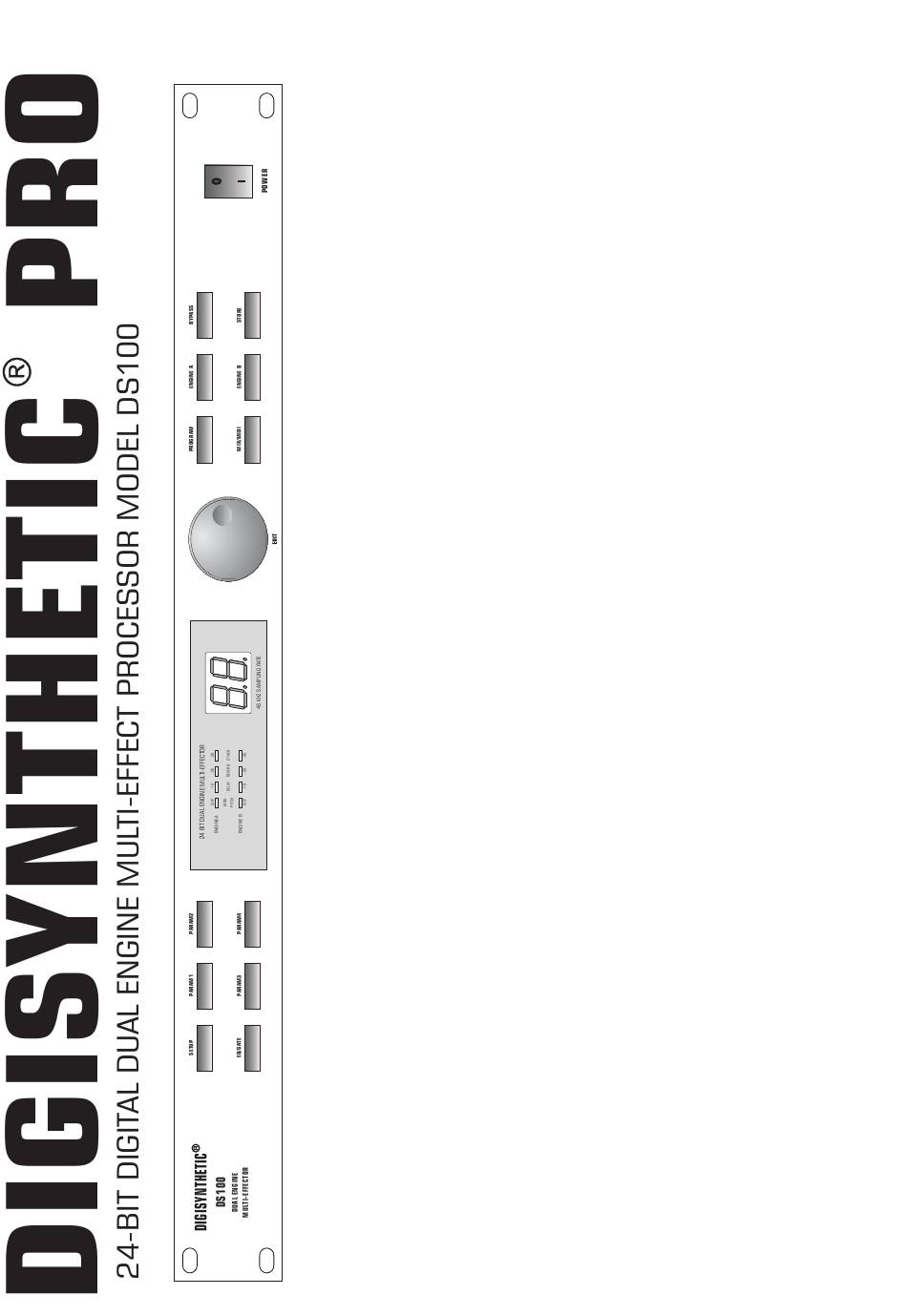

- Page 3 DIGISYNTHETIC PRO 24-BIT DIGITAL DUAL ENGINE MULTI-EFFECT PROCESSOR MODEL DS100 SETUP PARAM1 PARAM2 PROGRAM ENGINE A BYPASS CLIP ENGINE A D 100 DELAY REVERB OTHER PITCH EQ/GATE PARAM3 PARAM4 ENGINE B MIX/MIDI ENGINE B STORE CLIP POWER Dual-Engine processing power...
-
Page 4: Table Of Contents
3.7 EQ and Noise Gate Adjustments 3.8 Editing Engine A and B Modules 4. Effects and Parameters 4.1 Modulation Effects 4.2 Pitch Shifters 4.3 Delay 4.4 Reverb 4.5 Other Effects 5. Appendix 5.1 Resetting the DS100 6. Specifications Page 3... -
Page 5: The Front Panel
This button selects the Engine A effect module. Once this button is pressed, use the <Program/ -Data> wheel to change the effect used in this module. 9)Bypass-This button is used to Bypass all of the digital effects in the DS100 and allow the original dry signal to pass through the DS100. 10)Power on/off. -
Page 6: The Rear Panel
-mance, set this level so the Input level indicators(located on the front panel) occasionally light the red LEDs. 6)Right Input-This is the Right Input jack for the DS100 that when used with Left input will preserve stereo imaging. 7)Left/Mono Input-This Input jack is used for the Left or Mono input. When only the Left input jack is used, the signal is sent to both Left and Right DS100 inputs. -
Page 7: Storing Changes
When the DS100 is in program mode, you can move from one program to the next by either using the <Program /Data> wheel, the optional Digitech FS-300 footswitch or incoming MIDI program change commands from another device such as a sequencer or keyboard. -
Page 8: Selecting The Midi Channel And Midi Cc Information
DELAY REVERB OTHER PITCH ENGINE B CLIP This now indicates that the Dry signal has been turned Off creating a 100% Wet signal globally in the DS100. To exit this mode, press the button. <Program> Note: The Dry path will automatically be turned off when either a Tremolo, Panner, Vocoder, Compressor, Rotary Speaker or Reverse Reverb effect is used in a program, since the dry signal is already included in these effects. -
Page 9: Editing Engine A And B Modules
Adjusting the EQ The DS100 offers a three band EQ with Lo EQ, Parametric Frequency, Parametric Level and Hi EQ parameters. To adjust any one of these four, perform the following procedure: Press the <EQ/Gate> button once and the display will briefly read:... -
Page 10: Effects And Parameters
Program mode. 4. Effects and Parameters This section provides you with a detailed description of the Digital effects in the DS100 and their parameters and values. A complete list of these effects is also printed on the top of the DS100. -
Page 11: Pitch Shifters
Level- The DS100 offers three different Delay effects including: Mono, Stereo and Ping Pong, offering ultimate flexi -bility in digital delay applications. The DS100 also offers a Karaoke delay effect. The parameters and their values are as follows: When Delay effects are use in Effect Configuration 1(which is a Whole effect module), longer delay Note: times are available. -
Page 12: Reverb
(Half=700 milliseconds and Whole=1000 milliseconds) D-3 (Half=1000 milliseconds and Whole=2000 milliseconds) This parameter controls the length of the Delay Coarse time Range is from. Delay Coarse 1 (which equals 100 milliseconds) to 2. 0 (which equals 2 seconds). This parameter controls the length of the Delay Fine time. Range is from Delay Fine 0 to 99 milliseconds. -
Page 13: Other Effects
This parameter allows you to set the overall level of the selected effect. Range Level is from 0 to 100. 5. Appendix This section provides you with information to Factory Reset the DS100, a Specification page and a Program list. Page 12... -
Page 14: Resetting The Ds100
Now release the button and immediately press the button and the DS100 will proceed <Program> <Config> to reset. In the process of resetting, the DS100 will briefly display the current software version number and then return to program mode. Page 13... -
Page 15: Specifications
6. Specifications 20-20kHz+/-0.5dB Frequency Response: 98dB(A-Weighted ref=Max signal 22kHz measurement bandwidth) Signal-to-Noise Ratio: THD: Less than 0.008% Memory Allocations: 99 User-99 Factory Programs 48kHz Sampling Rate: 24 bit,128 oversampled A/D Converter: 24 bit, 128 oversampled D/A Converter: External Signal Path Width: 24 bits Internal Signal Path Width: 24 bits...
