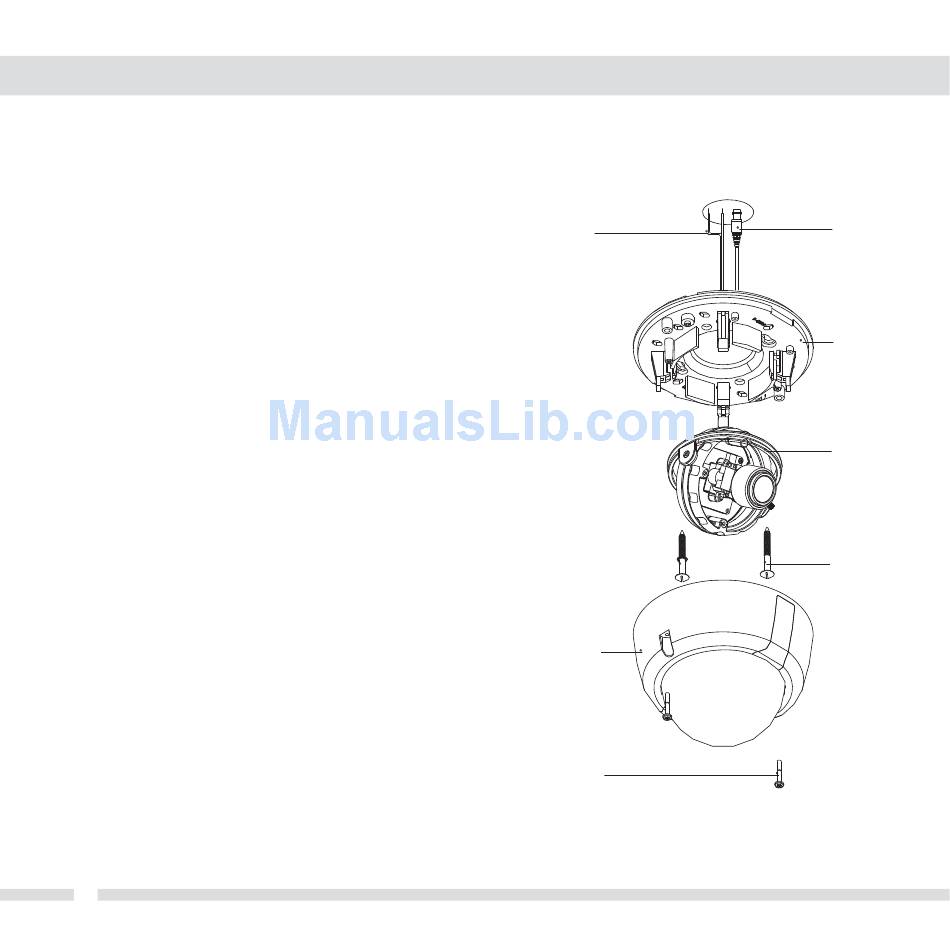

INSTALLATION *
A. Loosen the Fixing Screws (A), using the L-Key.
B. Separate the Upper Case (B) from the Base (F).
C. Loosen the Inner Screws (C), using a screw driver.
D. Detach the Gimbal (D) from the Base (F).
E. Cut a hole in the ceiling for routing the cables.
F. Place the Base (F) horizontally against the ceiling.
Drill the screw holes at the two marked positions.
G. Pass the Power Cable (E) and Video Cable (G) from the
camera unit through the cable hole in the ceiling.
H. Align the screw holes of the camera unit with the
holes in the ceiling. Secure the camera with
the two Inner Screws (C).
I. Fix the Gimbal (D) to the Base (F).
J. Install and adjust the camera unit.
K. Adjust the dome to show the lens through the
camera window.
L.. Attach the Upper Case (B) and the Base (F).
M. Tighten the Fixing Screws (A) to fasten the Upper
Case(B) to the Base (F).
8
E
B
A
G
F
D
C
