Front Panel; Remote Control Receiver; Display - DCS Vivaldi Upsampler User Manual

dCS Vivaldi Upsampler User Manual
F P
RONT ANEL
A B

Remote Control Receiver

Aim the remote control handset towards the receiver (A) for best sensitivity.

Display

In normal use, the selected input appears at the top left corner of the display (B). To the right of this,
the input word length / sample rate and output sample rate appear. The sample rates are replaced by
No Input
when a recognisable data stream is not detected.
The Filter, Sync Mode and Clone icons appear on the bottom row.
While the Upsampler is streaming data via the
the bottom of the display, with the play/pause icon and the elapsed track time at the right hand side.
Details of the menu displays are shown in the Menu section on page 27.
To avoid unnecessary display wear, we recommend switching off or setting the unit to
Sleep mode at the end of the listening session.
Filename: Vivaldi Upsampler Manual v1_0x.docx
CD E F G H

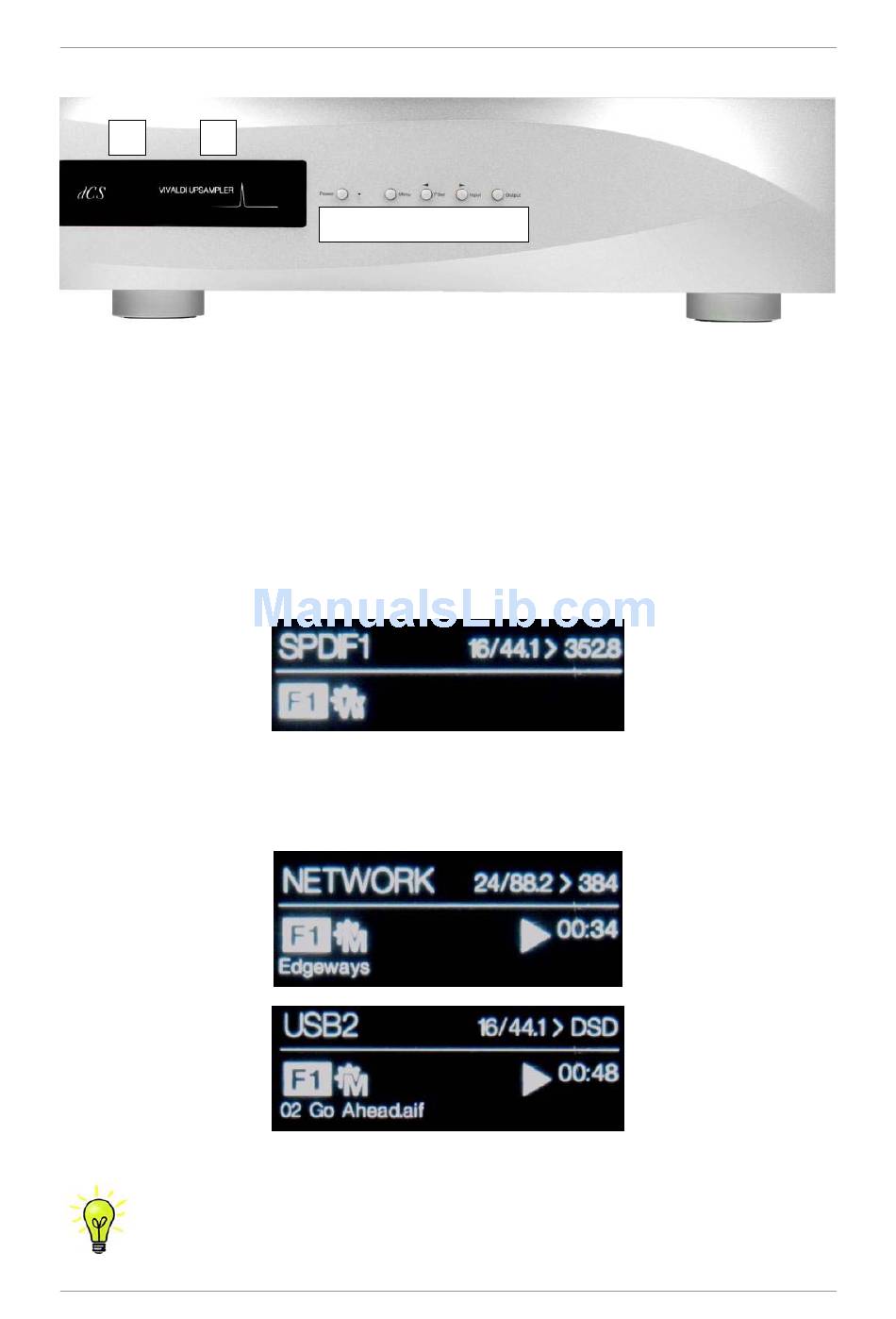

Figure 6 – Front panel
