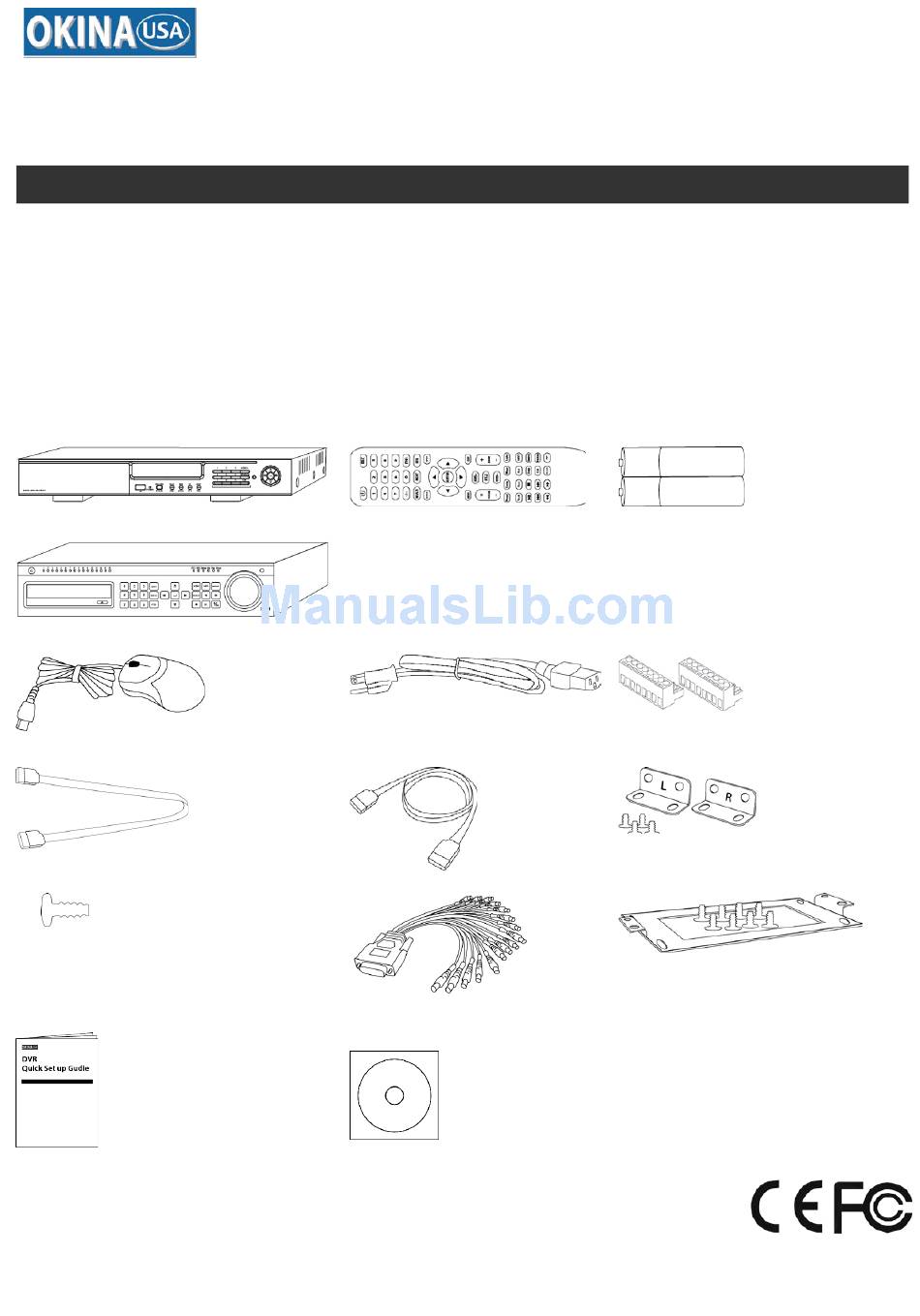

HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide PANEL DEFINITION 1. Front Panel – 4 / 8 CH. Item # Label Name Function Connect USB thumb drive or mouse POWER Power indicator REC / FOCUS Manual record / FOCUS adjustment(PTZ)
Page 3
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide 2. Front Panel – 16 CH. Item # Label Name Function Power Switch Power on/off When recording, the light is blue When HDD is writing and reading , the light is blue...
Page 4
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide 3. Back Panel – 4 CH. Item # Label Name Function ALARM OUT Alarm outputs; connect to external alarm ALARM IN Alarm inputs for connecting sensors Connect to speed dome Connect to keyboard...
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide 5. Back Panel – 16 CH. Item # Label Name Function HD SD Video in HD SDI video signal inputs. Alarm in Alarm Inputs for connecting sensors HDMI port Connect to high-definition display device...
Page 6
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide Item # Label Name Function To enter into auto dwell mode Switch To switch the output between BNC and VGA To move cursor in setup or pan/title PTZ Direction button Exit Button...
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide 3)Under Backup mode: Single click left button to select item, single click right button to jump back to previous page. 4)Under PTZ mode: Single click left button to operate PTZ function, single click right button to jump back to previous page.
Page 8
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide Enable the Channels to turn on Motion Detect Record. **Motion Schedule Default: is set to Full Time motion recording on all channels. If Schedule Motion Recording needs to be changed: To modify motion recording schedule click on the pencil icon located on the upper right of the screen, then click on desired days and times to schedule recording when motion trigger.
Page 9
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide NETWORK SETUP: STATIC IP ADDRESS & DDNS Part 1. Static IP Address 1. Enter Main Menu screen by pressing the MENU 2. Select Setup. button on the front panel of the DVR.
Page 10
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide Part 2. DDNS 1. Continue Part 1: Select “Other Setting” from the Tab bar and turn on DDNS. 2. Select DDNS Type and pick one website from the given field to register your Host Domain Name.
Page 11
HDRR-04 / HDRR-08 / HDRR-16 Quick Setup Guide DDNS HOSTING SERVER Item # DDNS Server Website Item # DDNS Server Website www.dyndns.com www.dvrdydns.com www.meibu.com www.mintdns.com www.no-ip.com www.autoddns.com MOBILE APP: SUPER LIVE PRO *For technical specification, please refer to the User Manual.
