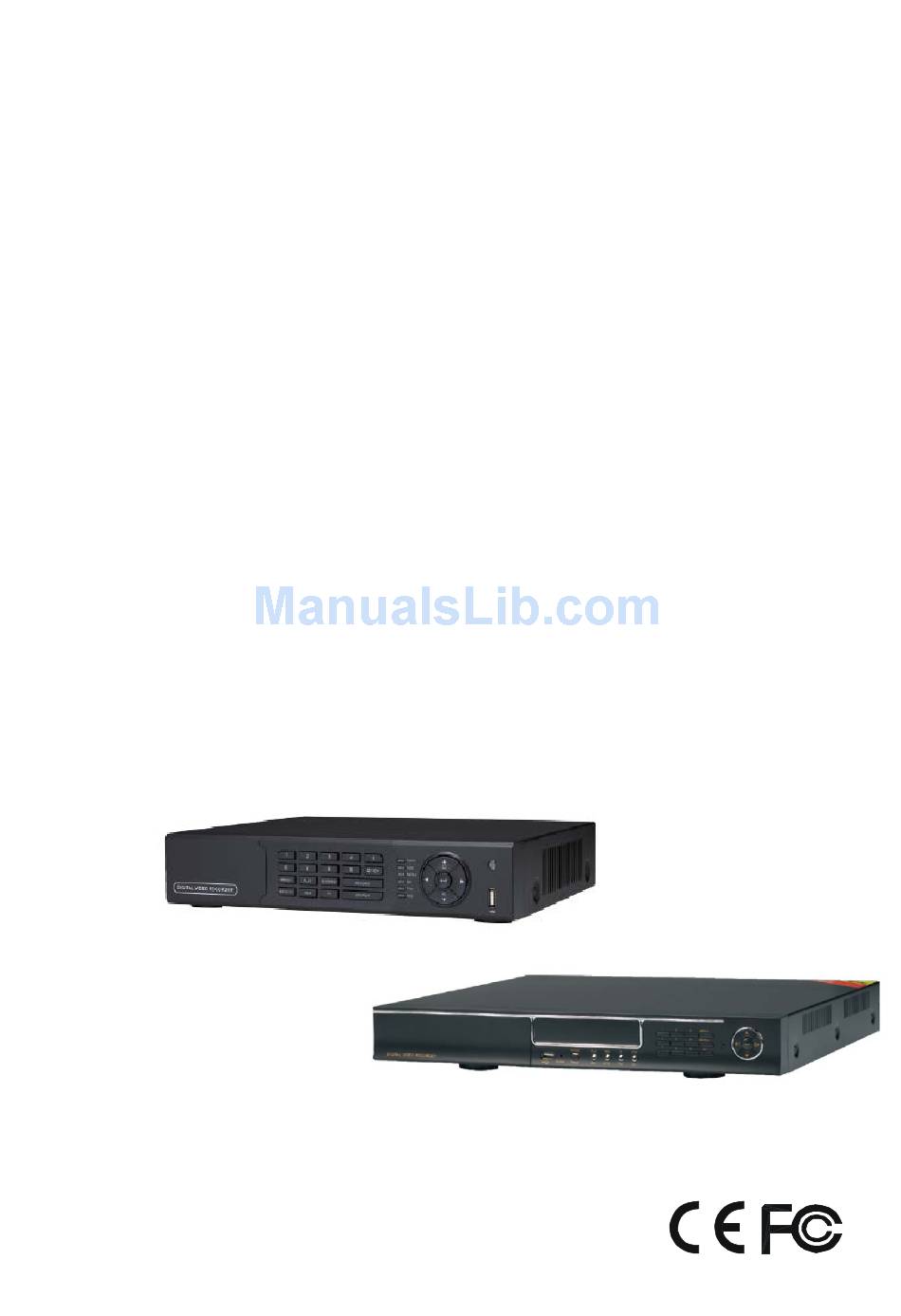

- Page 1 Thank you for purchasing our product. Please read this user’s manual before using the product. Change without notice 4/8/16 CH Analogue HD- TVI DVR Quick Guide Type A: 1 SATA (TVD-04 / TVD-08 / TVD-16) Type B: 2 SATA (TVD-16-1U)
- Page 2 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide CAUTION Please read this user manual carefully to ensure that you can use the device correctly and safely We do not warrant all the content is correct. The contents of this manual are subject to change without notice ...
- Page 3 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide Main Features COMPRESSION FORMAT • Standard H.264 compression with low bit rate and better image quality LIVE SURVEILLANCE • Supports HDMI/ VGA output • Supports channel security by hiding live display •...
-
Page 4: Front / Rear Panel Instructions
TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 1. Front / Rear Panel Instructions 1.1 Front Panel (Type A): TVD-04 / TVD-08 / TVD-16 Notice: The pictures are only for reference; please make the object as the standard. - Page 5 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide Front Panel (Type B): TVD-16-1U 16CH Label Name Function Connect USB thumb drive or mouse POWER Power indicator REC / Manual record / FOCUS adjustment(PTZ) FOCUS PLAY / IRIS Enter Playback/ IRIS adjustment (PTZ)
-
Page 6: Rear Panel Instructions
TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 1.2 Rear Panel Instructions Type A: TVD-04 / TVD-08 / TVD-16 Rear Panel for 4 CH Rear Panel for 8 CH Rear Panel for 16 CH Name Descriptions DC12V DC12V Power Input. - Page 7 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide Type B: TVD-16-1U Rear Panel for 16-ch Item Label name Function RS485 Connect to speed dome or keyboard POWER INPUT DC12V To connect external USB devices like USB flash, USB HDD for backup or update firmware;...
-
Page 8: Remote Controller (Optional)
TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 1.3 Remote Controller (Optional) It uses two AAA size batteries. • Open the battery cover of the Remote Controller. • Place batteries. Please take care of the polarity (+ and -). - Page 9 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 1.4 Mouse Control ◆Connection: Please connect the USB mouse to USB port on the front or back panel. ◆Mouse functions： 1）Under LIVE mode： On every channel，you could double click the left button to switch FULL SCREEN and double click again to switch back to original split mode.
-
Page 10: Startup And Shutdown
TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 2. Startup and Shutdown Startup Step1: Connect with the source power. Step2: The device will boot and the power LED would turn blue. Step3 A WIZARD window will be pop-up Shutdown You can shut down the device by using IR remote controller and mouse. - Page 11 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide Record stream Please setup rate, resolution, quality, encode and max bit stream When you use the TVI Series DVR, as DVR received the signal from camera, DVR will automatically do the video resolution depending on camera type discrimination.
- Page 12 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide 4. Wizard for HDD setup You can check your HDD information through this tab. If your HDD was recently installed, select the HDD from the list to format it. Click on Exit to leave the wizard 5.
- Page 13 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide APPENDIX_A Compatible Devices 1. Compatible USB drive after test. Brand Capacity A-DATA 512MB, 1G, 2GB Transcend Kingston Toshiba SanDisk 2. Compatible external USB CD/DVD writers after test Brand Model GH24NS90 3.
-
Page 14: Appendix_B Calculate Recording Capacity
TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide APPENDIX_B Calculate Recording Capacity User can calculate the required size of hard disk according to the total recording duration and DVR recording settings. The DVR uses fixed video bit rate. The below are the details at different settings for CBR. - Page 15 TVD-04 / TVD-08 / TVD-16 / TVD-16-1U Quick Setup Guide APPENDIX_C SPECIFICATIONS Type A: TVD-04 / TVD-08 / TVD-16 Model TVD-04 TVD-08 TVD-16 Compression format H.264 Main Profile Video output VGA × 1, HDM I× 1 Video Input BNC × 4 BNC ×...
