HD SDI H.264 DVR – 4 CH.
Quick Setup Guide

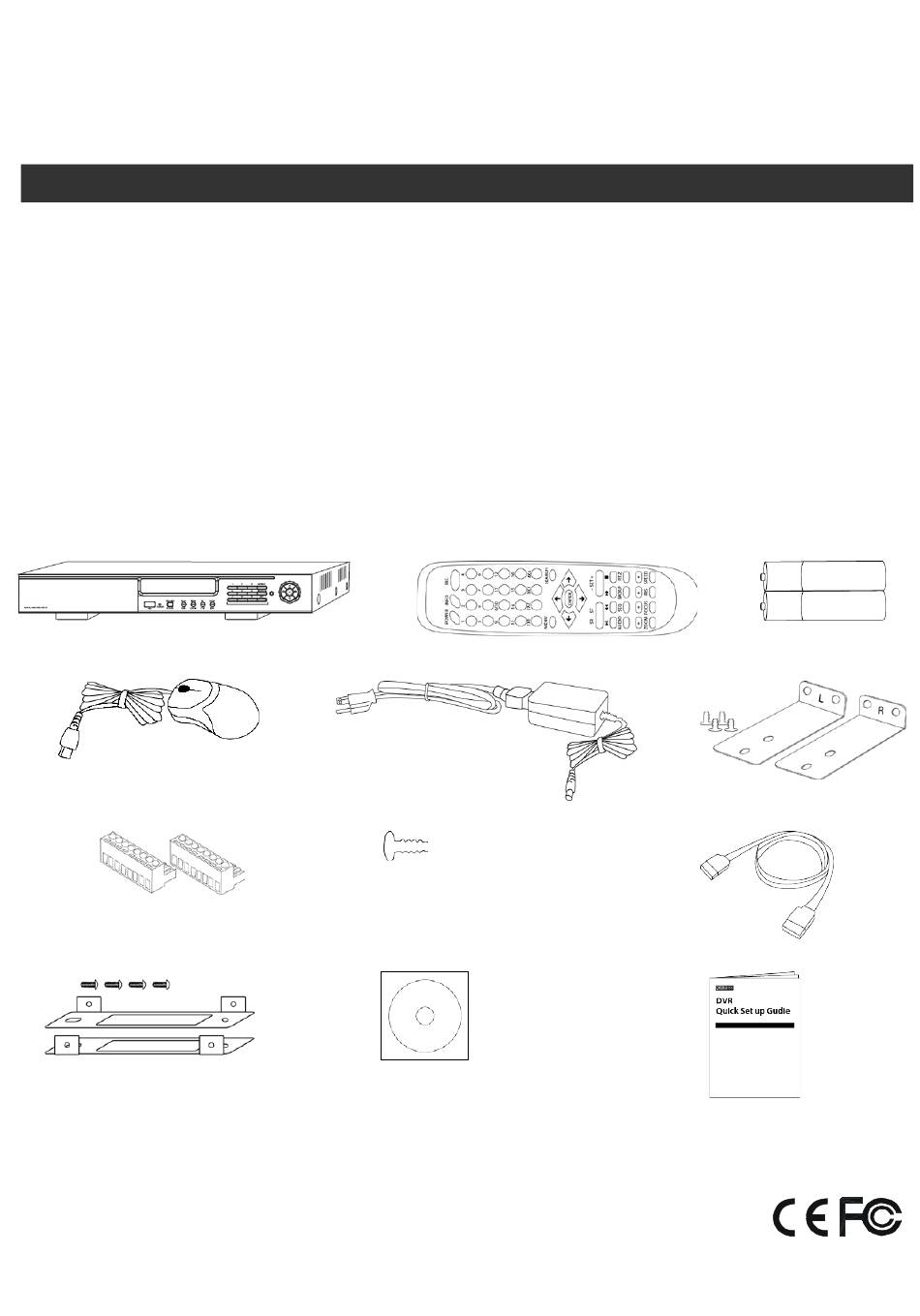

PACKAGE CONTENTS
A.
One (1)
B.
One (1)
C.
Two (2)
D.
One (1)
E.
One (1)
F.
Two (2)
G.
Two (2)
H.
Eight (8)
I.
Two (2)
J.
Two (2) sets
K.
One (1)
L.
One (1)
A.
D.
G.
J.
Hard Drive Mounting Brackets
x 2 sets
Thank you for purchasing our product.
Please read this quick guide before using the product.
Change without notice.
HDRS-04-1U DVR
Remote Controller
AAA Battery for Remote Controller
USB Mouse
12V DC w/ Power Cord
Rack Mount Ear w/ Screws
8-Screw on Terminal Connector
Hard Drive Screws
SATA Cable Inside DVR
Hard Drive Mounting Bracket set w/ Screws
Quick Set up Guide Book
CMS Software & Manual CD
E.
H.
K.
B.
x 8
1
HDRS-04-1U Quick Setup Guide
HDRS - 04 - 1U
*Note: Any Return Must Include All Components
**Recommend to use UPS Battery Backup.
C.
F.
I.
Inside the DVR
L.
MADE IN TAIWAN
x 2
R201304-V10
