Page 1: User Manual

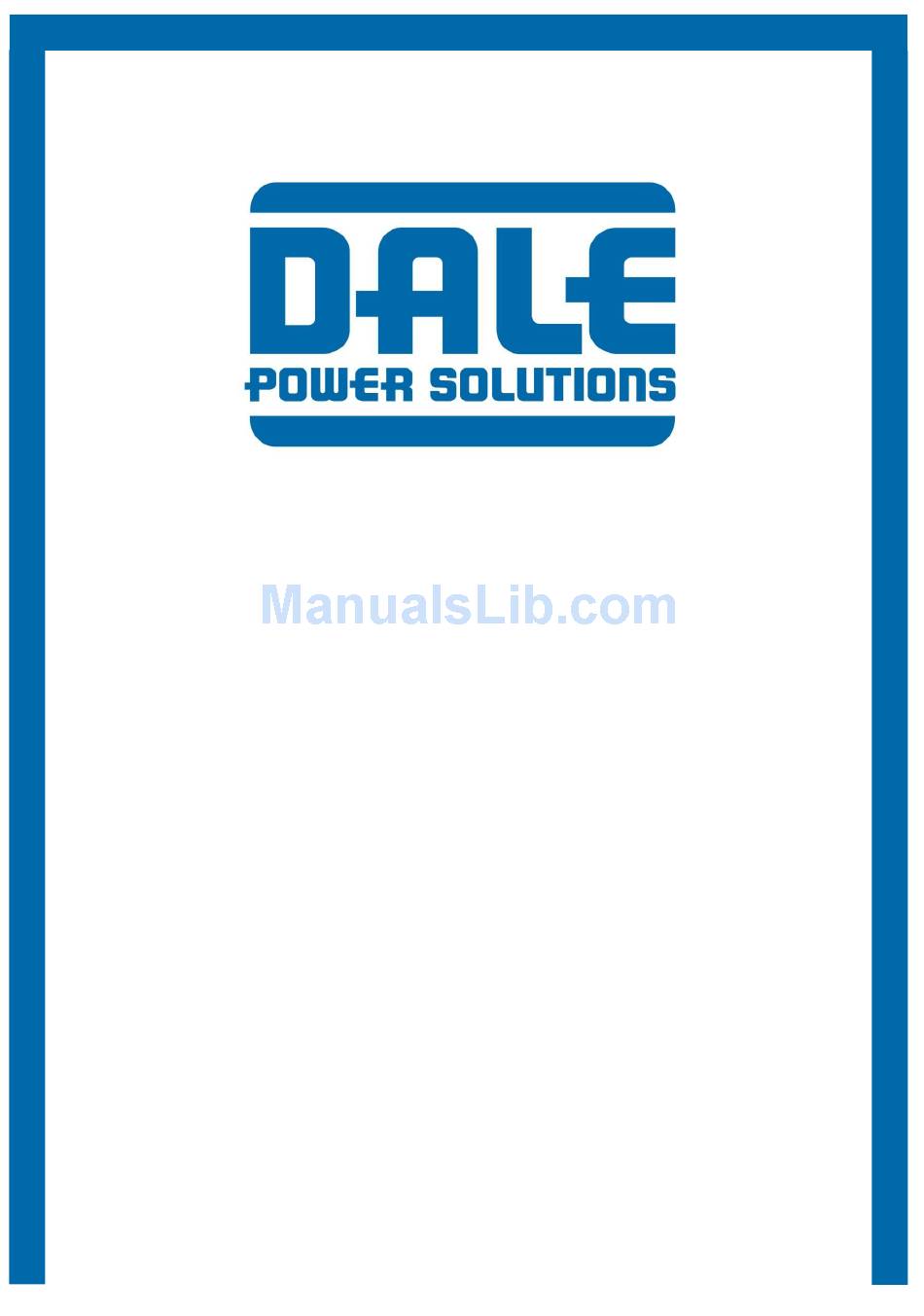

Dale Power Solutions Ltd User Manual E200 Series UPS E206(E) E2010(E) Dale Power Solutions Ltd Salter Road, Eastfield Industrial Estate, Scarborough, North Yorkshire, YO11 3DU, UK info@dalepowersolutions.com | www.dalepowersolutions.com | +44 (0) 1723 583511 S5264FU02 Rev 3... - Page 2 Dale Power Solutions Ltd User Manual Dale Power Solutions Ltd. own the copyright to this document, which may not be copied, reproduced or disclosed to a third party without written permission. Dale Power Solutions Ltd. reserves the right to make changes in specification without notice or liability. All information is subject to Dale Power Solutions Ltd.
-
Page 3: Table Of Contents
Dale Power Solutions Ltd User Manual User Manual Contents Safety..............................5 EMC ..............................5 Warning symbols ..........................5 Product description ..........................6 Applications ............................6 Product range ............................6 System block diagram .......................... 7 Features .............................. 7 Installation ............................. 8 Siting considerations .......................... - Page 4 Dale Power Solutions Ltd User Manual Troubleshooting ..........................23 Appendix 1 Signals options ........................ 24 RS232 serial port ..........................24 Contact closure (basic monitoring and control) ................... 24 SNMP card (advanced monitoring and control)................... 25 Relay card (advanced monitoring and control) ..................25 Appendix 2 Parallel board signals ......................
-
Page 5: Safety
Safety instructions in this manual are supplementary to local safety instructions. Dale Power Solutions does not accept any liability caused as a result of failure to follow safety instructions. Please note the following: Do not operate the UPS in an environment or application outside of that detailed in the user manual. -
Page 6: Product Description
This UPS series provides reliable AC backup power to various types of equipment, for example computer centres, network management centres, auto control systems, and telecommunication systems. Product range The following table lists the models available in the E200 series. Models with an E suffix are designed for operation with an external battery. Capacity... -
Page 7: System Block Diagram
Figure 1 Single unit block diagram Features ■ E200 series units have an intelligent online sine-wave output with power factor correction. High frequency double-conversion and a wide input voltage range ensure continuous output for areas with poor power supply regulation. -
Page 8: Installation
Dale Power Solutions Ltd User Manual Installation Siting considerations Before unpacking and installing the unit, consider the following: ■ DO NOT expose the UPS to high temperatures, water ingress, flammable or corrosive gas, dust, direct sunlight or explosives. ■ Locate the UPS indoors on a level surface as close as possible to the equipment it will be powering to minimise cable voltage drops. -
Page 9: Operation From A Generator
Dale Power Solutions Ltd User Manual User Manual Operation from a generator As a guide we recommend that the load capacity should be less than 30% of the generator capacity, and the generator rating should be 1.5 to 2 times the rating of the UPS, depending on the type of generator used. -
Page 10: Rear Panel Layout
Dale Power Solutions Ltd User Manual Rear panel layout Figure 3 Rear panel layout …………………………………………………………………………………………………………... -
Page 11: Wiring The Ups
Dale Power Solutions Ltd User Manual User Manual Wiring the UPS Before connecting the UPS, read the siting considerations above and check you have selected breakers and cables with the correct ratings. WARNING! BEFORE ATTEMPTING TO WIRE THE UPS ENSURE ALL BREAKERS ARE IN THE OFF POSITION. -
Page 12: Wiring Units In Parallel
Dale Power Solutions Ltd User Manual 10. If your unit has an SNMP or relay contact card fitted or you plan to use the RS232 port or other standard signals, see Appendix 1 Signals options on page 24. Wiring units in parallel You can operate 2, 3 or 4 units in parallel. - Page 13 Dale Power Solutions Ltd User Manual User Manual 4. Locate a locking plate over each pair of connectors and secure in place. This provides extra protection against accidental removal of a CAN bus cable. 5. Optional connection. You can control and monitor all units using the RS232 port on one UPS. To do this, connect the pink RS485 socket of one unit to the green RS485 socket of the next unit and so on until all units are connected in a daisy-chain.
-
Page 14: Operation
Dale Power Solutions Ltd User Manual Operation Working modes The UPS has four distinct modes of operation: ■ On-line mode ■ Bypass mode ■ Battery mode ■ ECO mode Each operating mode is described below. On-Line mode This is the default mode of operation in which the load is supplied via the inverter when the a.c. input and load are within their normal ranges. -
Page 15: Before Switch On
Dale Power Solutions Ltd User Manual User Manual Before switch on Before turning on the unit for the first time or after any wiring or battery changes: 1. Read the section above on working modes. 2. Check all the wiring. -
Page 16: Switching Off The Ups
LCD and LEDs turn off). Swapping out a UPS on a live system E200 series units are fitted with a bypass box that allows you to swap a UPS without the need to do any wiring. Note: Always use a PH2 Phillips screwdriver and not a pozidrive (PZ) screwdriver. -
Page 17: Front Panel Controls And Indicators
Dale Power Solutions Ltd User Manual User Manual Front panel controls and indicators The front panel controls and indicators are shown in Figure 4. Using the buttons, LEDs and the menu structure displayed on the LCD panel you can: ■... -
Page 18: Navigating The System Menu
Dale Power Solutions Ltd User Manual Navigating the system menu To access a menu item: 1. Press ◄ or ► until the following list is displayed: Figure Status Setting Command 2. Press Ent. An arrow ( ) appears next to Figure. The arrow must be next to the menu item you wish to enter. -
Page 19: Setting Menu Items
Dale Power Solutions Ltd User Manual User Manual Status Status Status Status Code/Status Code/AAlarm Code/BAlarm Code/CAlarm 0x00 0x0000 0x0000 0x0000 0x000000 0x0000 0x0000 0x0000 Version information Status Version LCD Ver:D000B001 DSP Ver:D000B001 Setting menu items These menu items allow you to change the UPS settings. -
Page 20: Command Menu Items
Dale Power Solutions Ltd User Manual Battery set menu items Setting Setting Setting Setting Battery Battery Battery Battery 1.60 2.30 Enable ►EOD ►Batt-G ►Boost ►Boost Batt Num Batt-C Float 2.20 Revise set menu items Caution: Do not adjust these menu items as they change the calibration of the UPS. -
Page 21: Lcd Display Messages
Dale Power Solutions Ltd User Manual User Manual LCD display messages Display Meaning CurState: Init Initialisation No-Out No output Bypass UPS in bypass mode Mains Rectifier working Battery Battery invert Testing Battery test in progress Startin Starting CurState: ECO UPS running in ECO power saving mode... -
Page 22: Maintenance
Dale Power Solutions Ltd User Manual Maintenance At normal room ambient temperature the fans will operate continuously for 20,000 to 40,000 hours. Increased ambient temperatures will shorten this lifetime. Periodically ensure that there is air is blowing out of the rear of the unit. -
Page 23: Troubleshooting
Dale Power Solutions Ltd User Manual User Manual 2. Press the ON button. Check the indicators, LCD and UPS inverter, and ensure they are working normally. 3. When the UPS is working in on-line mode, perform a battery test (see Command menu items on page 20). -
Page 24: Appendix 1 Signals Options
Contact closure (basic monitoring and control) E200 series units are fitted with a standard DB9 socket on the rear panel (labelled ‘Contact Closure’). The connector provides access to a set of dry contacts giving you basic monitoring and control functionality. -
Page 25: Snmp Card (Advanced Monitoring And Control)
Dale Power Solutions Ltd User Manual User Manual SNMP card (advanced monitoring and control) If your unit is fitted with the optional SNMP card (located in the Intelligent Slot on the rear panel), connect it to your computer with a network cable (see Figure 7). - Page 26 Dale Power Solutions Ltd User Manual Relay contact specifications: Parameter Value Maximum switched voltage 277 Va.c. or 30 Vd.c. Typical switched voltage 5 to 12 Vd.c. Maximum switched current NO: 10 A NC: 3 A Maximum switched power NO: 1400 VA, 150 W...
-
Page 27: Appendix 2 Parallel Board Signals
Dale Power Solutions Ltd User Manual User Manual Appendix 2 Parallel board signals The parallel board has three sets of signals: ■ CAN bus (DB9) connectors. These must be connected as described in Wiring units in parallel on page 12. -
Page 28: Appendix 3 Specifications
Dale Power Solutions Ltd User Manual Appendix 3 Specifications Electrical Model E206(E) E2010(E) Capacity (Int. battery or 20 cell external battery) 6 kVA, 4.8 kW, 0.8 pf 10 kVA, 8 kW, 0.8 pf Capacity (16 or 18 cell external battery) 6 kVA, 4.2 kW, 0.7 pf... - Page 29 Dale Power Solutions Ltd User Manual User Manual Output Overload 105% to 110%, 1 h 110% to 125%, 10 min 125% to 150%, 1 min ≥150%, 200 ms Overload for bypass 125% Crest factor 6 kVA, ≥88%: 10 kVA, ≥90% Efficiency in normal mode 6 kVA, ≥85%: 10 kVA, ≥81%...
-
Page 30: Mechanical
Dale Power Solutions Ltd User Manual Mechanical Height (mm) Width (mm) Depth (mm) Net weight E206: 70 kg E206E: 30 kg E2010: 80 kg E2010E: 40 kg Audible noise <55dB (1m) Colour Black Display LCD and LED Ingress protection IP20... -
Page 31: Appendix 5 Ups Alarm Tables
Dale Power Solutions Ltd User Manual User Manual Appendix 5 UPS alarm tables 01: (Running) 0x01 No output 0x02 On bypass 0x03 Online 0x04 On battery 0x05 Battery self-testing 0x06 Inverter starting 0x07 ECO mode 0x08 0x09 Maintenance bypass 0x0A... - Page 32 Dale Power Solutions Ltd User Manual 00: no out; 01: bypass; 10: inverter 0 (hold) 0 (hold) 03: (Alarm A) Rectifier fault Rectifier over temperature Inverter over temperature Rectifier over current Assistant supply 1 fault Assistant supply 2 fault Input SCR fault...
- Page 33 Dale Power Solutions Ltd User Manual User Manual Input frequency over limit Input voltage over limit 0 (hold) 0 (hold) 04: (Alarm B) Inverter fault Bridge cross of inverter Invert SCR short circuit Invert SCR open circuit Bypass SCR short circuit...
- Page 35 Manual...
