Summary of Contents for Bauknecht CPB1200

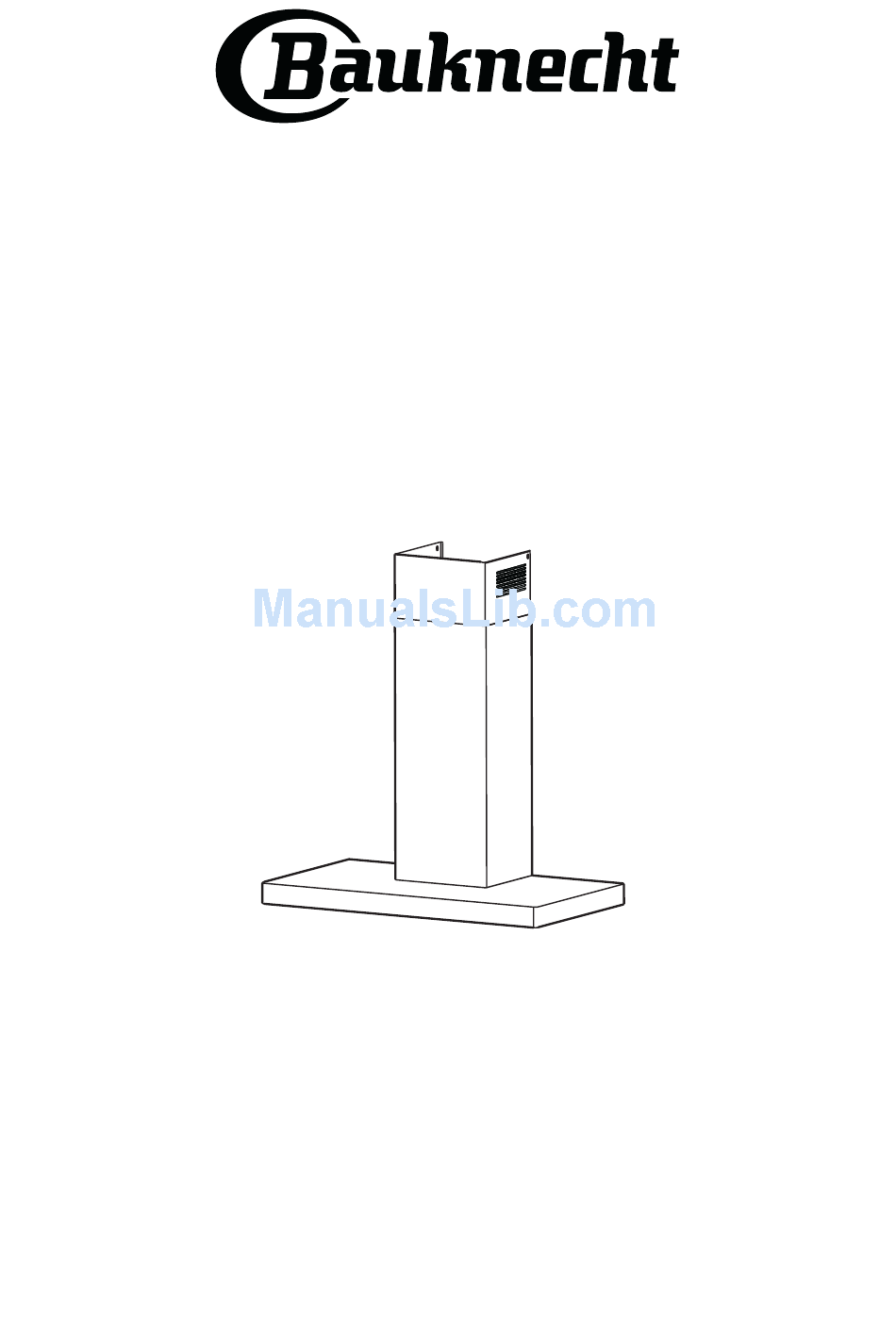

- Page 1 Instructions Manual Cooker Hood CPB1000 CPB1200...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................8 MAINTENANCE ..................................9... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions * Dimensions of the hood in ducting version. ** Dimensions of the hood in recycling version. Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Directioned grid ø 125 mm Reducer Flange ø... -
Page 5: Installation
INSTALLATION Drilling the Wall and Fixing the Brackets 7.2.1 Draw the following on the Wall: • a Vertical line up to the ceiling or top surface, at the centre of the area in which the Hood is to be fitted; •... - Page 6 Hood body installation • Before hooking the hood body it is necessary to tighten 2 Vr screws placed in the fixing points of the body. • Hook the hood body on the 12a screws. • Tighten completely 12a support screws. •...
- Page 7 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
-
Page 8: Use
Control board Function Display Switches the extractor motor on and off at the Indicates the selected speed. latest selected speed Decreases the suction speed. Increases the suction speed. By pressing this key it is possible to activate HI appears. The spot down on the right side the intensive speed from any previously se- flashes once a second. -
Page 9: Maintenance
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type (not included). • Do not place the remote control near to heat sources. •... - Page 10 Metal grease filters The Filters can be washed in the dishwashing. They need to be washed when FF-sign appears on the display or in any case every 2 months, or even more frequently in case of particularly inten- sive use of the hood. Alarm reset •...
- Page 11 Charcoal filter (recycling version) • This filter cannot be washed or regenerated. It must be replaced when the EF appears on the display or at least once every 4 months. Activation of the alarm signal • In the recycling version hoods the filter saturation alarm must be activated during the instal- lation or later.
- Page 12 436005895_ver1...
