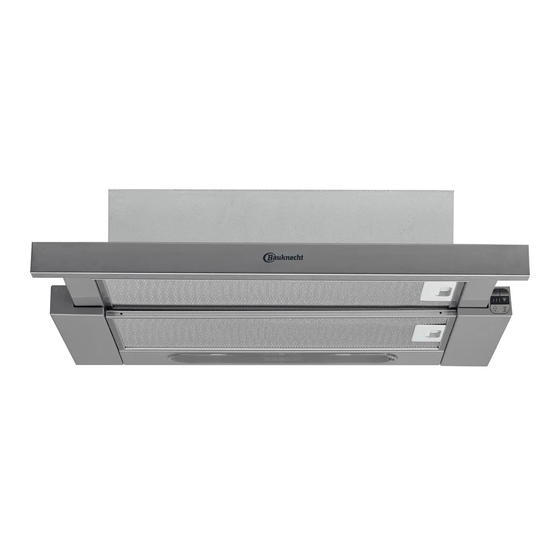

- Page 1 Bauknecht AG Dammweg 21 5600 Lenzburg www.bauknecht.ch Instructions for use DBAH 62 LT X Verkauf Tel. 0848 801 002 Fax 0848 801 017 Kundendienst Tel. 0848 801 001 Fax 0848 801 003 Ersatzteile Tel. 0848 801 005 Fax 0848 801 004...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS These instructions shall also be available on website: docs.bauknecht.eu. YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. -
Page 3: Installation
Regular cleaning and maintenance is essential to correct functioning and good performance of the • appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease. Regularly clean or replace the lters. Failure to observe the instructions for cleaning the hood and replacing the lters may result in a re. •... -
Page 4: Safeguarding The Environment
SAFEGUARDING THE ENVIRONMENT Disposal of packing The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal. Scrapping the product - This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). -
Page 5: Maintenance
CLEANING -Never use steam cleaning equipment. WARNING: - Disconnect the appliance from the power supply. IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth. •... -
Page 6: Carbon Filter
CARBON FILTER It captures and neutralizes unwanted cooking odours. Change the carbon lter every 4 months Fitting or changing the carbon lter Pull out the steam de ector. Remove all the grease lters (refer to the section “grease lters”). Install the carbon lter covering the motor compartment. Note: Proceed in reverse order to remove. - Page 7 INSTALLATION PRELIMINARY ASSEMBLY INSTRUCTIONS Wall unit interior 600 mm min Wall unit interior 900 mm min Adjacent wall units Adjacent wall units centre line 65 cm (gas or combi cookers) 50 cm (electric cookers) hob surface This type of hood must be installed inside a wall unit or similar support. INSTALLATION ASSEMBLY INSTRUCTIONS The instructions below, to be carried out in the order in which they are numbered, refer to the drawings on the last few pages of this manual, which are marked with the corresponding numbers.
- Page 8 DESCRIPTION AND USE OF HOOD Control panel. Grease lter. Grease lter spring release handles. Lighting Pull-out steam de ector Extractor unit body. OFF! Control panel Light ON/OFF button Timer ON/OFF button: time-delayed switch-o of the selected extraction speed (power): Extraction speed (power) 1: 20 minutes Extraction speed (power) 2: 15 minutes Extraction speed (power) 3: 10 minutes Intensive extraction speed (power): 5 minutes.
- Page 10 16mm 20mm...
- Page 11 (Right) (Right) (Left) (Left) ³ 15mm 4 x Ø2mm 2 x Ø 6mm 150mm 180mm (Right) (Left) (Right) (Left)
- Page 12 (Right) (Right) (Left) (Left) ³ 15mm ³ 15mm 4 x Ø2mm 2 x Ø 6mm 150mm 180mm (Right) (Right) (Left) (Left)
- Page 13 (Left) (Right) (Right) (Left) Ø 4,5x16 Ø 3,5x9,5...
- Page 14 (Left) (Left) (Right) (Right) Ø 3,5x5...
- Page 15 Clack! Clack!
- Page 19 Printed in Italy 04/2018 400011245139...
