LITTLE WONDER
HPV
High Performance Vac
MODEL:
5612-00-59
Operators Manual 4167415

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5612-00-59 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Little Wonder 5612-00-59

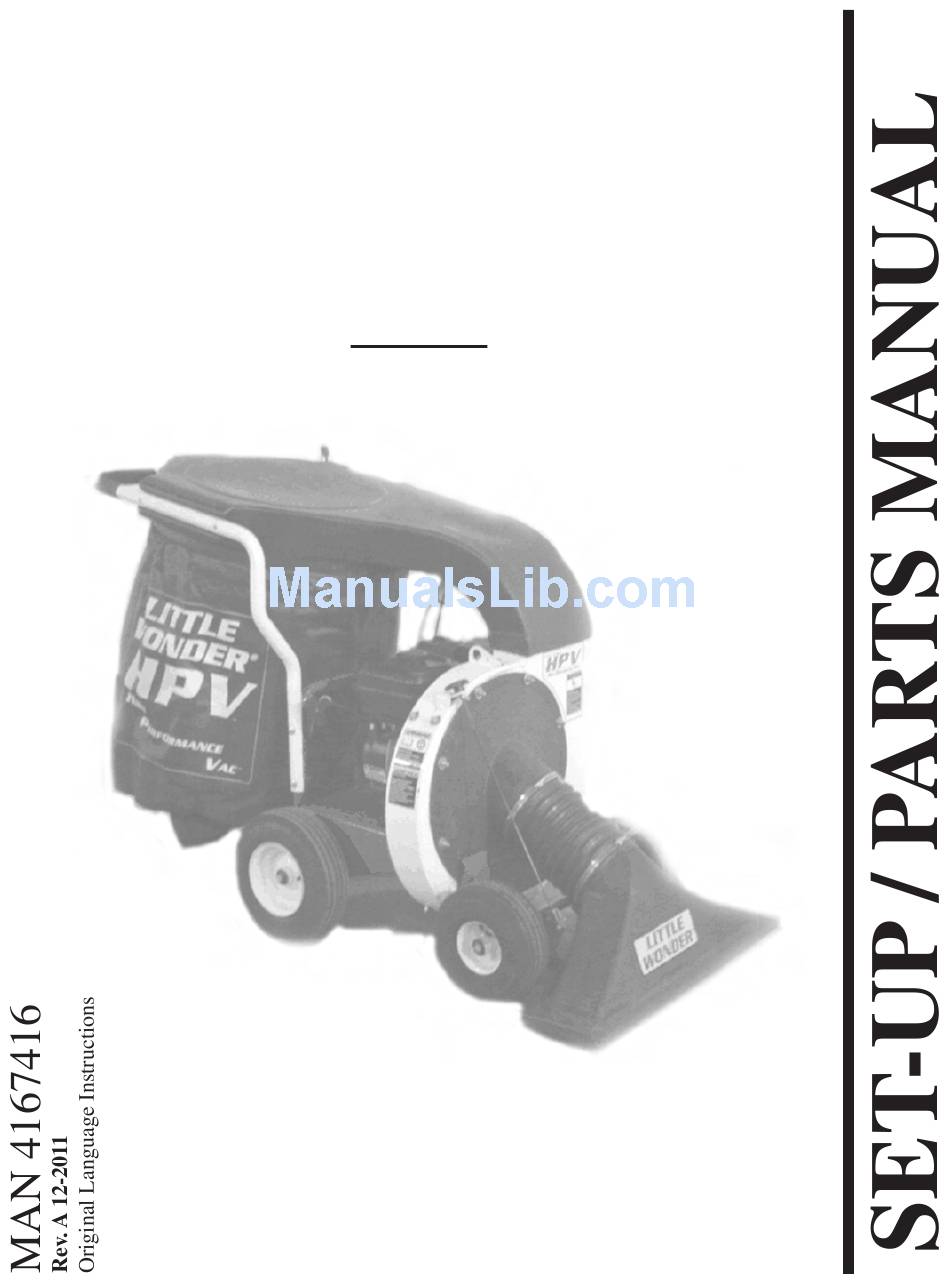

  • Page 1 LITTLE WONDER High Performance Vac MODEL: 5612-00-59 Operators Manual 4167415...
  • Page 2 CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
  • Page 3: Table Of Contents

    IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder High Powered Vacuum This professional vac was designed to the highest standards to ensure you many hours of uninterrupted service.
  • Page 4: Safety

    SAFETY LITTLE WONDER HPV VAC This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc.
  • Page 5: Safety

    LITTLE SAFETY WONDER HPV VAC MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's sched- - Refuel outdoors only; ule and instructions for maximum safety and best - Use a funnel;...
  • Page 6: Labels

    LABELS LITTLE WONDER HPV VAC SAFETY DECALS An important part of the safety system incorporated in this blower are the warning labels found on the blower. Replace labels if damaged or illegible. Read and understand the operator manual. Pay particular attention to all sections regard- ing safety.
  • Page 7: Labels

    LABELS LITTLE WONDER HPV VAC SAFETY DECALS An important part of the safety system incorporated in this unit are the warning labels found on the unit. Replace labels if damaged or illegible. STOP 4165567 Thrown Object / Flying Debris Hazard -Do not operate without properly attached bag.
  • Page 8: Set-Up Instructions

    •Feed the tail end of the band (on the clasp side) behind the bracket in the sleeve. The Little Wonder HPV Vac includes a convenient lifting •Pinch the wire form on the clasp together and lug A on top of the fan housing that can be used to lift connect it through 2 holes in the adjustment bracket the unit.
  • Page 9 HPV VAC LIFTING LUG The Little Wonder HPV Vac includes a convenient lifting lug A on top of the fan housing that can be used to lift the unit. This lug can only hold up to a total of 250 lbs (115 kg).
  • Page 10: Fan Removal

    FAN REMOVAL AND INSTALLATION LITTLE WONDER HPV VAC FAN REMOVAL AND INSTALLATION Remove spark plug wire from spark plug. Remove nozzle assembly. Remove front plate assembly. Remove the bolt that secures the fan to the engine crankshaft. The fan has a 3/4-16 nut welded on fan hub. Turn a 3/4- 16 x 5"...
  • Page 11: Parts Section

    LITTLE PARTS SECTION WONDER HPV VAC PARTS SECTION...
  • Page 12: Parts Assembly

    LITTLE PARTS ASSEMBLY WONDER FIGURE 1...
  • Page 13: Parts Assembly

    LITTLE PARTS ASSEMBLY WONDER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166004 ENGINE-6.5 HP INTEK 35 910527 WASHER-FAN 600180.17 DECK-HPV, 6 HP 36 64163--46 WASHER-3/8 ID X 3/16 TH 600184.17 HANDLE MOUNT 37 64163-31 WASHER-3/8 4166405 S-HOUSING VAC 38 64163-29 WASHER-25/64x1x12GA 600114...
  • Page 14: Collector Assembly

    COLLECTOR ASSEMBLY LITTLE WONDER FIGURE 2...
  • Page 15 COLLECTOR ASSEMBLY LITTLE WONDER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4167564 S-HANDLE eu 600142.7 FLANGE CLAMP PLATE 64141-6 NUT-5/16-18 600138.7 FLANGE ANGLE COLLECTOR 1 64163-34 WASHER-1/4 COLLECTOR 600101 DISCHARGE COLLECTOR 600153 GRIP 600509 BOLT-BUTTON1/4-20 X 2 644229-01 LOCKNUT-1/4-20 10 600161 HOOK STRIP...
  • Page 16: Liner Assembly

    LINER ASSEMBLY LITTLE WONDER FIGURE 3...
  • Page 17: Liner Assembly

    LINER ASSEMBLY LITTLE WONDER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4167563 S-HOUSING ASSY EU 600175 LINER 720592 BOLT-5/16-18 X 1 64163-29 WASHER-25/64 X 1 X 12GA 8 64229-02 LOCKNUT-5/16-18...
  • Page 18: Nozzle Assembly

    NOZZLE ASSEMBLY LITTLE WONDER FIGURE 4...
  • Page 19: Nozzle Assembly

    NOZZLE ASSEMBLY LITTLE WONDER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600100 NOZZLE 600133.7 ASSY-NOZZLE CLMP PLATE 1 600183.17 BRKT-NOZZLE VER. 2" 64141-6 NUT-FL 5/16-18...
  • Page 20: Warranty

    (2) years from the date of purchase, under the following terms and conditions. LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
