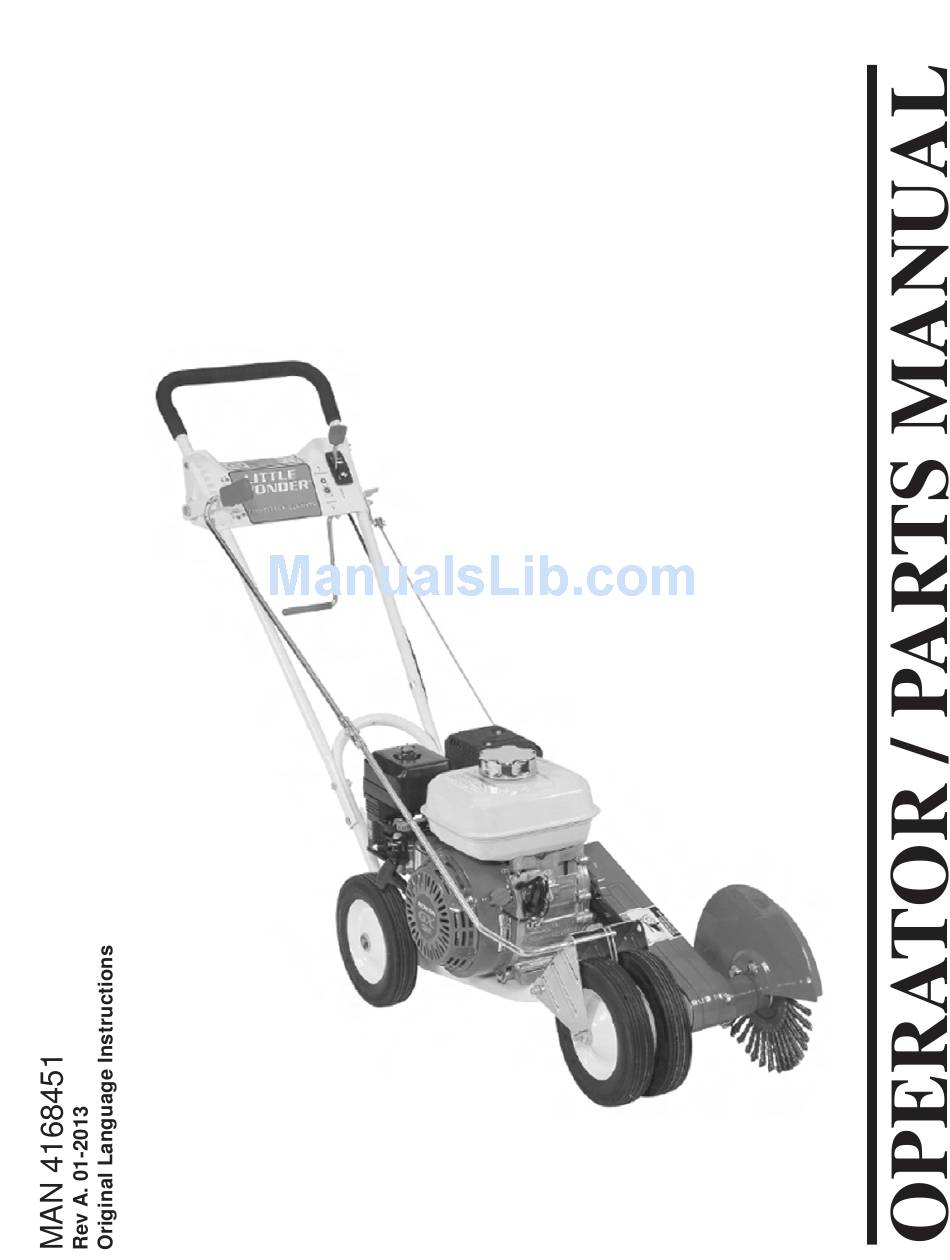

- Page 1 LITTLE WONDER ® PRO CRACK CLEANER 6236-00-01...
- Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
Your safe use of this Little Wonder product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. -
Page 4: Safety
SAFETY PRO CRACK CLEANER This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, Signal word definitions rejects and disclaims any modifications, add-on accessories or product alterations that are not... - Page 5 SAFETY PRO CRACK CLEANER OPERATOR PREPARATION & TRAINING SITE PREPARATION & CIRCUMSTANCES READ THE OPERATION & SAFETY MANUAL • Evaluate the terrain to determine how to safely • If an operator or mechanic perform the job. Only use accessories and cannot read English, it is attachments approved by the manufacturer.
- Page 6 SAFETY PRO CRACK CLEANER OPERATING SAFELY - except for repairs or adjustments as specifically IN GENERAL noted, such as for carburetor adjustment, where the • engine must be running. Keep hands and feet clear Use extra care when loading or unloading the machine of moving parts in these circumstances.
- Page 7 SAFETY PRO CRACK CLEANER FUEL SAFETY STORAGE SAFETY WARNING • Gasoline is flammable; gasoline va- • Stop the engine and allow to cool before storing. pors are explosive. Use extra care • Drain the fuel tank outdoors only. when handling. •...
-
Page 8: Labels
LABELS PRO CRACK CLEANER WARNING LABELS Warning labels are an important part of the safety system incorporated in this machine. Replace labels if damaged or illegible Key #A P/N 20942 Key #C P/N 211 Key #B P/N 4168453 - ROTATING PARTS. - DO NOT OPERATE WITH COVER REMOVED 4168760... -
Page 9: Set-Up Instructions
PRO CRACK CLEANER ASSEMBLY INSTRUCTIONS THROTTLE INSTALLATION Your Little Wonder Pro Crack Cleaner requires a minimal Use Figure 1 in parts section for assembly. amount of assembly prior to use. Use Figures 1 & 3 in parts section for assembly. -
Page 10: Controls
CONTROLS PRO CRACK CLEANER CONTROLS FUEL VALVE (F) BRUSH HEIGHT ADJUSTMENT LEVER (A) Move to the “OFF” position to shut off the fuel Rotate the lever away from the operator to raise the whenever transporting the machine by trailer or truck brush. -
Page 11: Operation
WARNING Pay particular attention to the cooling fins, governor parts and muffler. Clean air intake screen. Check air ALL LITTLE WONDER PAVING CLEANERS ARE cleaner; service as necessary. SHIPPED WITHOUT OIL. WHEN FILLING OIL-USE SAE 30 OIL. REFER TO THE ENGINE MANUFACTURER’S •... -
Page 12: Maintenance
• Check tightness of the brush nut prior to each use. When replacement parts are required, use genuine Little Wonder parts or parts with equivalent Guards characteristics, including type, strength and material. • Check condition of guards for damage or wear. -
Page 13: Storage
STORAGE PRO CRACK CLEANER Storage To prevent possible explosion or ignition of vaporized fuel, T o put the equipment into service after an extended do not store equipment with fuel in tank or carburetor in an period of storage. enclosure with open flame (for example, a furnace or water heater pilot). -
Page 14: Troubleshooting
TROUBLESHOOTING PRO CRACK CLEANER TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine will not start. Out of gasoline. Fill gasoline tank. Spark plug lead wire loose or Reconnect spark plug lead wire. disconnected. Defective spark plug. Replace spark plug. Throttle control lever not in proper Move throttle control lever to start position. - Page 15 PARTS SECTION PRO CRACK CLEANER PARTS SECTION...
-
Page 16: Handle Assembly
HANDLE ASSEMBLY PRO CRACK CLEANER FIGURE 1... - Page 17 HANDLE ASSEMBLY PRO CRACK CLEANER FIGURE 1 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 144-1 Hex Head Cap Screw 1/4-20X1 1/4 Washer - 3/8 ID 146B Throttle Clip Cotter Pin 167A Speed Nut Draw Rod Throttle Adjust Assembly Hex Head Cap Screw 1/4-20 X 5/8 8-18 Grip Ring 10 227...
-
Page 18: Brush / Drive Assembly
BRUSH / DRIVE ASSEMBLY PRO CRACK CLEANER FIGURE 2... - Page 19 BRUSH / DRIVE ASSEMBLY PRO CRACK CLEANER FIGURE 2 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 162B Hex Head Screw 1/4-20 X 1/2 2 Set Screw 5/16-18 X 3/8 Bearing 129D Lock Washer 5/16 131A Cutter Head Shaft Blade Washer Woodruff Key #606 Tension Pin 1/4 X 1 1/4 100-C...
-
Page 20: Main Frame Assembly
MAIN FRAME ASSEMBLY PRO CRACK CLEANER FIGURE 3... - Page 21 MAIN FRAME ASSEMBLY PRO CRACK CLEANER FIGURE 3 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 114B Flange Nut 5/16-18 129C Hex Head Screw 5/16-18 X 3/48 Washer - 3/8 ID 4163308 Formed Rod .19 x 2.28 Mud Flap Washer 1/2 ID Cotter Pin Handle Support - RH Retaining Ring...
- Page 22 (1) year from the date of purchase, under the following terms and conditions. LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
