Summary of Contents for Little Wonder 5612-12-01

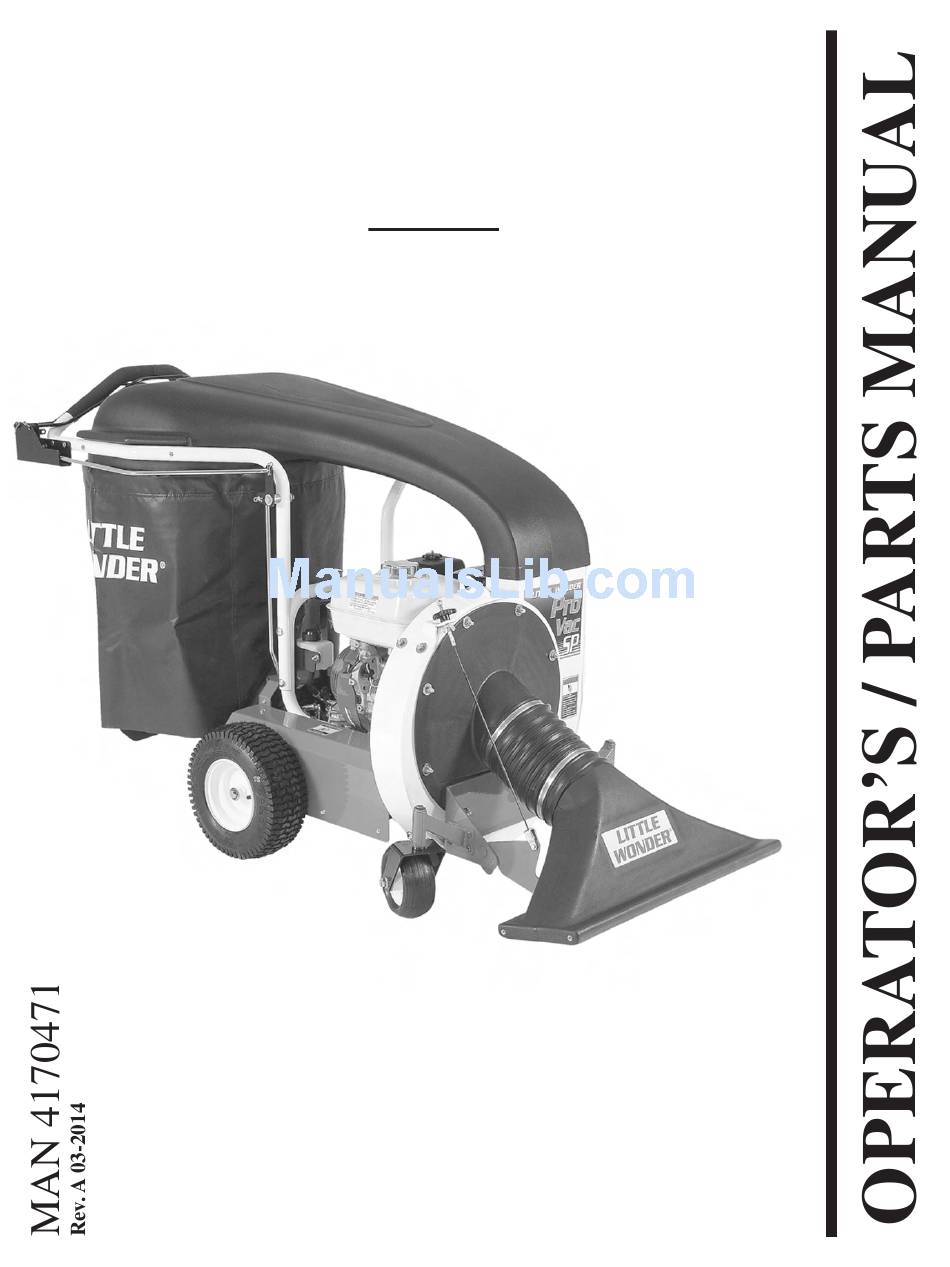

- Page 1 LITTLE WONDER PRO VAC SP MODEL: 5612-12-01...
- Page 2 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. CALIFORNIA Proposition 65 Warning Battery posts, terminals, wiring insulation, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 3: Table Of Contents
IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder PRO VAC SP. This PRO VAC SP was designed to the highest standards to ensure many hours of uninterrupted service. -
Page 4: Little Wonder
SAFETY LITTLE WONDER PRO VAC SP This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. - Page 5 LITTLE SAFETY WONDER PRO VAC SP MACHINE PREPARATION Operator preparation and training Read the Operation & Safety SITE PREPARATION AND CIRCUMSTANCES Manual – Evaluate the terrain to determine how to safely – If an operator or mechanic cannot read English, it perform the job.
- Page 6 SAFETY LITTLE WONDER PRO VAC SP OPERATING SAFELY INTERRUPTING OPERATION Before leaving the operator's position: IN GENERAL - Park on level ground. – Use extra care when loading or unloading the - Shut off the engine. machine into a trailer or truck. Stop the engine, and wait until the fan stops moving: –...
-
Page 7: Safety
LITTLE SAFETY WONDER PRO VAC SP MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's - Refuel outdoors only; schedule and instructions for maximum safety and - Use a funnel;... -
Page 8: Labels
LABELS LITTLE WONDER PRO VAC SP WARNING - ROTATING PARTS. - DO NOT OPERATE WITH COVER REMOVED 4168760... -
Page 9: Set Up Instructions
•Tuck the other end of the seal strap behind the The Little Wonder PRO Vac includes a convenient lifting bracket (overlapping the lead end of the seal strap). lug A on top of the fan housing that can be used to lift the •Feed the tail end of the band clamp behind the... - Page 10 LITTLE SET-UP INSTRUCTIONS WONDER PRO VAC SP COLLECTOR ASSEMBLY BAND CLAMP SEAL STRAP FRONT PLATE INLET NOZZLE CABLE BRIDGE CLAMPS DEBRIS BAG COTTER PIN HOSE NOZZLE ASSEMBLY WIRE FORM TAIL END ADJUSTMENT BRACKET CLASP BAND CLAMP...
-
Page 11: Controls
LITTLE CONTROLS WONDER PRO VAC SP THROTTLE (A) Controls engine speed and vacuum suction level. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF” position to shut off the fuel whenever transporting the machine by trailer or truck or during storage. -
Page 12: Operation
LITTLE OPERATION WONDER PRO VAC SP BEFORE STARTING THE ENGINE Examples of items/areas to avoid. -excessively wet surfaces and debris 1. Read the Operator Manual and Engine Manual. Be- -gravel surfaces come familiar with the controls, how each functions, -large hard objects and what it operates. -
Page 13: Fan Removal And Installation
FAN REMOVAL AND INSTALLATION LITTLE WONDER PRO VAC SP FAN REMOVAL AND INSTALLATION Remove spark plug wire from spark plug. Remove nozzle assembly. Remove front plate assembly. Remove the bolt that secures the fan to the engine crankshaft. The fan has a 3/4-16 nut welded on fan hub. Turn a 3/4- 16 x 5"... -
Page 14: Maintenance / Storage
2. Replace drain plug, remove fill plug and fill with new the spark plug. oil. Little Wonder recommends SAE 30 oil whenever applicable. 5. Top off if necessary. See engine manual for details. -
Page 15: Parts Section
LITTLE PARTS SECTION WONDER PRO VAC SP PARTS SECTION... - Page 16 LITTLE NOZZLE / FRONT WHEEL ASSEMBLY WONDER FIGURE 1 PRO VAC SP...
- Page 17 LITTLE NOZZLE / FRONT WHEEL ASSEMBLY WONDER FIGURE 1 PRO VAC SP ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4169692.17 WLDMT - BRACKET FRONT 1 600183.17 NOZZLE BRACKET 4169483.17 CASTER SUPPORT 4169484.17 CASTER YOKE - PRO VAC 600133.7 ASSY-NOZZLE CLAMP PLA 1 4170312 CASTER WHEEL 6.25X3 600100...
-
Page 18: Fan Assembly
FAN ASSEMBLY LITTLE WONDER FIGURE 2 PRO VAC SP... - Page 19 LITTLE FAN ASSEMBLY WONDER FIGURE 2 PRO VAC SP ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166074 ENGINE-HONDA GX270 4170636 S-HOUSING PROVAC 600114 IMPELLER-BALANCED 600198 FRONT PLATE 600175 LINER 4168849.17 WLDMT DECK - PRO VAC SP 4168845.10 WLDMT SPACER HONDA 4168843 SHEAVE ENGINE 4168957...
- Page 20 MAIN FRAME ASSEMBLY LITTLE WONDER FIGURE 3 PRO VAC SP...
-
Page 21: Main Frame Assembly
MAIN FRAME ASSEMBLY LITTLE WONDER FIGURE 3 PRO VAC SP ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4168849.17 WLDMT DECK 64123-61 BLT-HEX 5/16-18X1-3/4 4170637 S-SIDE GUARD 64123-54 BLT-HEX 5/16-18 X .75 4168851.17 REAR GAURD 64141-6 NUT-WLF 5/16-18 4169476.17 DECK AIR SPACER 64141-4 NUT-WLF 3/8-16 4168832.10... -
Page 22: Handle Assembly
HANDLE ASSEMBLY LITTLE WONDER FIGURE 4 PRO VAC SP... -
Page 23: Nozzle Assembly
LITTLE NOZZLE ASSEMBLY WONDER PRO VAC SP FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600153 GRIP-HANDLE, LAWN VAC 2 4168839 STANDOFF TRACTION 4168832.10 HANDLE LOWER 4168831.10 HANDLE UPPER 4168837.7 TRACTION ROD UPPER 4168848.7 BELLCRANK 4168834.7 BRACKET BAIL RT 4169477.7 WLDMT-BAIL FORWARD 4169480.7... -
Page 24: Warranty
LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
