Configuring the KAV-250a
for Bridged Operation
The KAV-250a may be configured to operate
in a bridged mode. When bridged, the amplifi-
er will deliver 1000 watts to an 8 ohm load. To
implement this configuration:
1. Turn the KAV-250a off.
2. Locate the red switch on the back of the
amplifier and slide it from the NORMAL
position to the BRIDGED position. The
numeral 2 will appear on the switch, when
the switch is in the BRIDGED position.
Connect the interconnect cable to the
BRIDGED input, either balanced via the
XLR connector or single-ended via the
RCA connector. Do not use both inputs
simultaneously. Connect the speaker
cables to the speaker terminals labeled
BRIDGED(-) and BRIDGED(+). The
lifier is now ready for bridged operation.

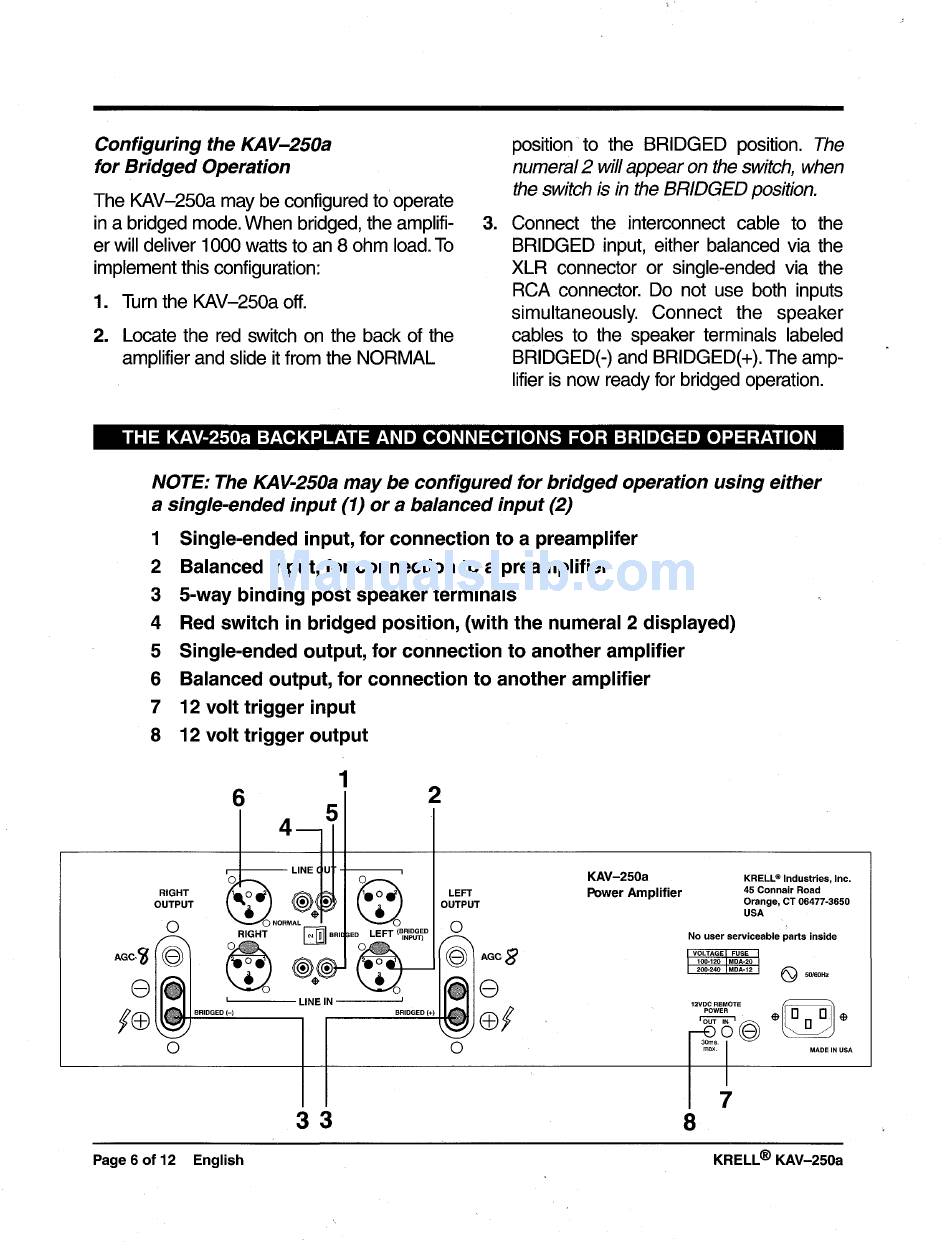

THE KAV-250a BACKPLATE AND CONNECTIONS FOR BRIDGED OPERATI()N
NOTE: The KAV-250a may be configured for bridged operation using either
a single-ended input (1) or a balanced input (2)
1 Single-ended input, for connection to a preamplifer
2 Balanced input, for connection to a preamplifier
3
5-way binding post speaker terminals
4 Red switch in bridged position, (with the numeral 2 displayed)
5
Single-ended output, for connection to another amplifier
6 Balanced output, for connection to another amplifier
7 12 volt trigger input
8
12 volt trigger output
1
LINE IN
2
RIGHT LEFT
OUTPUT OUTPUT
C)
RIGHT ~ED LEFT ~NPUT)
(BRIDGED (~
0 0
33
KAV-250a
Power Amplifier
KRELL
®
Industries, Inc.
45 Connair Road
Orange, CT 06477-3650
USA
No user serviceable parts inside
VOLTAGE FUSE
100-120 MDA-20
200-240 MDA-12
Q 50/60Hz
MADE IN USA
12VDC REMOTE
POWER
Page 6 of 12 English
