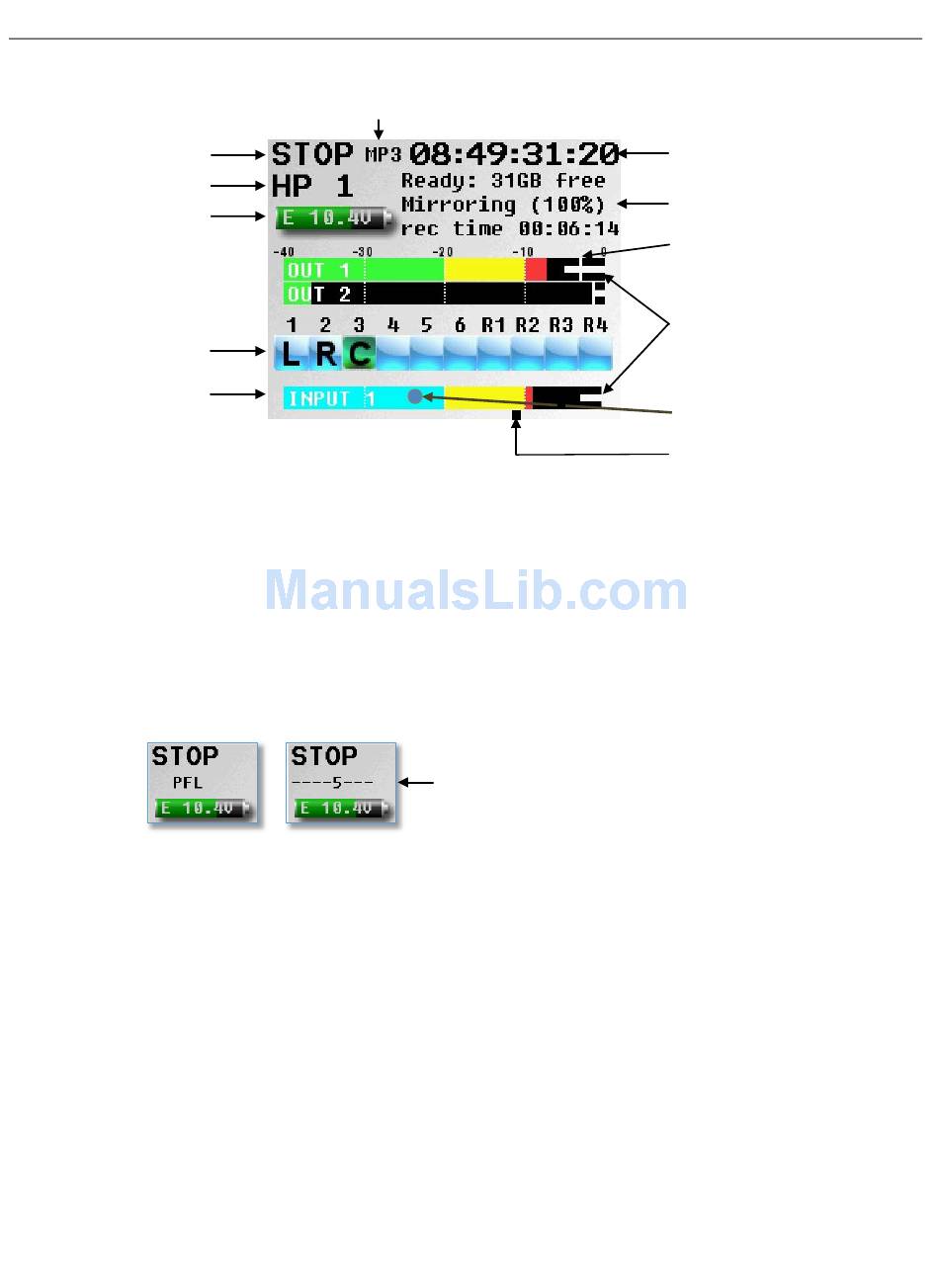

Home Screen Explained

Transport Status

Headphone Selection

Battery
Indicator
ENG Panning shortcut
Matrix
Input/Virtual Fader
Meter
Transport Status
Shows the mode of recorder RECORD,

MP3 Indicator

Displays if your recorded files are being marked to be written as an MP3 file.

Time Code

Shows the current time code
Headphone Selection
Displays which headphone matrix is being monitored. You can custom name your headphone set up - see
headphone naming in the ENG menu.
If the PFL key is pressed, the name in the Headphone Monitor field is replaced with "PFL" alternating
•
with the selected channel number(s) as follows:
• Press the multi-function key corresponding to input to select a channel to PFL. If you want to listen to
multiple channels at the same time, just press and hold an additional multi-function key for
approximately 1 second to add that channel to the PFL circuit.
• Press the headphone knob to restore normal headphone monitoring.

Battery Indicator

Displays the power source (I - Internal / E - External), a numeric display of the current voltage. Nomad will
always automatically switch to the higher voltage source first.

Save Indicator

A moving pixel on bottom of screen moving right to left indicates that the Nomad is saving a parameter
setting to its memory. If you power down while the pixel is moving the settings will not be saved
MP3 Recording
Indicator
PLAY or STOP.
.
Shows what is
being listened to
in PFL mode
16
Meter Screens
Time code
Card information field
Peak Hold Indicator
Limiter reduction indicators
Trim Level Indicator
Save Indicator
.
