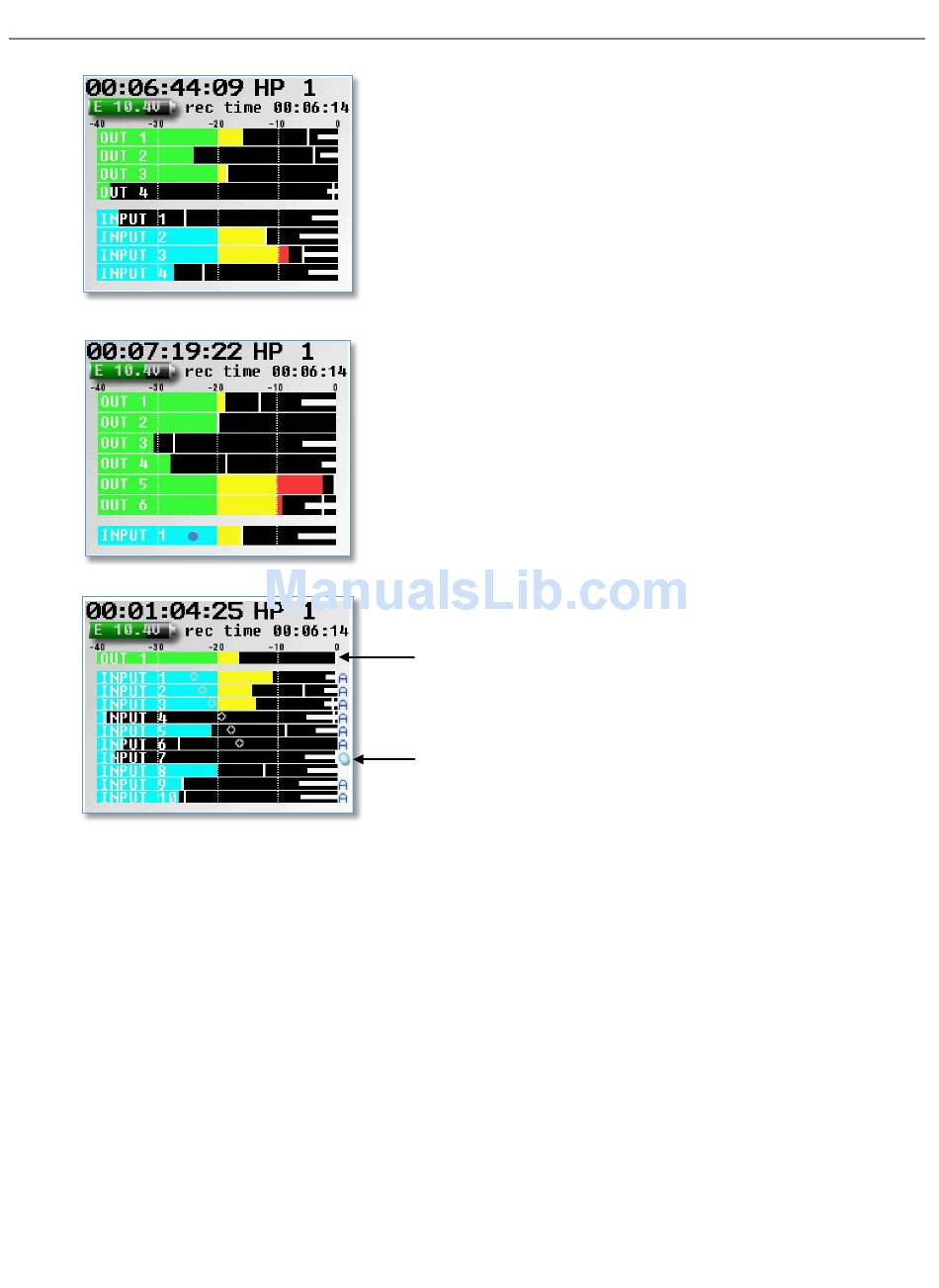

NOMAD LAYOUT
4 Out / 4 In
6 Output Busses with Input Trim
Auto-Mix Meter Screen

Store/Recall a Home Screen Configurations

You can "park" two home screens for a quick recall of two home screens.
• To store a configuration under the COM key, press and hold the MENU knob, and press the COM key. Every
time you press the COM key, the next configuration in sequence is displayed. When you are happy with the
configuration being displayed, release the MENU knob.
• Repeat the process with the SLT key.
• To return to the saved COM key setting, press the MENU knob and COM key together.
• To return to the saved SLT key position, press the MENU knob and SLT key together.
Output Bus 1 (Auto-Mix Output)
Auto-Mix Inputs - "A" designates inputs
assigned to Auto-Mix. Blue dot shows
which inputs are "open"
15
Meters Screens
