Home Screen / Meters

There are several selectable home meter screens from which to choose. You can toggle through the different
screens by pressing the Star key – or by pressing the MENU knob and the SLT or COM key at the same time.
The color of the left half of the meter indicates the source type being metered:
Light blue is an input
•
Green is an output bus
•
Purple is a recorded track
•
The track name, bus number or input number is indicated within each meter to aid in channel identification. If a
compressor is engaged, a white gain reduction line will appear at the right side of the meter when the
compression is being applied.

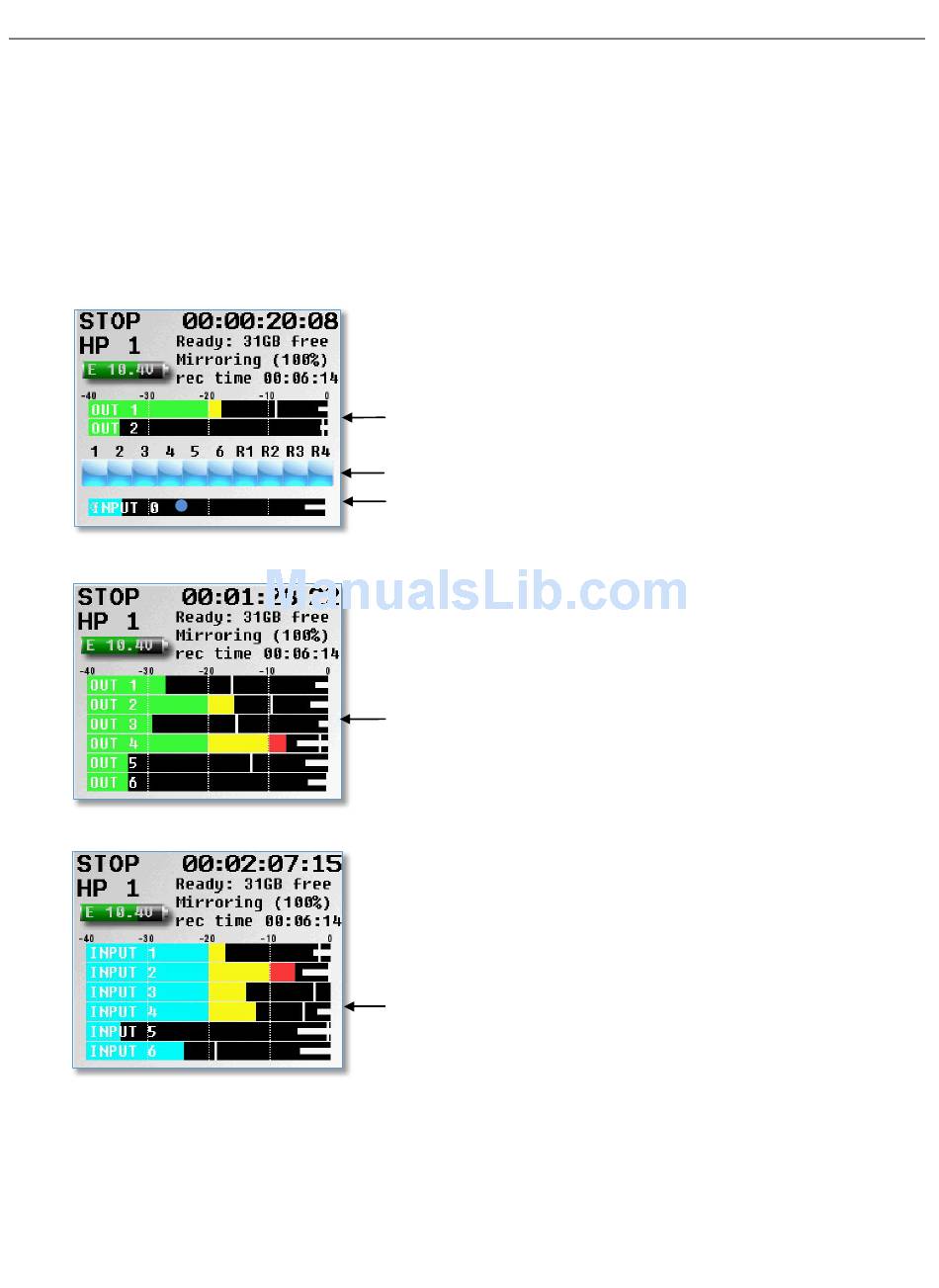

ENG Home Screen
Output Bus Home Screen
6 Input Home Screen
Output busses 1 and 2
Quick Pan Matrix
AutoTrim Meter / Virtual Faders for mixing Inputs
7 through 10 (see ENG/EFP Bag operations)
6 Output Busses
Input signal from XLR Inputs
