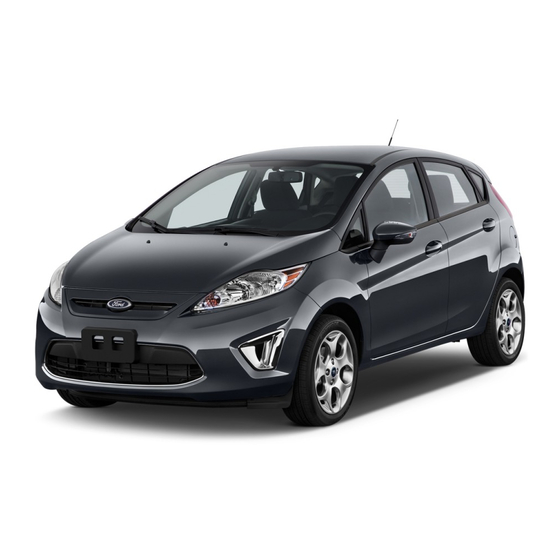

Ford Fiesta 2011 Quick Reference Manual

This Quick Reference Guide is not
intended to replace your vehicle
1
Owner's Guide which contains
more detailed information 9
concerning the features of your 2
vehicle, as well as important
1 15
safety warnings designed to
help reduce the risk of injury
to you and your passengers. 12
13
Please read your entire
Owner's Guide carefully as
you begin learning about your
new vehicle and refer to the
appropriate sections when
4
questions arise.
All information contained in
this Quick Reference Guide
was accurate at the time
of duplication. We reserve
the right to change
features, operation and/
or functionality of any
vehicle specification
at any time. Your Ford
dealer is the best
source for the most
current information.
For detailed operating
and safety information,
please consult your
Owner's Guide.
Use extreme caution when using any device or
feature that may take your attention off the
road. Ford recommends against the use of any
BE8J 19G217 AA
hand-held device while driving and that you
comply with all applicable laws. Your primary
responsibility is the safe operation of the vehicle.
Instrument panel
1 Trip compuTer
Press the end of the lever to scroll through the trip computer
displays which will appear in the Instrument cluster. You can
scroll through:
6
XXX mi – Odometer: Registers the total miles/kilometers of
the vehicle.
mi TRIP – Trip odometer: Use to register mileage of
individual journeys.
mi TO E – Distance to empty: Indicates approximate distance
the vehicle will travel on the remaining fuel.
AVG mpg – Average fuel consumption – Indicates your
average fuel consumption since the last reset.
3
AVG mph – Average speed: Indicates the average speed
calculated since the last reset.
5
XXX ºF – Displays outside air temperature.
Press and hold the lever to reset. Refer to your Owner's
17
Guide for more information.
2 iNDicATor LiGHTS
11
Service engine soon light :
Illuminates briefly when
the ignition is turned on. If it remains on or is blinking
10
after the engine is started, the on-board diagnostics
14
system (OBD-II) has detected a malfunction. Drive in a
moderate fashion and contact your authorized dealer
as soon as possible.
Airbag readiness light : Illuminates briefly when
the ignition is turned on. If this light fails to illuminate,
remains on or continues to flash after the engine is
started, contact your authorized dealer for service
as soon as possible. A chime will also sound if
there is a malfunction in the indicator light.
Upshift light (if equipped with a manual
transmission): Illuminates when the manual
transmission should be shifted to the next
highest gear in order to maximize fuel efficiency.
power Door Lock
3
Press to lock/unlock the doors. When the
indicator light is illuminated, all doors and
the trunk are locked. When the light is
off, it indicates that one or more doors
7 8 16
are unlocked.
SpeeD coNTroLS
4 BAckup meTHoD of STArTiNG 12
In the event that the battery is low in your intelligent access (IA) key, or if there is wHeeL, if equippeD)
To set the speed:
excessive radio frequency interference, you can start the car by holding the IA key to
the back-up location near the steering column. Then, press the ENGINE START/STOP 1. Press ON.
button and brake pedal (automatic transmission) or clutch pedal (manual transmission)
2.
Accelerate to the desired speed.
to start your vehicle as usual. The vehicle should respond normally as long as the IA
3. Press SET + and take your foot off the accelerator.
key is held to the back-up location on the steering column. The IA key can be removed
once the vehicle is started, if desired. o To set a higher speed, press and hold SET + or press SET +
repeatedly until the desired speed is reached.
5 HAzArD fLASHer
o To set a lower speed, press and hold SET – or press SET –
repeatedly until the desired speed is reached.
muLTifuNcTioN DiSpLAy
6 o To disengage speed control, tap the brake pedal or clutch pedal
(if equipped) or press CAN.
This display is capable of monitoring many vehicle systems and alerting you to
potential vehicle problems and various conditions with informational messages. You o To return to a previously set speed, press RES (Resume).
can also program various vehicle settings (such as lane change indicator and chimes),
o To turn off, press OFF or turn the vehicle off.
as well as access and adjust media information. If your vehicle is equipped with
SyNc
SYNC ® , the compass heading will be displayed also. 13
STeeriNG wHeeL, if equippeD)
7 AuxiLiAry iNpuT jAck
Press to access SYNC
Provides a way to connect and play music from your portable music player over the
Press M repeatedly to cycle through all available audio modes.
vehicle's speakers.
Press
uSB porT
8 Press OK to confirm your selections.
(if equippeD)
If your vehicle has SYNC ® , you will have a USB port. This feature allows you to plug
AmBieNT LiGHTiNG
14
in media playing devices, memory sticks, and also to charge devices if they support
this feature. Refer to the SYNC ® section of your Owner's Guide. Press repeatedly to turn the feature on, cycle through your color options
and turn the feature off. When activated, the front/rear foot well areas, center
puSH BuTToN STArT/STop
9 console cupholder and passenger side IP illuminate with the chosen color.
(if equippeD)
Push button start allows you to start your vehicle by simply pressing the ENGINE
15 SyNc
START/STOP button while pressing the brake pedal (automatic transmission) or
Press to activate the SYNC
clutch pedal (manual transmission), provided your intelligent access (IA) key is present
inside the vehicle. To stop the vehicle, simply put the car in P (Park) (for automatic SYNC ® section (if equipped) in the Entertainment Systems chapter of your
transmissions) or into neutral (for manual transmissions) and press the ENGINE Owner's Guide for more information.
START/STOP button.
AuxiLiAry power poiNT
16
mAx A/c
10
(if equippeD) Provides a power outlet for accessory plugs (only). To prevent a fuse from
Use to distribute recirculated air through the instrument panel vents to cool the being blown, do not plug in an accessory requiring over 12 V DC/180W.
vehicle. This mode is more economical and efficient than normal A/C mode.
17 pASSeNGer AirBAG iNDicATor
11
(recircuLATeD Air) Illuminates when the passenger airbag has been turned off. For a complete
Press to activate/deactivate air recirculation in the vehicle cabin. Recirculated air may
description of when the system will turn off the indicator light and the passenger
reduce the amount of time to cool the interior of the vehicle and also may help reduce airbag, refer to the Front Passenger Sensing system in the Seating and Safety
undesired odors from reaching the interior of the vehicle. Restraints chapter of your Owner's Guide.
(oN your STeeriNG
® /AuDio coNTroLS
(oN your
® phone features, if equipped.
to scroll through various menus and selections.
(if equippeD)
® Voice recoGNiTioN
voice recognition system. Refer to the
®
