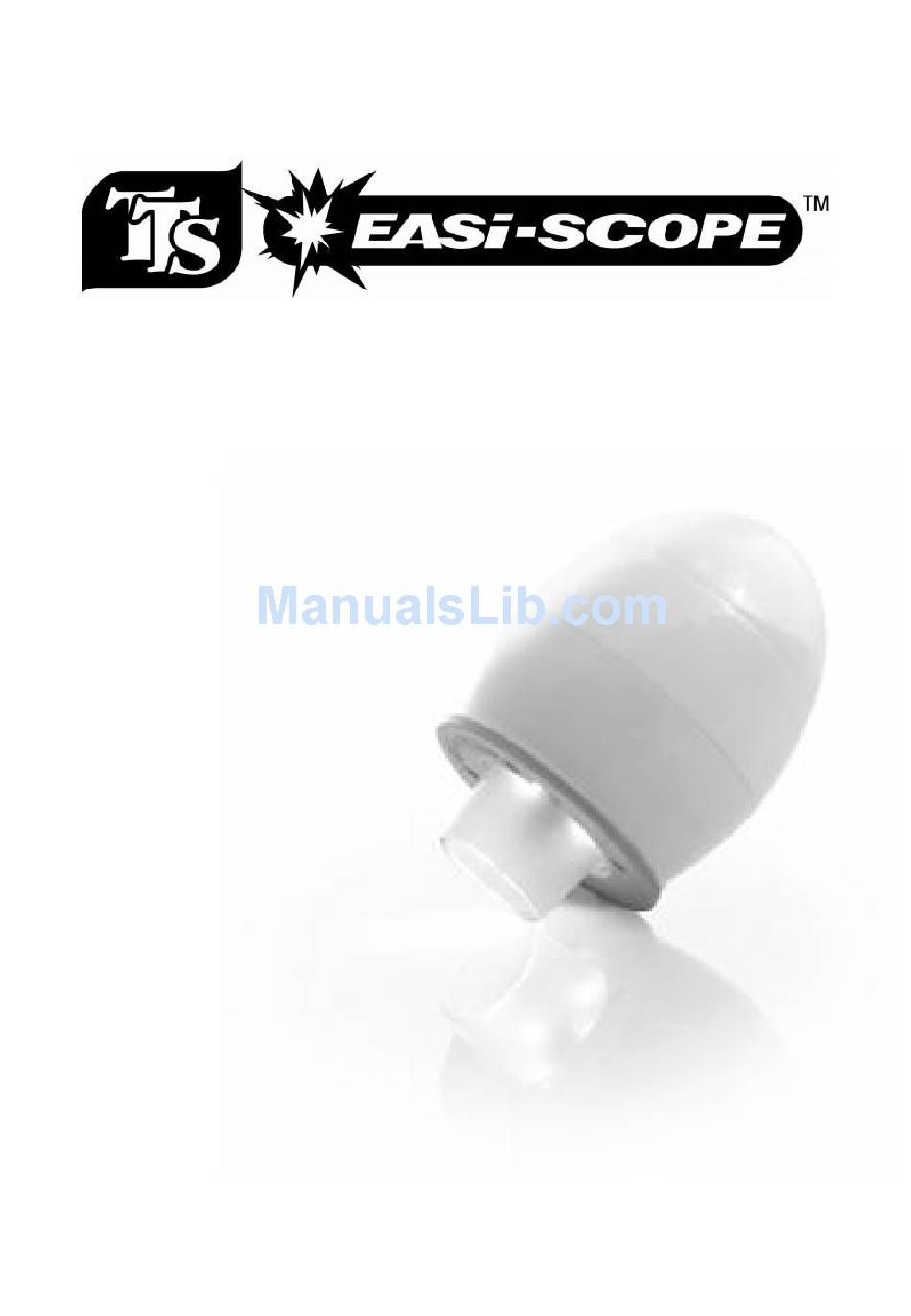

Page 1: Digital Microscope
Digital Microscope Instruction Manual November 2012 718B... -
Page 2: Table Of Contents
Table of Contents Important information ............4 Product description ..............4 Computer requirements ............5 Windows based PC ............5 Mac OS based PC ............... 5 Package contents ..............6 Product overview ..............7 Product specification .............. 8 Software installation ............... 9 Windows based PC ............ - Page 3 Focusing ................12 Using the Digital Viewer software ........13 System settings menu ............14 Device setup ..............15 Timed shot setup ............. 15 Movie setup ..............15 Save setting ..............15 Language setting .............. 16 Advanced settings ............16 Saved files ................
-
Page 4: Important Information
Important information Please read this instruction manual carefully before using this product, and retain these instructions for future reference. Improvements and changes to this text necessitated by typographical errors, or improvements to the software and/or equipments may be made at any time without notice. Product description This product is a USB powered device which magnifies specimens up to 41x on a 17"... -
Page 5: Computer Requirements
Computer requirements Windows based PC Compatible operating Windows XP SP2, SP3 systems Windows Vista (32 bit or 64 bit) Windows 7 (32 bit or 64 bit) Windows 8 (32 bit or 64 bit) CPU Speed P4-1.8GHz or above 512 MB or above Hard disk 800 MB or above USB 2.0... -
Page 6: Package Contents
Package contents Digital Microscope Application CD Instruction manual Adaptor (large) Adaptor (small) -
Page 7: Product Overview
Product overview Shutter button LED lights Focusing ring Adaptor slot Lens USB cable... -
Page 8: Product Specification
Product specification Connection type USB 2.0 Effective 14" monitor - 34x magnification 17" monitor - 41x Effective viewing area 8mm x 6mm Illumination Four LED array Sensor CMOS Sensor resolution 680 x 480 pixels (VGA) Size 75mm x 50mm x 50mm Weight 133 grams... -
Page 9: Software Installation
Software installation Windows based PC Insert the supplied application CD to the CD-ROM of the computer. Double click the "Digital Viewer.exe" icon located within the CD. Follow the Digital Viewer setup wizard to install the software and drivers for the Digital Microscope. Mac OS based PC Insert the supplied application CD to the CD-ROM of the computer. -
Page 10: Getting Started
Getting started Assembling the product Insert one of the adaptors into the adaptor slot, and fasten it by turning it gently in the clockwise direction. Connecting the device Connect the device to a USB socket of the computer. -
Page 11: Starting The Digital Viewer Software
Starting the Digital Viewer software Windows based PC The Digital Viewer software can be launched by double clicking the Digital Viewer icon from the desktop, or from the start menu (Start > All Programs > Digital Viewer > Digital Viewer). Mac OS based PC The Digital Viewer software can be launched by double clicking the Digital Viewer icon... -
Page 12: Focusing
Focusing Adjust the focus of the image manually by rotating the focusing ring. -
Page 13: Using The Digital Viewer Software
Using the Digital Viewer software The following buttons are available: Clicking this will open the system settings menu (see next section). Clicking this will capture the on screen image of the device. Clicking this will activate or deactivate the timed shot feature. When activated, images will be captured at a regular interval. -
Page 14: System Settings Menu
System settings menu The first time the Digital Viewer is opened, the default settings will be loaded, you may change these settings manually in the system settings menu. -
Page 15: Device Setup
Device setup If the image captured by the Digital Microscope was not displayed by default, you can change this by selecting it from the "Device" drop-down menu. The resolution of images you capture can be changed from the "Resolution" drop-down menu. Timed shot setup The frequency and duration of automatic images capture can be adjusted under this option. -
Page 16: Language Setting
Language setting The language of the Digital Viewer software can be changed under this option. Advanced settings By clicking the "More..." button on the right of the system settings menu, you will be able to manually adjust all of the image settings. -
Page 17: Saved Files
Saved files With the Digital Viewer application software opened, you can locate the saved files folder by clicking the "More..." button located on the left of the main software window. Full screen To activate the full screen mode, click the full screen button located on the bottom right hand corner of the Digital Viewer application software window. -
Page 18: Windows Based Pc
Uninstalling the Digital Viewer software Windows based PC Select "Uninstall Digital Viewer" from the start menu (Start > All Programs > Digital Viewer > Uninstall Digital Viewer). Mac OS based PC Drag the Digital Viewer application icon from the "Applications" folder to "Trash". -
Page 19: Care And Maintenance
Care and maintenance Keep the device dry and protect it from water or vapour. Do not leave your device in a place with an extreme high or low temperature. Do not touch the device with a wet hand as it may damage the device, or cause an electric shock to the user. - Page 20 Do not attempt to open or dismantle the Digital Microscope. TTS Group Ltd Park Lane Business Park Kirkby-in-Ashfield Nottinghamshire, United Kingdom NG17 9GU Freephone: 0800 318686 Freefax: 0800 137525 WARNING! Not suitable for children under 36 months due to small parts.
-
Page 21: Legal Information
Legal information This document is published without any warranty. While the information provided is believed to be accurate, it may include errors or inaccuracies. In no event shall the manufacturer or its distributors be liable for incidental or consequential damages of any nature, including but not limited to loss of profits or commercial loss, arising out of the use of the information in this document.
