Page 4: Before Use
BEFORE USE Important information Please read this instruction manual carefully before using this product, and retain this instruction for future reference. Improvements and changes to this text necessitated by typographical errors, or improvements to the software and / or equipments may be made at any time without notice. -
Page 5: Product Description

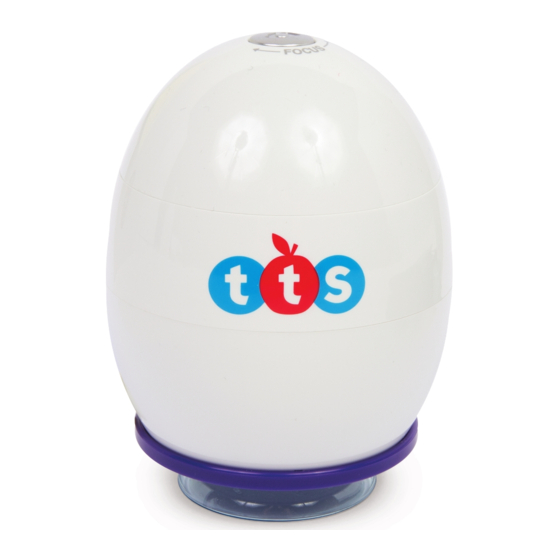

Product description This wireless microscope features a 640 x 480 CMOS sensor and can be paired with up to 2 Wi-Fi enabled devices within a 10m range. It is compatible with most Android, IOS, Windows and Mac OS devices. Simply connect the device to the wireless microscope's WLAN access point to start viewing, capturing and recording live images. -
Page 6: Product At A Glance
PRODUCT AT A GLANCE Package contents Wireless microscope Installation CD Adaptor User manual USB cable... -
Page 7: Product Overview
Product overview 1. Capture button 5. LED lights 2. Focusing ring 6. Adaptor slot 3. Power button 7. Indication light 4. USB port Product specification Connection type 802.11 b / g / n Effective magnifications (on a 17" monitor) Effective viewing area 8 x 6 mm Illumination Four LEDs... -
Page 8: Getting Started
GETTING STARTED Charging Charge the wireless microscope before using it. Connect the wireless microscope to a computer with the USB cable provided. Status Indication light colour Charging Charged Green Assembling the product Insert the adaptor into the adaptor slot. -
Page 9: Turning On The Device
Fasten the adaptor by turning it gently in the clockwise direction. Turning on the device Press and hold the power button for 2 seconds. Focusing Adjust the focus of the image manually by rotating the focusing ring. -
Page 10: Capturing
Capturing Press the image capture button to capture an image. Turning off the device Press and hold the power button for 2 seconds to turn off the device. -
Page 11: Installing The Smartphone
INSTALLING THE SMARTPHONE APP Search for "xploview" on Play Store or App Store on your mobile device and install the app. USING THE XPLOVIEW APP WITH A SMARTPHONE Connecting the device Turn on the wireless microscope (see P.9). Go to "Settings". Turn on Wi-Fi connection. -
Page 12: Open The Xploview App
Search for and connect to "xploview_xxxxxx" under the list of available devices. ("xxxxxx" is a 6 digit code unique to your device.) The default password of the device is 12345678. Open the xploview app The performance of the device may be affected in an environment crowded by Wi-Fi signal. -
Page 13: Button Menu
Button menu The icons on the button menu: Enter Image / Video playback mode Picture playback Video playback Capture on screen image Enter Video mode Start video recording Pause video recording End video recording Open System Settings Menu (see system settings menu on page 14) -
Page 14: System Settings Menu
System settings menu Set image directory Set size limit for video files (in MB) Toggle to turn off wireless microscope upon app exit Restore the wireless microscope to factory status Display settings Information about the app... -
Page 15: Deleting An Item
Deleting an item Android: Press and hold an item for 2 seconds. Tab "OK" to confirm. - Page 16 IOS: Swipe the item to the left. Tab "Delete" to confirm.
-
Page 17: Installing The Computer
INSTALLING THE COMPUTER SOFTWARE Software installation Windows based PC Insert the supplied application CD to the CD-ROM of the computer. Double click the "xploview wireless v3.2.xx.exe" icon < > located on the driver CD. Follow the xploview setup wizard to install the application software for the wireless microscope. -
Page 18: Using The Xploview
USING THE XPLOVIEW SOFTWARE WITH A COMPUTER Connecting the device Turn on / connect the WiFi adaptor in the Windows or Mac operating system. Search for and connect to "xploview_xxxxxx" under the list of available wireless networks. ("xxxxxx" is a 6 digit code unique to your device.) The default password of the device is 12345678. -
Page 19: Selecting The Device In The
Selecting the device in the xploview software From the "Device" drop-down menu under the "System Settings" menu, choose "xploview Wireless" and click the "Connect" button and click "Apply". - Page 20 Button menu The icons on the button menu : Open System Settings Menu (see system settings menu on page23). Capture on screen image. To start and to stop Timed Shot. Images will be captured at a regular interval (see system settings menu on page 24 to adjust frequency and duration).
-
Page 21: Full Screen Viewing
Full screen viewing To activate the full screen mode, click the full screen button < > located on the bottom right corner of the xploview application software window. To exit full screen mode, either double click on the screen, or press the "Esc" button on the keyboard. -
Page 22: Image Rotation / Flip
Image rotation / flip Click < > button to rotate or preview screen. -
Page 23: System Settings Menu
System settings menu The first time the xploview software is started, the default settings will be loaded, you may change these settings manually in the system settings menu. Windows based PC Mac OS based PC... -
Page 24: Device Setup
Device setup If the image captured by the wireless microscope was not displayed by default, you can change this by selecting "xploview wireless" from the "Device" drop- down menu and click "Connect". Timed shot setup The frequency and duration of automatic images capture can be adjusted under this option. -
Page 25: Save Setting
Save setting The default location for captured images or videos can be changed under this option. Language setting The language of the xploview software can be changed under this option. Advanced settings By clicking the "More..." button on the right of the system settings menu, you will be able to manually adjust all of the image settings. - Page 26 Windows based PC Mac OS based PC...
-
Page 27: Saved Files
Saved files With the xploview application software opened, you can locate the saved files folder by clicking the "More..." button located on the left of the main software window. Uninstalling the xploview software Windows based PC Select "Uninstall xploview" from the start menu (Start > All Programs > xploview wireless >...
