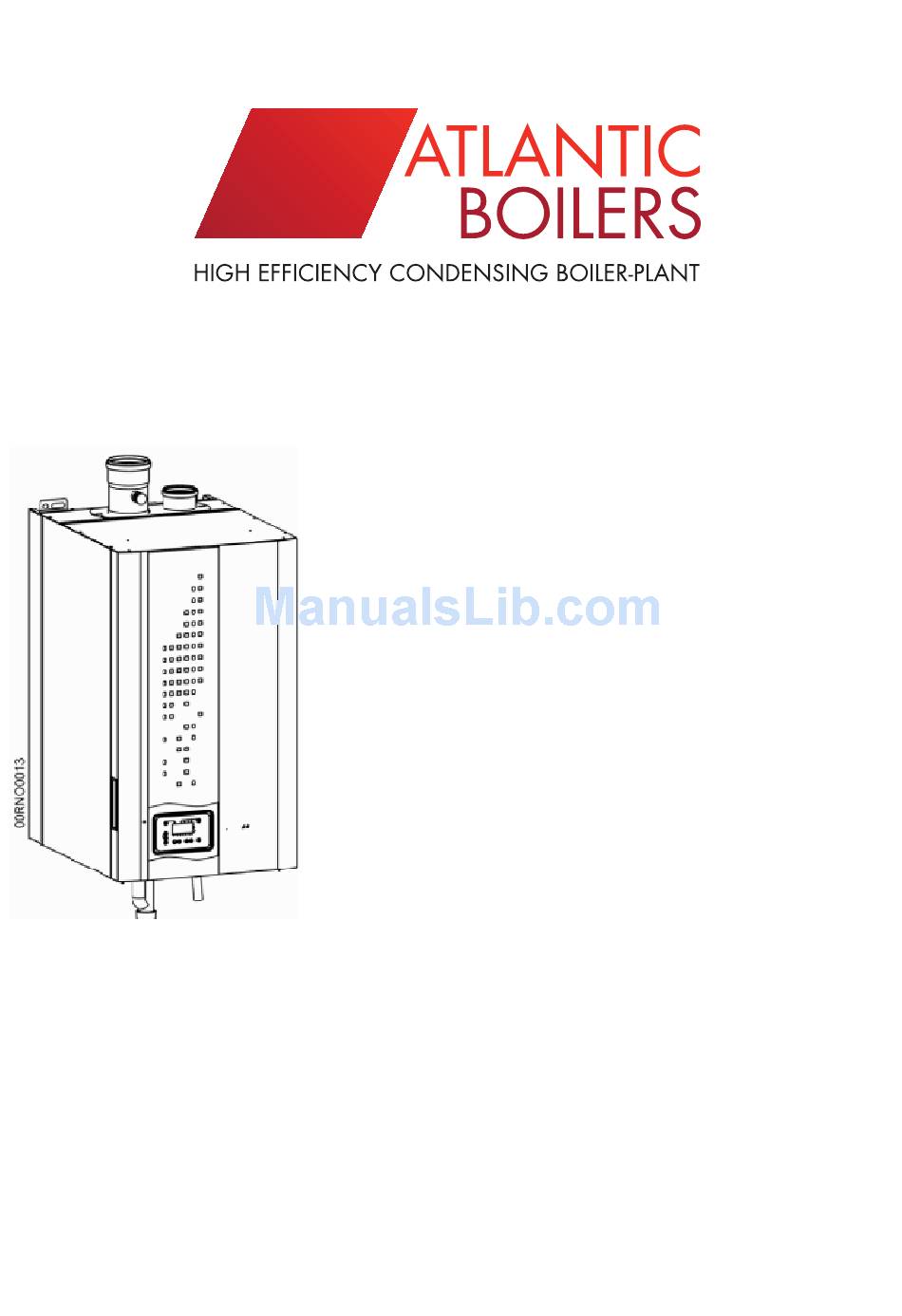

Page 1
The boilers conform to the following CE Directives Directive 2006/95/CD - low voltage Directive 2004/108/CEE - electromagnetic compatibility Directive 92/42/CEE - efficiency Directive 90/396/CEE - gas fired equipment ADDRESS: ATLANTIC BOILERS, PO BOX 11, ASHTON UNDER LYNE, OL6 7TR WEB: WWW.ATLANTICBOILERS.COM EMAIL: INFO@ATLANTICBOILERS.COM TEL:...
1. General Characteristics The V F boiler is set in the Factory to operate on Natural Gas Group H with a supply pressure of 20mBar. For higher gas pressure up to 300mBar, a filter and a pressure regulator must precede the V F gas valve. 1.1.
1.3. Operating conditions Maximum flow water temperature °C Temperature Limit thermostat °C 4000 Maximum working pressure (bar) (4,0) 1000 Minimum working pressure (bar) (1,0) Minimum water flow rate : 0.67 / 0.67 1.11 / 1.11 primary / secondary circuits (P/20) Water content Dry weight 1.4.
2. Boiler installation Installation and maintenance of the installation shoukd be carried by a qualified engineer according to the recommendations of the relevant codes of practice and of the boiler manufacturer The boiler must be installed in an appropriately ventilated compartment …………………………………………………………….
When a defect (not stopping the boiler) occurs, the defect code (as E140) is displayed. When a defect causes the boiler to lockout, the lock out code as (E133) and a small bell is displayed. Check error list for explanation 7.3.
Page 8
Auto SBoiler operation to time programme between Comfort and Eco Power Boiler fires at full power for 3 seconds Regulator Allows manual adjustment of the burner page 8/17...
DHW in Operation DHW not active 7.4. Adjustment of the settings Adjustment of the boiler constant flow temperature In mode - boiler constant flow temperature - regulation from 20degC to 80degC In mode - external temperature - regulation from 10degC to 26degC •...
4.5. Information on boiler condition Touch Information in order DHW temperature Out of action Burner function Outside temperature Error code Boiler flow temperature To revert to standard display, press radiator or tap symbol page 10/17...
Page 11
List of available information behind the Display First touch - information Press both vertical arrows simultaneously for 3 seconds The time information is replaced by a letter (b,C,d) and a number (0 to 7) By touching the vertical arrows, change the letter By touching the + or -, change the number Display Information...
Page 12
With a boiler defect leading to a lock-out on the LMU controller the alarm signal is displayed against the defect indicator. To re-set the LMU controller, clear the defect then press the re-set button for 2 seconds Explanation Defects Indicator Faulty outside sensor Faulty boiler flow sensor Faulty flue gas sensor...
Burner operating cycle To view the burner cycle, press the information sign 3 times Code Explanation Boiler at rest (no load) Start up has failed Burner fan starts up Air purge End of pre-ventilation period Ignition Flame established Space heating established Domestic hot water established Both space heating &...
5. Function of the LMU64 060D168 Controller Phase 10, 11, 12 purge. pilot control box continuous return to Lock-out lock-out VStart Modulation purge periode ignition checks start at start Heat demand WDPS, WPS, LS CD, TL N maxi N igni t i o n N mini N stop 11 s.
9. Table of boiler settings for the Client Boiler :........Location : ............Series No :....................Please record all changes to settings ! Reading Client Function range standard setting setting setting time actual Time 00 :00 … 23 :59 00 :00 actual Day 1:Monday …...
Page 16
Reading Client Function range standard settings setting Adjusting the heating circuits boiler fan RPM when in heating mode ( 60 / 100) H 536 0 … 9950 tr/min 5650 / 6400 minimum boiler output ( 60/ 100) H 542 0 … 9999 kW 14 / 25 maximum boiler output ( 60/ 100) H 543...
Page 17
Reading Client Range Function standard settings setting 2 modem inverter 5 listed output Function of 1st outlet : 0 out of action 6 DHW circulator on 2 lock-out 7 air purge in action H 619 3 burner on 8 shunt pump on 5 2nd pump circuit on 12 analogue circuit active Function of 2nd outlet:...
