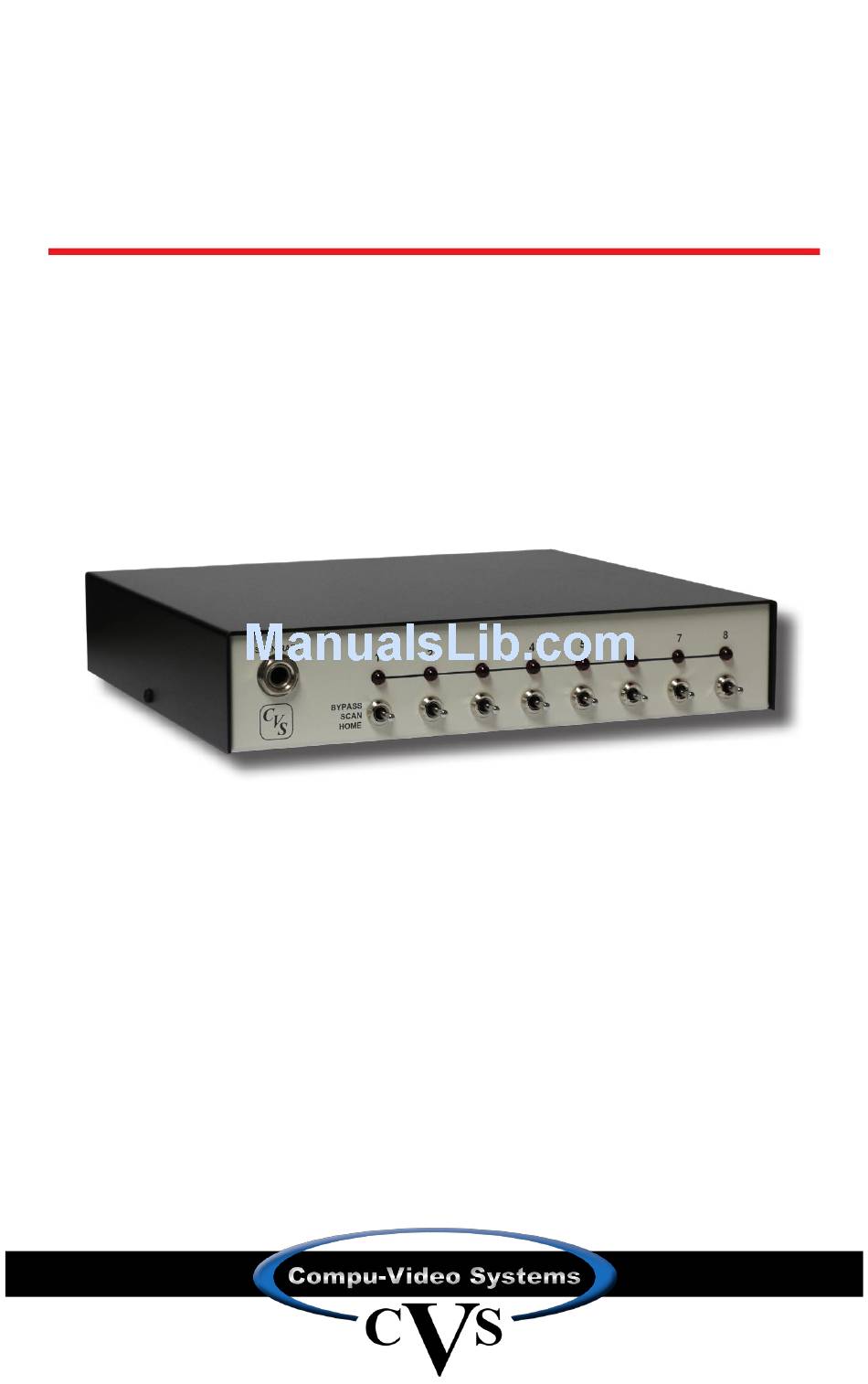

Page 1: Instruction Manual
PALS-8 8x1 Contact Closure Video Switcher Instruction Manual Thank you for purchasing one of our products. Please read this manual before using this product. When using this product, always follow the instructions contained in this manual, and pay attention to the safety information. - Page 2 Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
-
Page 3: System Connections
PALS-8 LOOPING SEQUENTIAL SWITCHER INSTALLATION AND OPERATING INSTRUCTIONS. The PALS-8 sequential switchers have the following features: *Remote activated sequencing *Home, Scan and Bypass control for each input *NTSC and PAL color compatible *Vertical interval switching *UL listed power pack *Low power consumption... - Page 4 4) SCAN; Place all of the switches that have corresponding video inputs in the center position. The LED’s (lights) will sequence by one when the remote relay is closed once. 5) BYPASS; By placing the switch up, that position will be skipped when the scan comes to that position.
- Page 5 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
- Page 6 NOTES P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
- Page 7 Overland return transportation from Compu-Video Systems Inc. to the user is free of charge. HOW TO GET SERVICE Please contact CVS by phone for a return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc.
