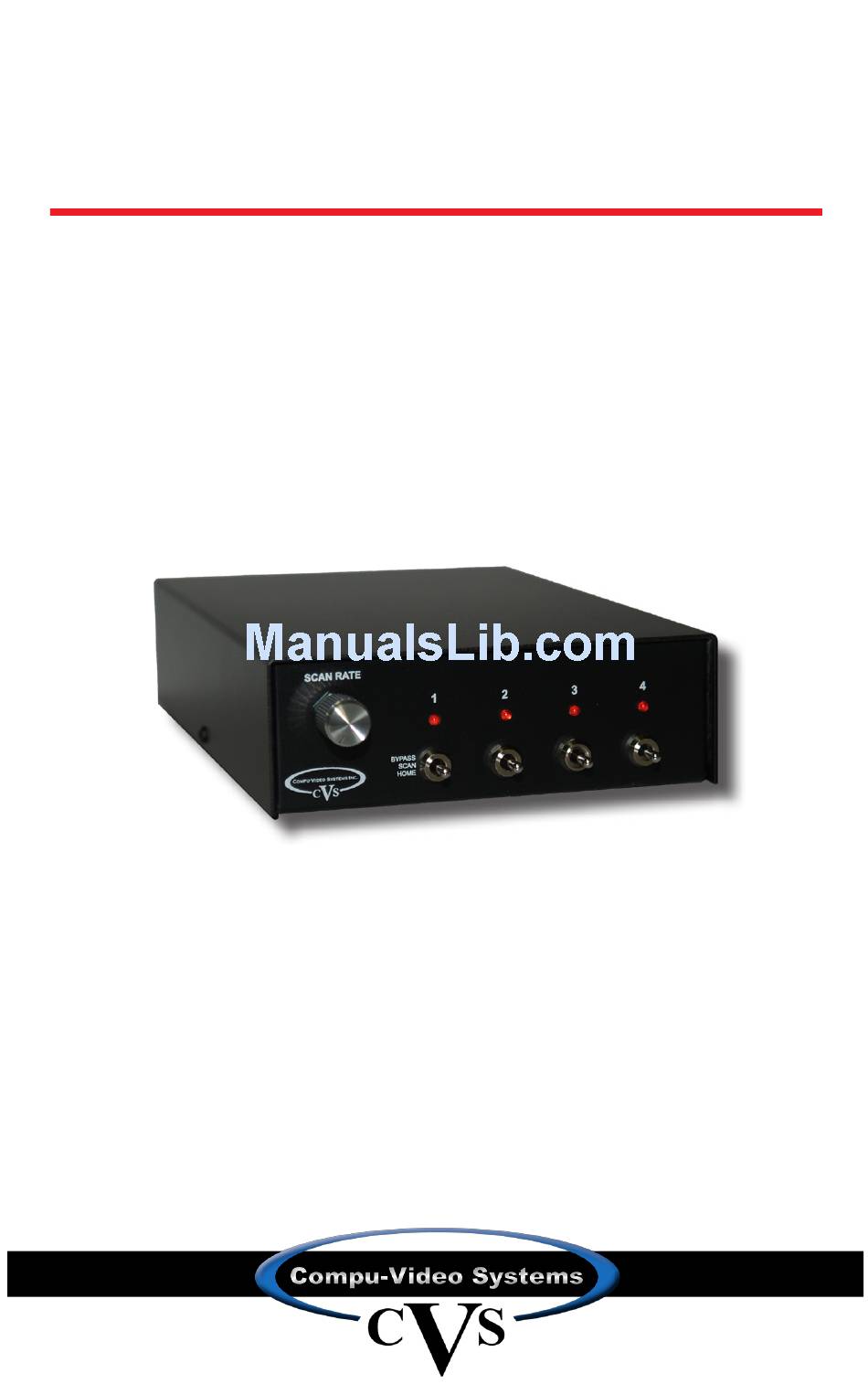

Page 1: Instruction Manual
MTS-4 4x1 Mobile Video Switcher Instruction Manual Thank you for purchasing one of our products. Please read this manual before using this product. When using this product, always follow the instructions contained in this manual, and pay attention to the safety information. - Page 2 Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
- Page 3 This product will work with a negative or positive ground system. Any power source other than a standard CVS supplied power supply must be fused on the (+) or “Hot” leg for safety reasons. This product is designed to be used in the field where normal AC power is not available.
- Page 4 Fig. 1 Rear View P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
- Page 5 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
- Page 6 SPECIFICATIONS Video: Input Impedance: 75 ohms Terminated Output Impedance: 75 ohms Max Video Input: 2vpp Frequency Response: 15mHz +/- 0.7dB Gain: Unity +/-3% Differential Gain: <0.5% Differential Phase Error: <0.5 Degrees Max H Tilt: <1% Max V Tilt: <1% Operational:: Switches (4): 3 Position Toggle Switch Indicators (4):...
- Page 7 Overland return transportation from Compu-Video Systems Inc. to the user is free of charge. HOW TO GET SERVICE Please contact CVS by phone for a return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc.
