Summary of Contents for ORANGE CRUSH 12

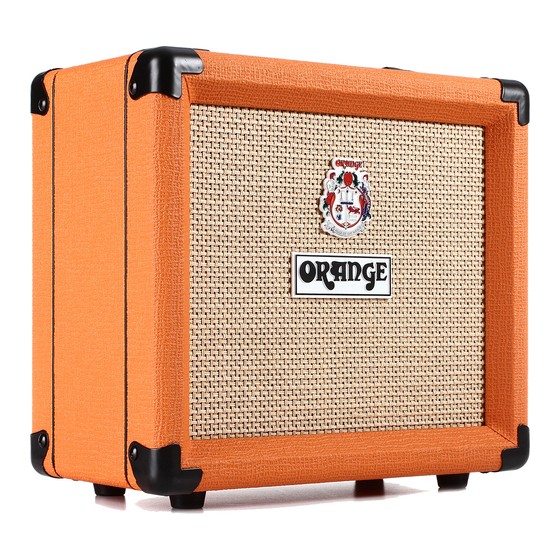

- Page 1 Manual V1.0 CRUSH 12 MANUAL...
-
Page 2: Important Safety Information
Our commitment to craftsmanship and quality control has allowed our amplifiers to stand the test of time, giving their owners as much pleasure now, as the day they were bought. To maintain this level of excellence, each Orange amplifier is put through many... - Page 3 Failure to heed the instructions will result in severe injury or death. NEVER PLACE LIQUIDS ON OR NEAR THE PRODUCT! This Orange product conforms to UL 60065:2001 (Seventh Edition) + A1:2005 + A2:2010 for Audio, Video and Similar Electronic Apparatus. Certified to CAN/CSA CAN/CSA-C22.2 No. 60065:03 This Orange product complies with the WEEE Directive (2002/96/EC) marking requirement.
-
Page 4: Before Using Your Amplifier
IMPORTANT! The voltage selector switch and mains fuse is set at the factory for the country or region in which this Orange product is intended to be sold. To prevent serious damage to the product, ensure that the rated AC mains voltage indicated on the product's rear panel agrees with the mains voltage from your AC mains inlet before connecting the IEC power cable. -
Page 5: Panel Features
PANEL FEATURES... - Page 6 Power The power light will illuminate when thePower switch (rear) is set to ON. Volume Adjusts the overall output volume level. Note: with the Gain set to zero no sound will be heard.
- Page 7 Phones Connect headphones via a stereo 1/4″ jack for silent practice. The Phonesoutput features Cabinet Simulation and can also be used to connect the amp to a mixer or recording console. Avoid using headphones for extended periods at loud levels. Input Use a quality shielded instrument cable to connect your instrument to the Input...
- Page 8 Treble Adjusts the high-end frequencies. Increasing theTreble control produces brighter tones. Middle control produces a ‘fatter’ sound. With higherOverdrive Adjusts the mid-range frequencies. Increasing theMiddle settings, reduce the mid-range frequencies for a more ‘scooped’ modern tone.
- Page 9 Bass Adjusts the low-end frequencies. Increasing theBass control produces deeper tones. Overdrive Adjusts the level of overdrive. Set the Overdrive to zero for cleaner tones. HigherOverdrive settings add greater levels of distortion. Experiment with and Overdrivecontrols for a wide range of ‘crunch’ and heavily distorted tones. Gain...
- Page 10 Gain control for a classic vintage ‘crunch’. Balance Adjusts the input signal level. Set the Gain control higher with lower settings on theOverdrive theGain control with the Volumecontrol to achieve the desired output level.
- Page 11 AC Mains Input ‘Before Using Your Amplifier‘. Connect the supplied IEC cable to the AC Mains Input. Ensure the Power switch is set to OFF before connecting the IEC cable. Refer to...
-
Page 12: Free Extended Warranty Offer
Valves and speakers supplied with an Orange amplifier or purchased separately at our online store are covered for 90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever. - Page 13 FUSES CAN FAIL AT ANY TIME! Orange amps are protected from damage caused by inconsistent mains voltage by various fuses. We recommend that Orange users have a set of spare fuses. For more information on maintenance and for accessories and spares, please visit...
