Summary of Contents for ORANGE CR60C

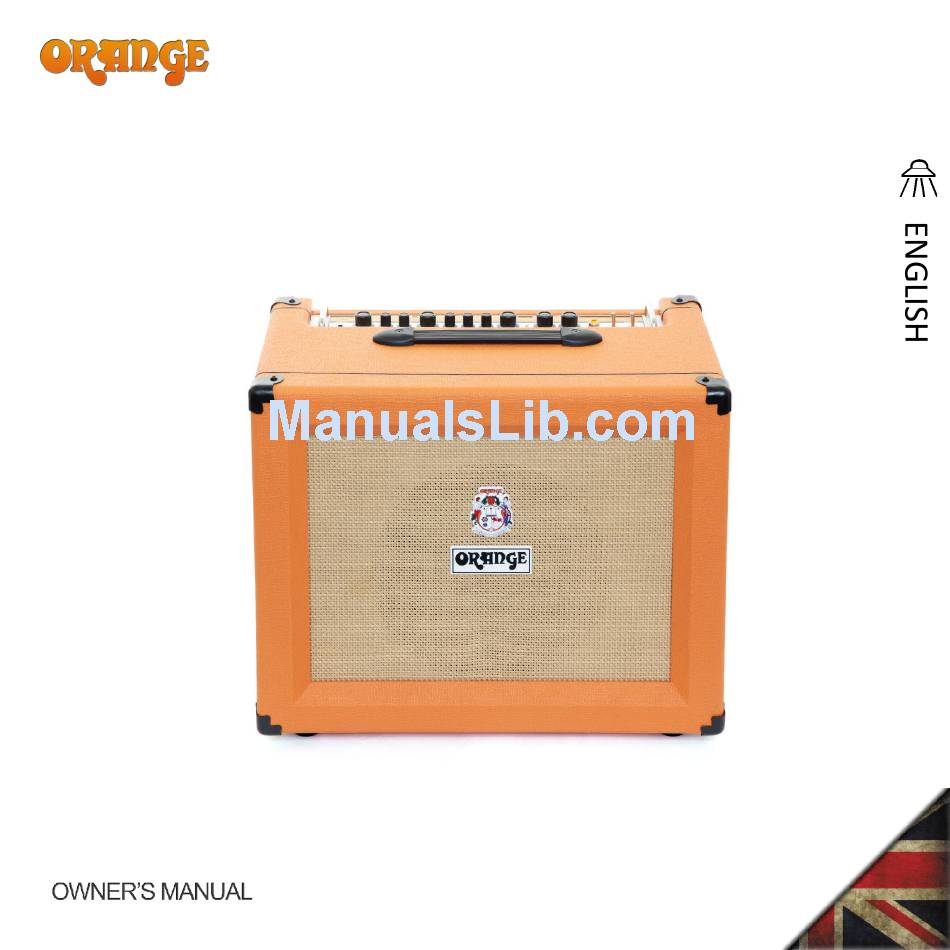

- Page 1 CR60C...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
CR60C CONTENTS CONTENTS.............................3 CONTACT DETAILS..........................4 IMPORTANT SAFETY INFORMATION......................5 USING YOUR AMPLIFIER........................8 Front Panel Features..........................10 Rear Panel Features ..........................12 FREE EXTENDED WARRANTY OFFER....................13... -
Page 4: Contact Details
CR60C CONTACT DETAILS Orange Amplification OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176... -
Page 5: Important Safety Information
CR60C IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 CR60C • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 7 CR60C This Orange Amplifier conforms to UL Standard 60065 for Audio, Video and Similar Electronic Apparatus - Safety Requirements; Certified to CAN/CSA-C22.2 No. 60065-03; IEC 60065 2001 + A1:2005 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 8: Using Your Amplifier
CR60C USING YOUR AMPLIFIER IMPORTANT! For countries or regions with a mains voltage of 115v or 120v, please switch the small, red mains selector to 115v or 120v and replace the fuse in the black pull out fuse tray, below the mains inlet, with the 120v version supplied. - Page 9 CR60C Lifting Your Amplifier: 1. Bend to lift an object, do not stoop! 2. Keep your back straight by tucking in your chin! 3. Lift with the strong leg muscles, not the weaker back muscles! Make sure the correct speaker load is connected:...
-
Page 10: Front Panel Features
CR60C FRONT PANEL FEATURES Input Jack Socket Plug your instrument into this jack socket. Volume Control (Clean Channel) This controls the volume of the clean channel. Bass Control (Clean Channel) This controls the bass response of the clean channel. Treble Control (Clean Channel) This controls the treble response of the clean channel. - Page 11 CR60C Treble Control (Dirty Channel) This controls the treble response of the dirty channel. Volume Control (Dirty Channel) This controls the output volume of the dirty channel. Reverb Selector Switch (Top: Spring - Middle: Hall - Bottom: Plate) This switch controls which reverb effect is used.
-
Page 12: Rear Panel Features
CR60C REAR PANEL FEATURES Speaker Jack Sockets (16 Ohm, 16 Ohm) Please refer to “Using Your Amplifier” Channel Footswitch jack socket Use any latching footswitch to change channel using this socket. Reverb footswitch jack socket Use any latching footswitch to switch the reverb on and off. -
Page 13: Free Extended Warranty Offer
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.
