Vanatoo Transparent One Quick Start Manual

Vanatoo transparent one
powered speakers

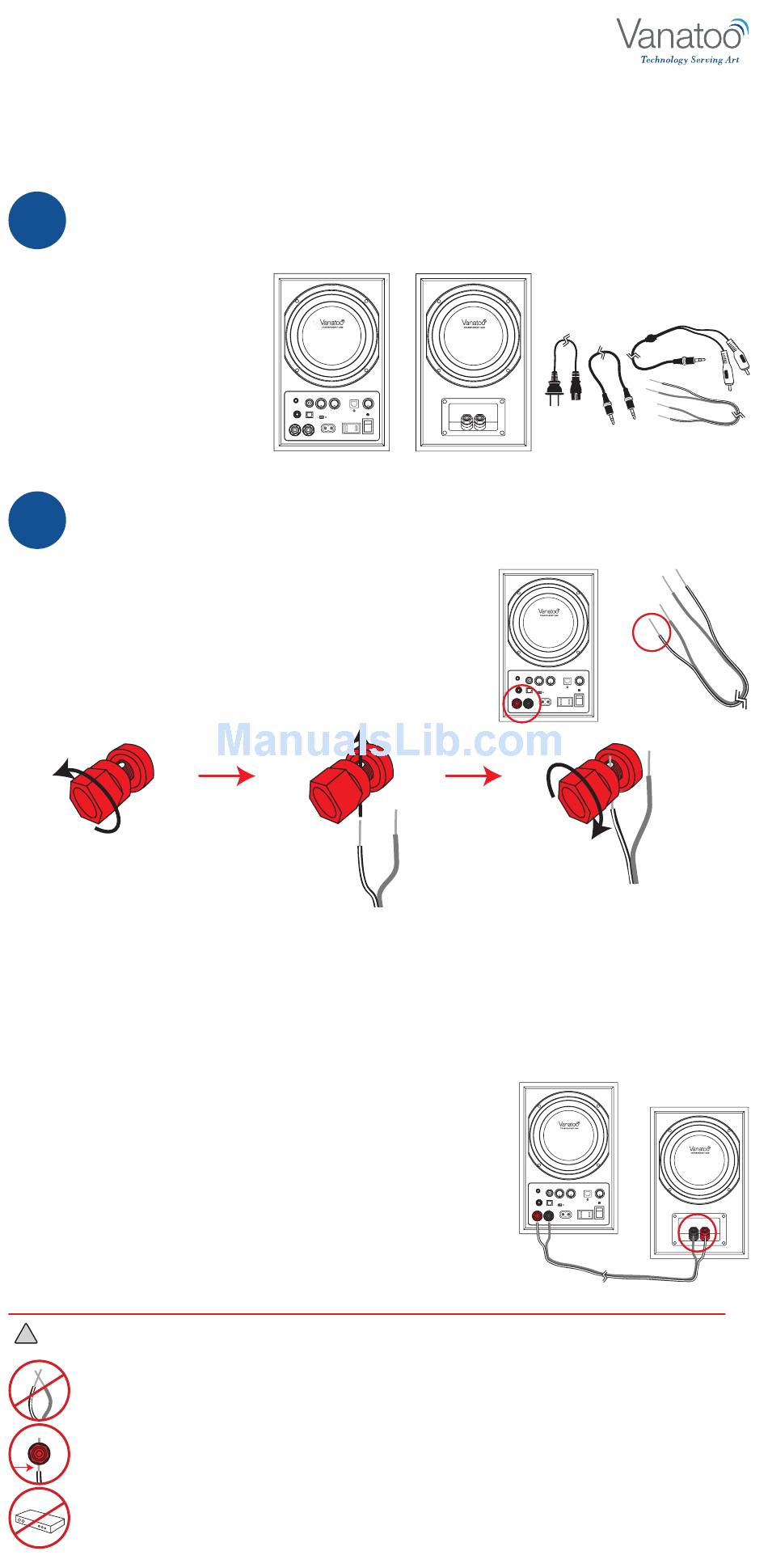

Quick Start Guide
1

Unpack your system

1. Active speaker
2. Passive speaker
3. AC power cable
4. 3.5 mm to 3.5 mm cable
5. 3.5 mm to RCA "Y" cable
6. Speaker wire
2

Connect the speaker wire

Connect the speaker wire to the active speaker
1. Locate the red and black terminals on the active
speaker.
2. Locate the length of speaker wire with the white stripe.
3. Connect the wire with the white stripe to the red terminal:
Turn screw cap counter
clockwise until the hole in the
inside post is fully visible.
4. Connect the wire with the unmarked insulation (no white stripe) to the black terminal
using the same process.
Connect the other end of the speaker wire to the passive
speaker
1. Locate the red and black terminals on the passive speaker.
2. Repeat the steps performed on the active speaker. Make sure
terminals of the same color are connected using wires with
the same marking (e.g. striped wire on the red terminals,
and non-striped wire on the black terminals).
!
WARNINGS
To prevent the possibility of shorting the terminals, make sure the exposed sections of
speaker wire do not touch during installation or operation.
When tightening the speaker terminal screw caps, make sure that only the exposed
speaker wire is clamped between. This will create a secure working connection.
The speaker terminals on the active speaker are OUTPUTS. DO NOT connect the
output terminal of a stereo amplifier to these terminals.
™
1
Thread the exposed wire
through the hole until the top
of the wire clears the hole.
It might be easier to thread
upwards from the bottom.
2
3
4
1
Hold the wire in place, and
with your other hand, turn the
screw cap clockwise to tighten
the screw cap back down until
the wire is securely in place.
™
5
6
2
1
2
TURN OVER
