VANATOO TRANSPARENT ZERO
™
POWERED SPEAKERS
Quick Start Guide
1
Unpack Your System

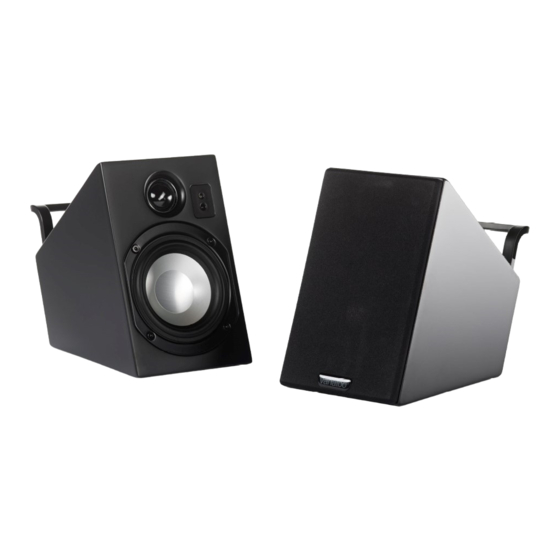

1) Active speaker
2) Passive speaker
3) AC power adapter
4) IR remote control
5) Pair of speaker grills
6) Pair of speaker pads
7) 3.5mm to 3.5mm cable
2
Pick Your Speaker Locations
Speakers sound best when they point toward your ears. The T0 has
been designed to make this easy, whether used on a desk or in a room.
The support is optional for desktop usage, but we recommend
leaving it installed if you have space to improve portability. For spaced
constrained applications the supplied 2.5mm Allen wrench can be used
to remove the support. The support can also be moved to the other side
of the cabinet, as the T0 works with the passive radiator facing either up
or down. Note that when the passive radiator faces down the support
must face down too; the speaker cannot be allowed to rest on the
passive radiator.
Desktop Usage
Place the speakers on the supplied pads with the supports and
passive radiators facing up. Position the active speaker with the
connections on the right side of your seated position (this can be
changed in software). Try to get your speakers at equal distance
on each side.
In-Room Usage
Place the speakers on the supplied pads with the supports and
passive radiators facing down. Position the active speaker with
the connections on the right side of your listening position (this
can be changed in software). Ideally your speakers should be at
equal distance from your best listening position on each side, and
approximately at ear level when you are seated.
3

Connect the Speakers

The included speaker interconnect cable with modular RJ50
connectors makes this a "snap"!
™
8) 3.5mm to RCA "Y" cable
9) USB A to USB B cable
10) RJ50 speaker
interconnect cable
11) 2.5mm Allen wrench
12) This Quick Start Guide
3
1
2
4
5
7
8
6
Passive radiator
Support
™
9
10
11
