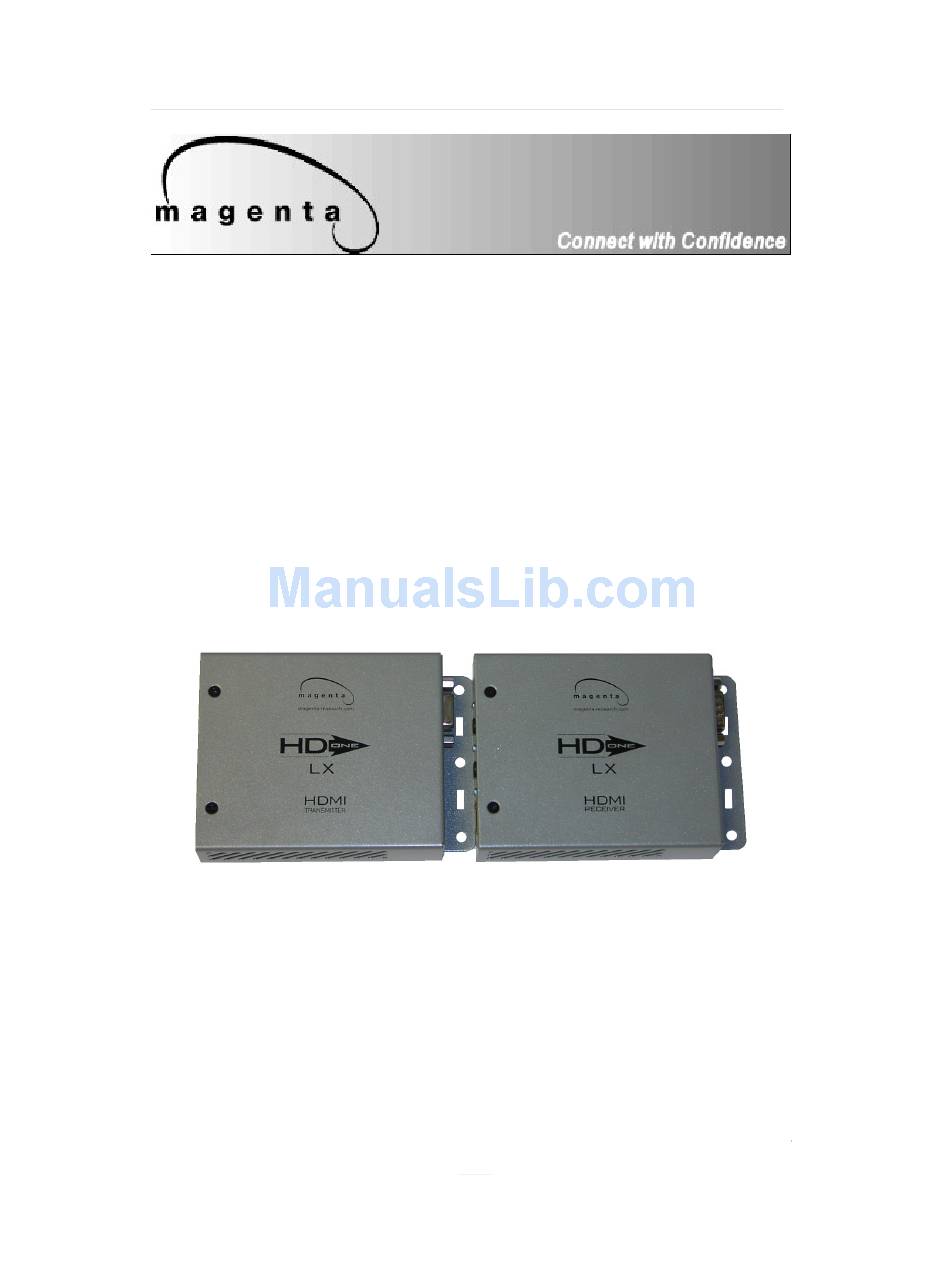

Page 1: Setup Guide
HD1-LX HDMI & IR Extender Quick Reference & Setup Guide Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com... - Page 2 128 Litchfield Rd New Milford, CT. 06776 USA This document and the Magenta Research products to which it relates, and the copyright in each, is the property of Magenta Research. Neither the document nor the products may be reproduced by any means, in whole or in part, without the prior written permission of Magenta Research.
-
Page 3: Specifications
Specifications 1. Specifications Required Cable: Cat5, CAT5e, Cat6, CAT6e, Cat7, UTP / STP or FTP (Cat 6 or better recommended) Video Support: HDMI 1.3, HDCP Compliant DVI Video modes Maximum Resolution and Refresh Rate: 1080p (1920x1080) @ 60 Hz Bandwidth: 3.4 Gbps Serial Baud rate: Up to 115200 bps;... - Page 4 2.3 Compatible Cabling Magenta Research products are compatible with CAT 5e/5/6e/6/7 data cabling. Category cabling for the Magenta HD1-LX Series must be pinned to the TIA-EIA T568B wiring specification (see appendix A) We also highly recommend that all Category cables be pre-terminated and tested. Cables terminated on-site or in an existing infrastructure should be tested before use to ensure compliance with the TIA-EIA T568B specification.
-
Page 5: Setup And Installation
NOTE: All HD1-LX units should be cabled and powered on prior to turning on the video source device and display. It is recommended to connect the cable/power on the HD1-LX units, then the display, and lastly the video source. - Page 6 MAGENTA HD1-LX HDMI & IR EXTENDER 3.2.2 C HD1-LX ONNECTIONS ON THE Figure 3-1 shows the HD1-LX transmitter connections, and Figure 3-2 shows the HD1-LX receiver connections. Power RS-232 IR Receiver IR Emitter UTP OUT HDMI Input Figure 3-1. Connections on the Transmitter...
-
Page 7: Troubleshooting
4.1 Common Problems THERE ARE NO USER CONFIGURABLE SETTINGS FOR HD1-LX UNITS In most cases, nearly every issue with the HD1-LX Series can be resolved by checking the Category cable termination and making sure that it’s pinned to the T568B wiring specification. - Page 8 MAGENTA HD1-LX HDMI & IR EXTENDER Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com PN: 5310250-01, Rev 02, 12/10...
