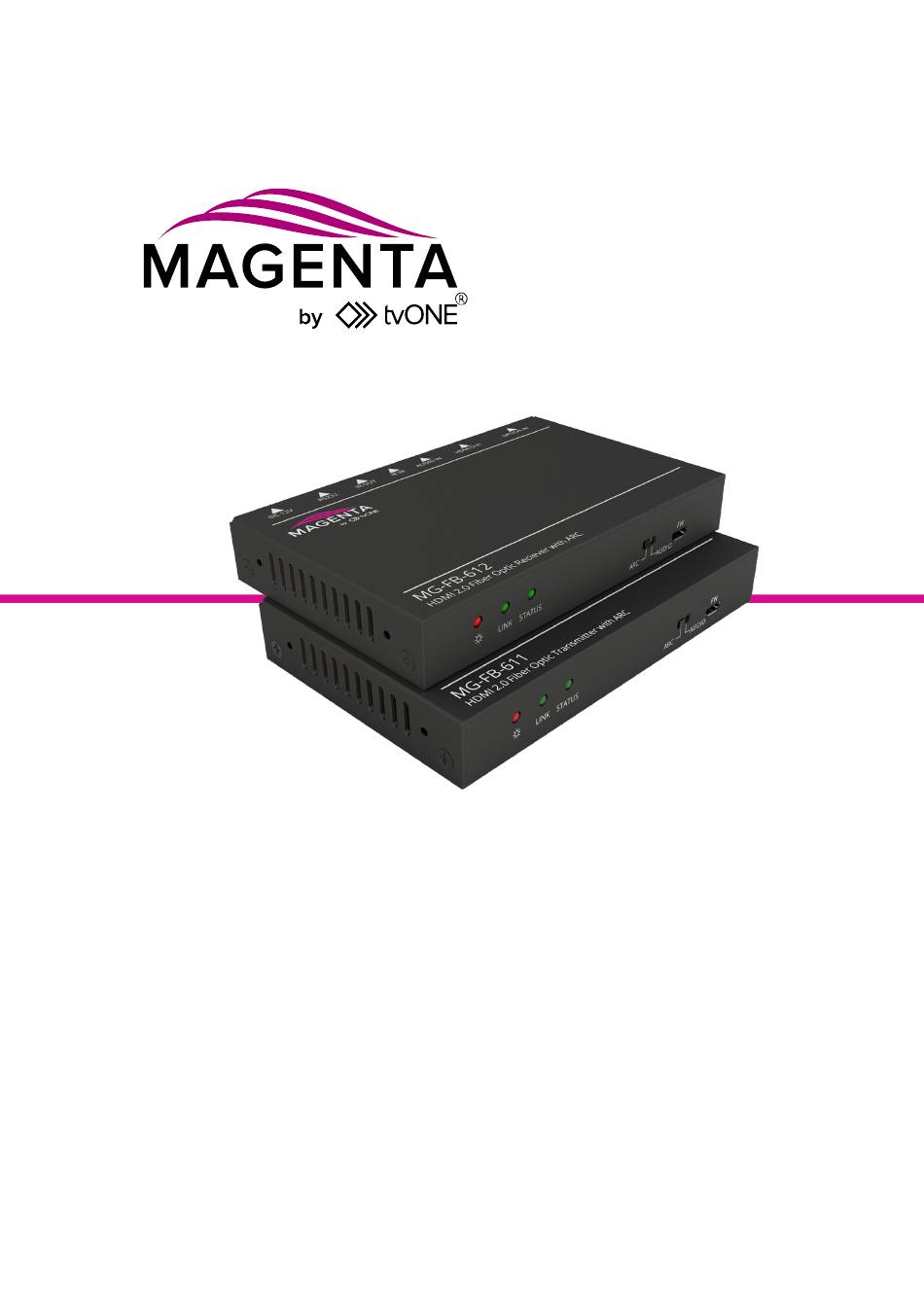

- Page 1 MG-FB-61x HDMI™ Fiber Optical Extender Kit User Guide V1.00 MNL-MG-FB-61x-V1.00 Aug 2019...
-
Page 2: Table Of Contents
In this guide About your Magenta™ MG-FB-61x kit Choosing a mode for routing audio Quick start Troubleshooting Contact us... -
Page 3: About Your Magenta™ Mg-Fb-61X Kit
About your Magenta™ MG-FB-61x kit Thanks for buying this Magenta MG-FB-61x kit from tvONE™. The MG-FB- 61x kit includes a transmitter and a receiver to extend your 4Kx2K @60 Hz signal up to 300 m (984 ft). The MG-FB-61x kit supports: Single and multi-mode LC connected fiber 4K @60 Hz Dolby Vision HDMI™... -
Page 4: Transmitter Rear Panel
Transmitter rear panel OPTICAL OUT Connect to OPTICAL IN, BA on the receiver with LC connected fiber optic cable. HDMI IN Connect to a source. AUDIO OUT Connect to an audio broadcast device with an optical audio cable, for example, TOSLINK. IR IN Connect an IR receiver with a carrier. - Page 5 Receiver front panel When the LED is lit, power is on. LINK When the LED is lit, the transmitter and receiver are successfully linked. STATUS When the LED is lit, signal data is transmitted between the transmitter and receiver. ARC, Select an audio mode.
-
Page 6: Receiver Rear Panel
Receiver rear panel OPTICAL IN Connect to AB on the transmitter with LC connected fiber optic cable. HDMI OUT Connect to a display. AUDIO IN Audio in. Connect to an audio device with an optical audio cable, for example, TOSLINK. Note: this is for separate audio devices and displays that do not support ARC only. -
Page 7: Choosing A Mode For Routing Audio
Choosing a mode for routing audio The MG-FB-61x kit has four modes for routing audio. The mode you choose depends on where your audio is generated, where it plays, the types of devices you use, and whether those devices support Audio Return Channel (ARC). - Page 8 device. You might want to choose this option if you want to play audio from a separate device connected to the receiver on an audio device connected to your source. In this example, your source might be an amplifier with HDMI in and audio out.
-
Page 9: Quick Start
Quick start 1. Connect OPTICAL IN on the receiver to OPTICAL OUT on the transmitter with LC connected fiber optic cables. 2. Connect an amplifier to HDMI IN on the transmitter. 3. Connect an HDMI source and speaker to the amplifier. 4. Connect a display device to HDMI OUT on the receiver. 5. -
Page 10: Troubleshooting
Troubleshooting The image is desaturated or appears doubled The optical fiber cable is poor quality. Make sure you use OM3 or OM4 optical fiber cable. Nothing is working and the LED is not lit The power adapter isn't connected properly or is switched off at the outlet. -
Page 12: Contact Us
Contact us tvone.com info@tvone.com Support NCSA: tech.usa@tvone.com Support EMEA: tech.europe@tvone.com Support Asia: tech.asia@tvone.com Information in this document is subject to change without notice. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser's personal use without the written permission of tvONE.
