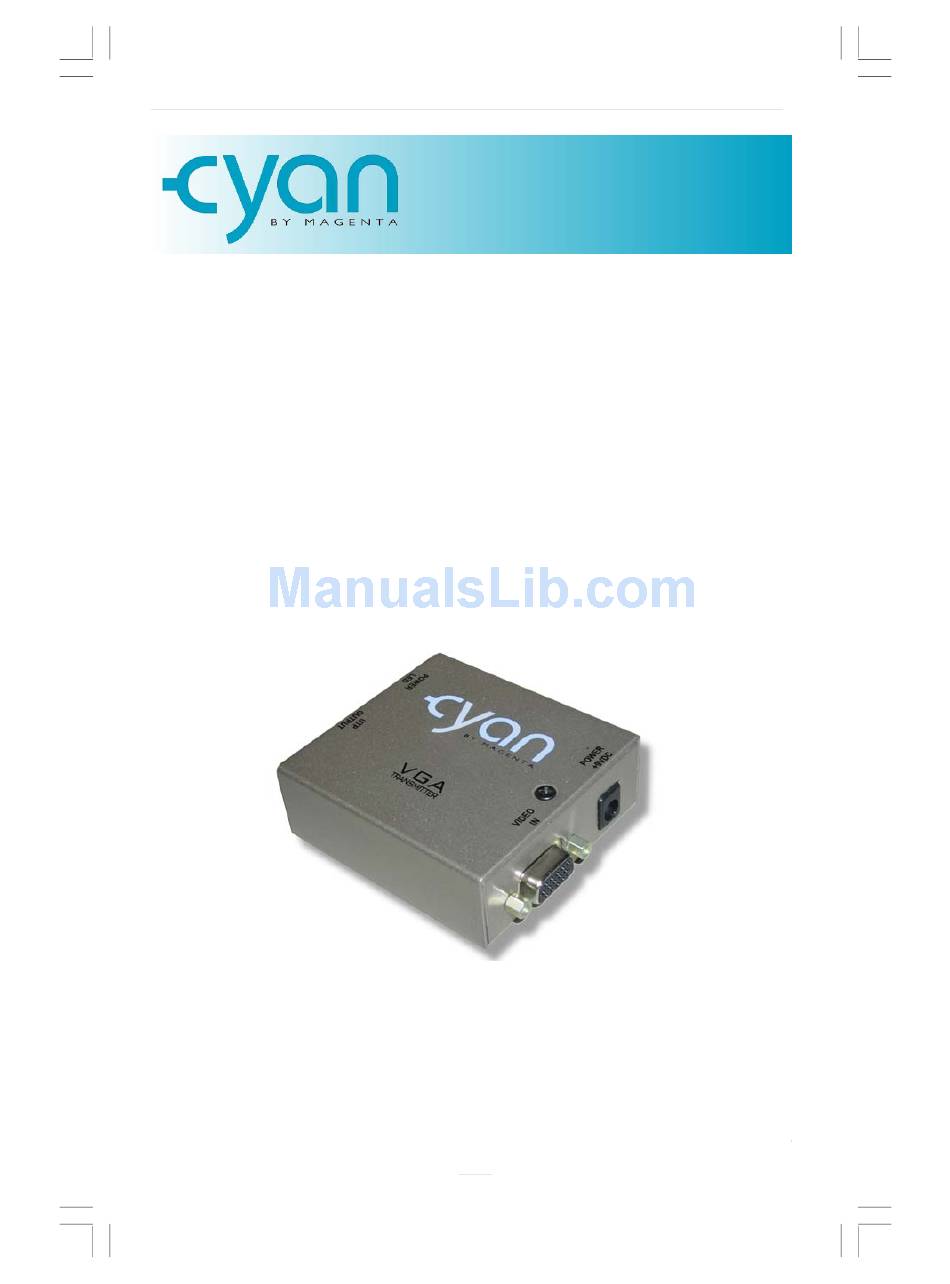

- Page 1 VGA Video Extender Quick Reference & Setup Guide...
-
Page 2: Table Of Contents
128 Litchfield Rd New Milford, CT. 06776 USA This document and the Magenta Research products to which it relates, and the copyright in each, is the property of Magenta Research. Neither the document nor the products may be reproduced by any means, in whole or in part, without the prior written permission of Magenta Research. -
Page 3: Specifications
Specifications 1.Specifications Cable Required: Category 5, 5e, 6 twisted pair (UTP) Maximum Distance: 250 ft (76m) Video Support: RGBHV (All VESA modes to UXGA) Video Resolution: Up to 1600x1200 Connectors: Tx: (1) DB15 , (1) RJ-45, (1) power Rx: (1) DB15 , (1) RJ-45 Temperature Tolerance: Operating: 32 to 104°F (0 to 40°C);... -
Page 4: Introduction
CYAN VGA VIDEO EXTENDER 2. Introduction 2.1 Overview The Cyan VGA Video extenders extend VGA video signals over Category 5/5e/6 cable. WARNING This equipment is not intended for, nor does it support, distribution through an Ethernet network. Do not connect these devices to any sort of networking or telecommunications equipment! 2.2 Equipment You May Also Need •... -
Page 5: Setup And Installation
CHAPTER 3: SETUP & INSTALLATION 3. Setup and Installation 3.1 Making the Connections 3.1.1 CONNECTIONS AND SETUP IN GENERAL This section contains figures showing connections with the specific Cyan Extenders. In general the connection and setup procedure at both transmitter and receiver ends is as follows: At the sender end: 1. -
Page 6: Troubleshooting
CYAN VGA VIDEO EXTENDER 4. Troubleshooting 4.1 Common Problems In most cases, nearly every issue with the Cyan Extenders can be resolved by checking the CAT5/5e/6 termination and making sure that it’s pinned to the T568B wiring specification. However, there may be other problems that cause the system to not perform as it’s designed. -
Page 7: Appendix A. Cabling Pinouts
APPENDIX A Appendix A. Cabling Pinouts Table A-1. T568B CAT5 pinout... - Page 8 CYAN VGA VIDEO EXTENDER Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com PN: 5310225-01, Rev 01, 2/09...
