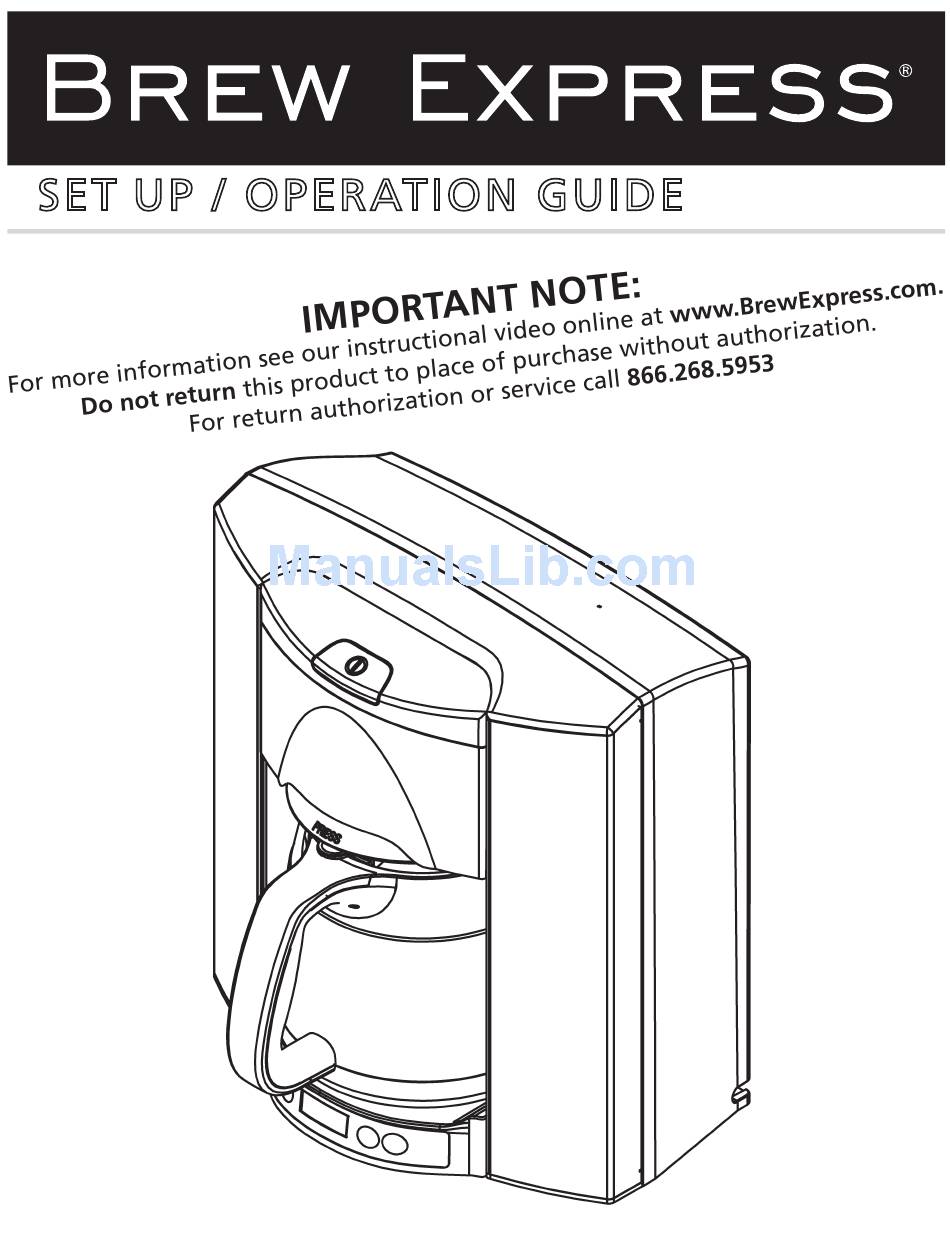

- Page 1 SET UP / OPERATION GUIDE BEC-110 model no.
-
Page 2: Table Of Contents
CON T EN TS 1. Safety 2. Specifications & Requirements 3. Hardware/Tools/Parts 4. Set Up 4 -6 5. Features 6. Control Functions 7. Start Up 8. Operation 10-11 9. Maintenance 10. Troubleshooting 13-15 11. Parts & Service 12. Warranty Information 16-17... -
Page 3: Safety
SAFETY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all Instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. The voltage and frequency of the supply connections should conform to those of the rating label. 4. -
Page 4: Safety
Please read and follow instructions carefully before starting your BREW EXPRESS COFFEE SYSTEM. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE. -
Page 5: Specifications & Requirements
SPECIFICATIONS AND REQUIREMENTS BEC-110 SPECIFICATIONS: Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional. Overall Dimensions 12 1/4” X 13 1/2” X 7 3/4” (see below). -
Page 6: Hardware/Tools/Parts
HARDWARE/TOOLS/PARTS HARDWARE/TOOLS/PARTS BREW EXPRESS comes with the following items to ensure a successful setup. Check to be certain all items have been included with your brewer. • Brewer • Carafe and lid (Lid is located on side of foam packaging or in brew basket) • Brew baskets (1 basket style, 1 cone style) • Setup/Operation guide • Hardware kit (includes quick connector) • 10’ water line • Under sink faucet connection • “T” connection for refrigerator TOOLS •... -
Page 7: Set Up
DO NOT connect directly to ice maker line located on refrigerator. B. If connecting to refrigerator supply Brew Express provides a ¼” T to connect to the ¼” line. Sometimes this supply line may be a compression braided line. If so, it may require additional parts (not supplied). Please contact Brew Express for advice, or additional notes below Option #2. - Page 8 This ensures the connection is completed. •To release connection, press grey tab on connector. cord recess grey recess tab quick connector water line 6. Connect Power compression nut Plug the power cord into an outlet. Excess cord can be stored in the grey tab on the back of the Brew Express.
-
Page 9: Features
FEATURES Convenient and practical. Brew Express™ is plumbed into the wall and fills on command so you never have to manually Handsome Euro design fill with water. compliments any decor. Power Switch Patented in-the-wall design saves precious counter space. Unique brew basket allows for removal of carafe without spilling. -
Page 10: Control Functions
CONTROL FUNCTIONS Display Panel Brew Button Starts brew cycle. Brewing stops automatically or by pressing the brew button again. Status Light Green (steady) – wait mode Red (steady) – brew mode Red (slow blinking) – carafe or mug not detected Red (fast blinking) –... -
Page 11: Start Up
Debris in water lines can clog brewer system causing failure, and VOID ALL WARRANTIES. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE. -
Page 12: Operation
5. Position Carafe or Mug Position an EMPTY carafe or mug in the BREW EXPRESS under the brew basket. The detection sensor will not allow the brewer to operate unless the carafe or mug is positioned under the brew basket. The brew light will blink if nothing is detected. -
Page 13: Operation
Press “Light” button to finish time setting to lock memory before clock flashing ends. 9. Pause-N-Brew Feature The BREW EXPRESS carafe can be removed during brew cycle to pour a cup of coffee. The detection sensor will stop the flow of water and the valve on the brew basket will prevent existing water from spilling. Once carafe is returned, operation will continue. If carafe is missing for over 5 minutes, BREW EXPRESS will shut off automatically. -
Page 14: Maintenance
MAINTENANCE Cleaning Carafe Clean the carafe and lid after each use with warm water and a mild dish soap. Brew Basket The brew basket should also be cleaned after each use with mild dish soap and warm water. The brew basket is dishwasher safe (top rack only). Spray Head It is recommended the spray head be cleaned occasionally with mild soap and warm water depending on the amount of use. -
Page 15: Troubleshooting
– RRA. Water does not flow from spray head • The BREW EXPRESS preheats the water before starting the brew cycle. You may be waiting for the preheat cycle to end. • Confirm the carafe or mug is centered under the brew basket. BREW EXPRESS will not start if the detection sensor does not see a carafe or mug. - Page 16 TROUBLESHOOTING Excessive Steam • Remove spray-head and check for calcium blockage. Unit may be plugging up from debris or calcium • IF newer unit, check the temperature program bypass switch located on rear of machine by the cord storage. If “OFF” then turn to “ON” position. This will cool unit down slightly. • Call or email for service. bypass switch Taste Not Acceptable Quality or quantity of coffee placed in brew basket is not sufficient (purchase better quality coffee). • • Adjust coarseness of coffee grind. • Spray head is plugged and water is boring hole in grounds (clean or replace spray head). • Check temperature inside of a full carafe of water. It is possible heating system is not working properly. Coffee temperature cold or lukewarm • Carafe not keeping coffee hot enough. If using 2 cup or 1/2 carafe setting, consider pre-heating it with hot water before brewing. • Water flow rate too high or heater failed, call customer service. • If still not hot enough, look on rear of machine inside the cord storage area. A button is available to push that will provide a temperature bypass of the standard temperature programming. This will increase temperature slightly. If there is too much steam, please remember to turn off switch otherwise.
-
Page 17: Parts & Service
• Debris may be inside valve. Disconnect water and reconnect, then run 1-2 full cycles of water in carafe. If problem persists, contact customer service. Programmed start time not working properly • Review instructions on page 6 (Automatic Brew Cycle). Spare parts are available from Brew Express (866) 268-5953 or at Info@BrewExpressDirect.com. Contact Brew Express for all service and warranty issues. • Spray head •... -
Page 18: Warranty Information
There is no other warranty, other than that described herein. BREW EXPRESS is warranted, to the original purchaser only, to be free of defects for parts and labor for a period of 1 year from the date of purchase. This warranty does not extend to subsequent purchasers, or purchases through a non-authorized dealer or auction site. Brew Express will not be held responsible for any amount of damage in excess of the... - Page 19 WARRANTY Register for warranty Fill out the form below, cut out and send to: Brew Express PO Box 1726 Longview, WA 98632 Please Register 30 days after purchase. Retain receipt for proof of purchase. Name: Address: Phone: Email (Optional): Model #:...
- Page 20 (866)-268-5953 Printed in CHINA. BEC110 OG / 123108 © Brew Express 2014...
