Brew Express BE-104 Operation Manual

Hide thumbs Also See for BE-104:
Table of Contents

Advertisement

Quick Links

OPERATION GUIDE
BE-104 & BE-110
model no.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE-104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brew Express BE-104

Summary of Contents for Brew Express BE-104

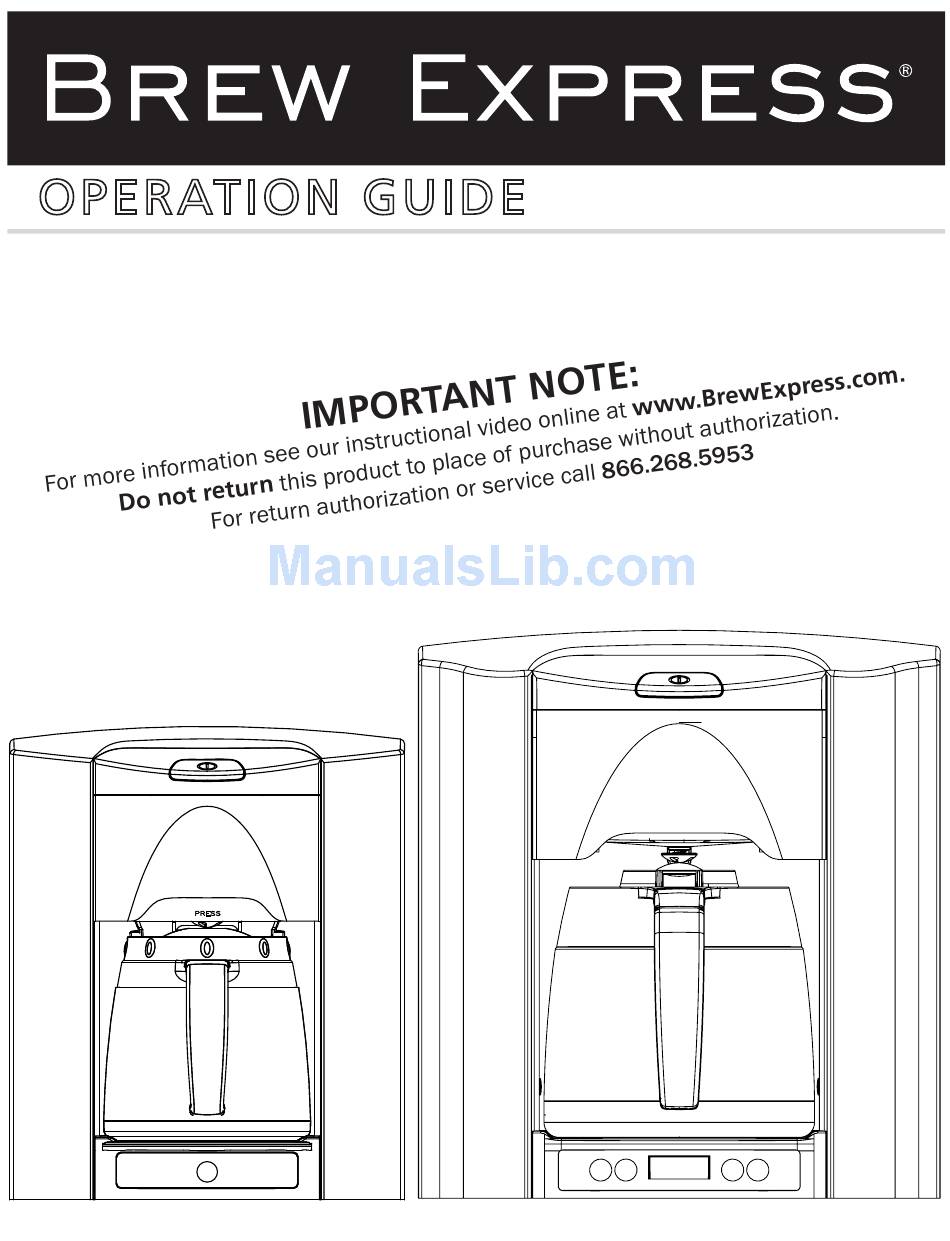

  • Page 1 OPERATION GUIDE BE-104 & BE-110 model no.

  • Page 2: Table Of Contents

    CON T EN TS 1. Safety 2. Features 3. Controller Functions 4. Start Up 5. Operation 6 - 7 6. Maintenance 7. Troubleshooting 9 - 11 8. Parts & Service 10. Warranty Information...

  • Page 3: Safety

    SAFETY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all Instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. The voltage and frequency of the supply connections should conform to those of the rating label. 4.

  • Page 4: Safety

    Please read and follow instructions carefully before starting your BREW EXPRESS in-the-wall COFFEE SYSTEM. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE.

  • Page 5: Features

    FEATURES...

  • Page 6: Controller Functions

    Adjustable Cup Selector Selects the amount of water to be used during brew cycle: BE-104 - 2 cup/1 mug (8 oz), 4 cup (18 oz)* BE-110 - 2 cup (8 oz), 1/2 carafe (23 oz), full carafe (45 oz)* * volumes my vary slightly Clock Continuously displays current time and is used for setting automatic brew time.

  • Page 7: Start Up

    Debris in water lines can clog brewer system causing failure, and VOID ALL WARRANTIES. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE.

  • Page 8: Operation

    5. Position Carafe or Mug Position an EMPTY carafe or mug in the BREW EXPRESS under the brew basket. The detection sensor will not allow the brewer to operate unless the carafe or mug is positioned under the brew basket. The brew light will blink if nothing is detected.

  • Page 9: Operation

    Press “Light” button to finish time setting to lock memory before clock flashing ends. 9. Pause-N-Brew Feature The BREW EXPRESS carafe can be removed during brew cycle to pour a cup of coffee. The detection sensor will stop the flow of water and the valve on the brew basket will prevent existing water from spilling. Once carafe is returned, operation will continue. If carafe is missing for over 5 minutes, BREW EXPRESS will shut off automatically.

  • Page 10: Maintenance

    MAINTENANCE Cleaning Carafe Clean the carafe and lid after each use with warm water and a mild dish soap. Brew Basket The brew basket should also be cleaned after each use with mild dish soap and warm water. The brew basket is dishwasher safe (top rack only). Spray Head It is recommended the spray head be cleaned occasionally with mild soap and warm water depending on the amount of use.

  • Page 11: Troubleshooting

    RRA. Water does not flow from spray head The BREW EXPRESS preheats the water before starting the brew cycle. You may be waiting for the preheat • cycle to end.
  • Page 12 TROUBLESHOOTING Water overflow from brew basket • Paper filter is not high enough and grounds are flowing over and plugging brew basket (Bunn brand works well). • Grind of coffee may be too fine, try a coarser grind. Excessive Steam • Remove spray-head and check for calcium blockage. Unit may be plugging up from debris or calcium • IF newer unit, check the temperature program bypass switch located on rear of machine by the cord storage. If “OFF” then turn to “ON” position. This will cool unit down slightly. bypass switch Taste Not Acceptable •...

  • Page 13: Parts & Service

    If problem persists, contact customer service. Programmed start time not working properly • Review instructions on page 6 (Automatic Brew Cycle). PARTS & SERVICE Spare parts are available from Brew Express (866) 268-5953 or Info@BrewExpressDirect.com Contact Brew Express for all service and warranty issues. • Spray head •...
  • Page 14 There is no other warranty, other than that described herein. BREW EXPRESS is warranted, to the original purchaser only, to be free of defects for parts and labor for a period of 1 year from the date of purchase. This warranty does not extend to subsequent purchasers, or purchases through a non-authorized dealer or auction site.

  • Page 15: Warranty Information

    WARRANTY Register for warranty online at http://www.BrewExpress.com or Fill out the form below, cut out and send to: Brew Express P.O. Box 1726 Longview, WA 98632. Please Register 30 days after purchase. Retain receipt for proof of purchase. Name: Address:...
  • Page 16 (866)-268-5953 Printed in CHINA. BE104& BE110 OG/1008 © BREW EXPRESS 2014...

This manual is also suitable for:

Be-110Be-104rBe-104cBec-110
